Traditional House Plan 036-00016

Sq Ft1,302
1/2 Baths0
Width50' 0"
Depth39' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

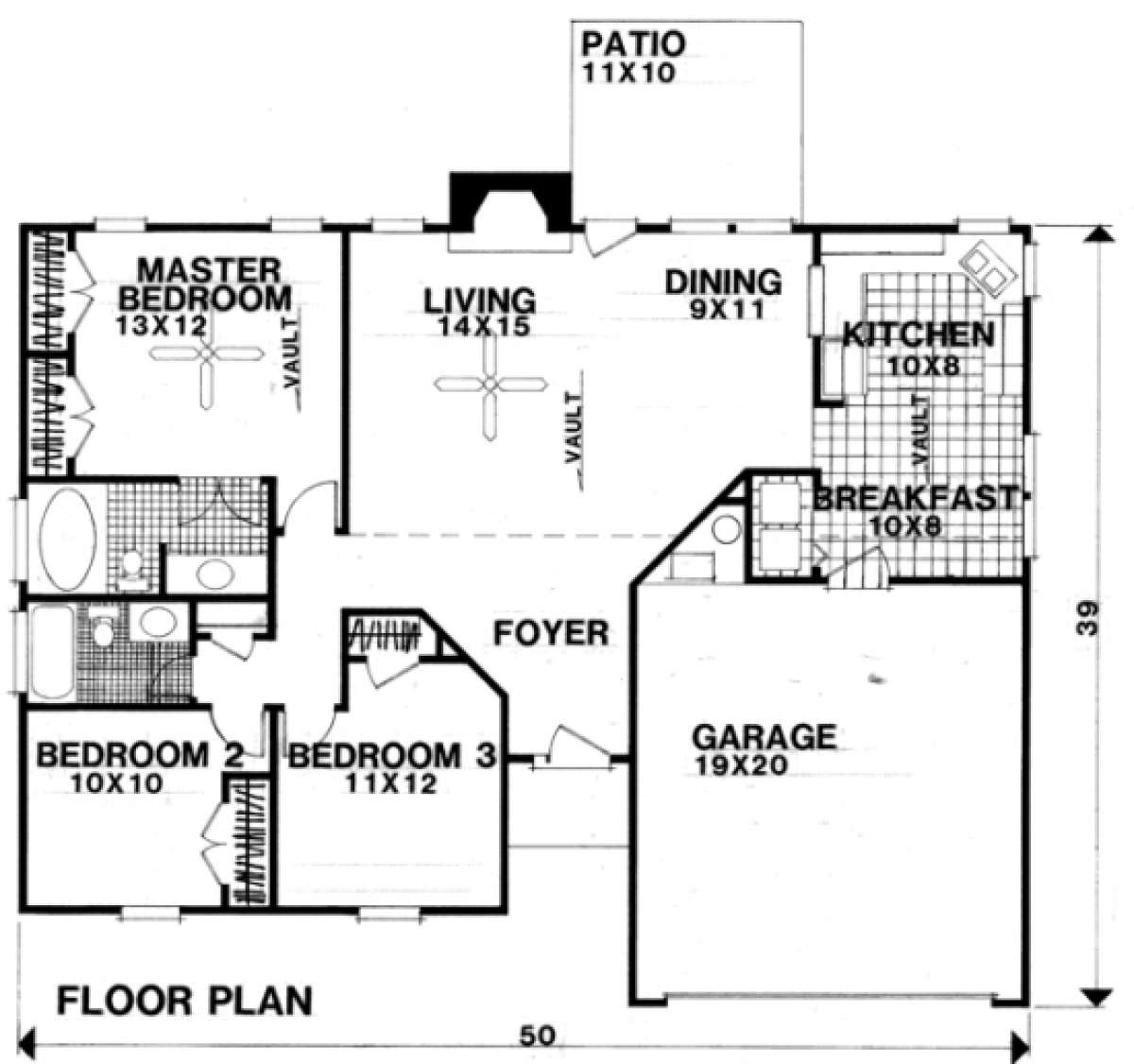

Floorplan for House Plan #036-00016
Floorplan for House Plan #036-00016

Frequently Asked Questions


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This attractive ranch has a brick and siding exterior and is dramatic with its use of vaulted ceilings found in many of the home’s living spaces. The spacious foyer provides entry into the open living room and dining room, is vaulted and includes a fireplace and rear access to the patio. The breakfast room and kitchen are well-appointed with a corner double sink with two window views and a vaulted ceiling. The two car garage leads into the breakfast room where the W/D is conveniently tucked away. The three bedrooms are located on one side of the home and include two bedrooms with generous closets and a shared hall bath. The master suite includes a vaulted master bedroom, two spacious closets and a master bath which is highlighted by a large garden tub. This house plan is compact, design friendly and attractively appointed and provides the ideal home for a small family.
