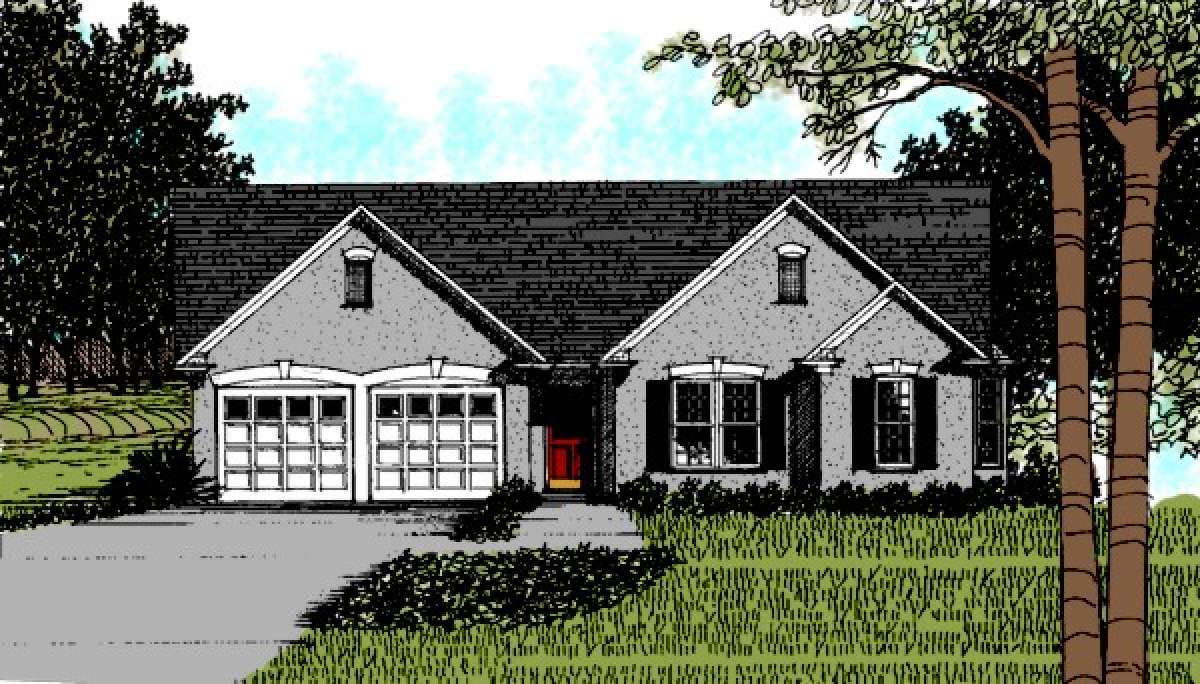

Ranch House Plan #036-00014 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,387

Beds 3

Bath 2

1/2 Baths 0

Car 2

Stories 1

Width 46'

Depth 42'

See What's Included

Select Package

PDF (Single Build)

$1,195.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$2,695.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$1,245.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

8 Sets (Single Build)

$1,295.00

PHYSICAL FORMAT
Eight printed sets of working drawings mailed to you. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,595.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Unlimited Build)

$3,095.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files by a design professional.

Select Foundation

Slab Foundation $0.00

Crawlspace Foundation $350.00

Basement Foundation $350.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $60.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $295.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x6 Conversion $350.00

Convert the exterior framing to 2x6 walls.

Material List $295.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

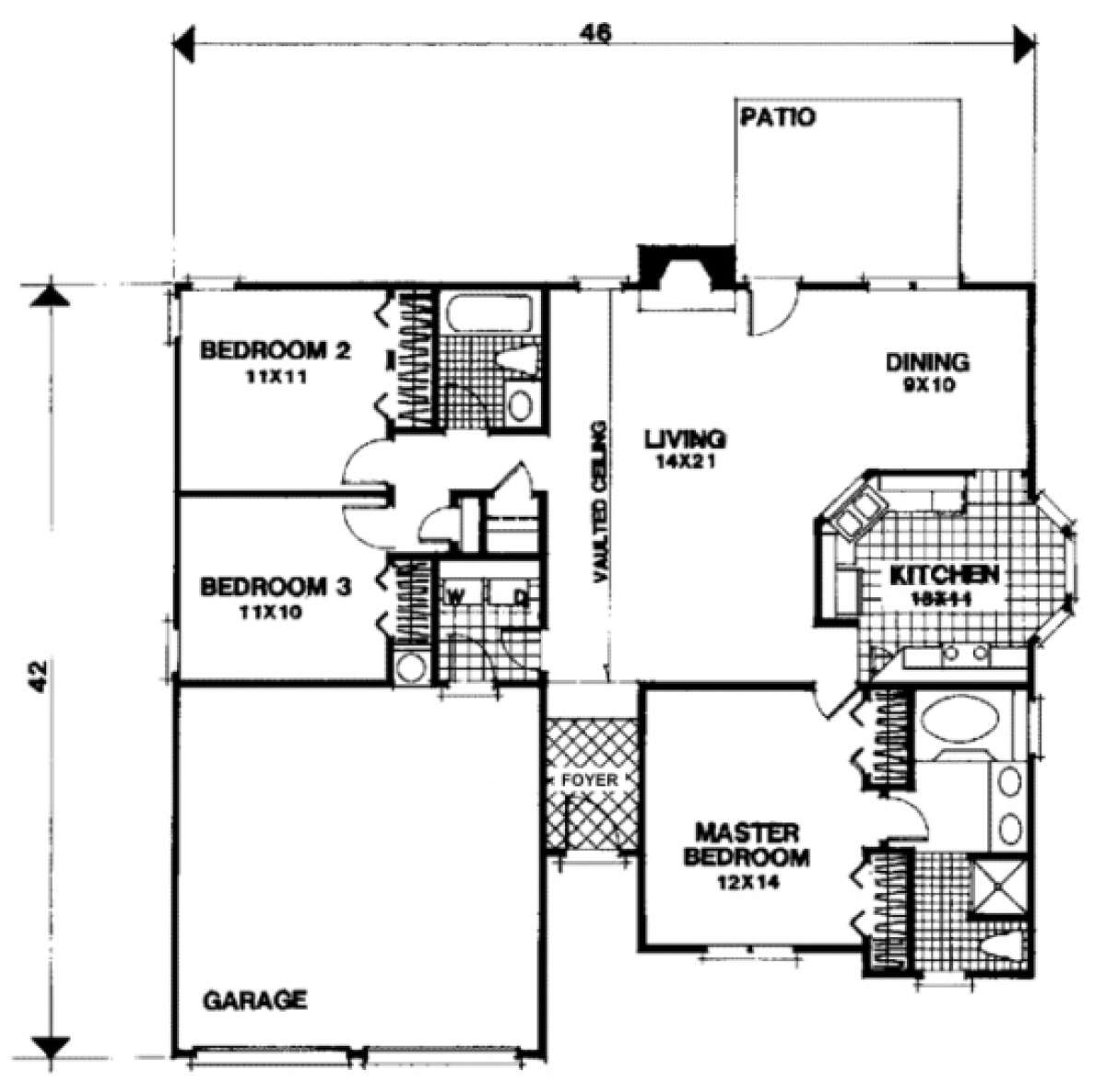

Floorplan

Images copyrighted by the designer.

What's Included in these plans?

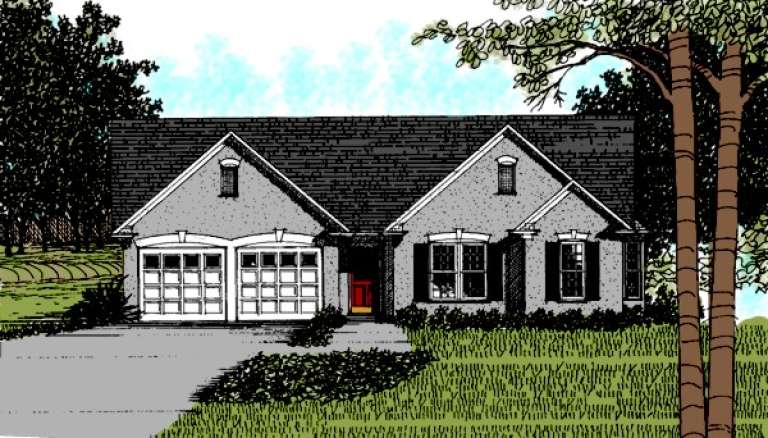

Artist Rendering
Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
Floor Plans: Scale: 1/4"=1'
Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
Roof Plan: Scale: Either 1/4" or 1/8"=1'
Building Sections: Included with most plan sets
Wall Sections: Included with all plans in Detail Sheet Package
General Notes and Details: Included with all plans in Detail Sheet Package

Ask Us A Question

About This Plan

This traditional ranch is designed for excellent traffic flow with its use of open spaces including the large living room with vaulted ceiling, fireplace and rear access to the patio. The dining room is open to the family room and leads into the bright, airy kitchen with a bay window feature further opening up the room. The kitchen is a generous size and contains all the modern conveniences you have come to expect. The master suite is located on side of the home for privacy and includes a large bedroom, generous closets and a master bath that contains dual vanities, a separate shower and a garden tub. Two additional bedrooms are located on the other side of the home and include large closets and a shared hall bath. The two car garage leads into the home where the utility room is located for convenience. This home is ideal for a starter home, empty nesters or a small family.
