Craftsman Garage Plan 035-00761

What's Included in these plans?

• Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:

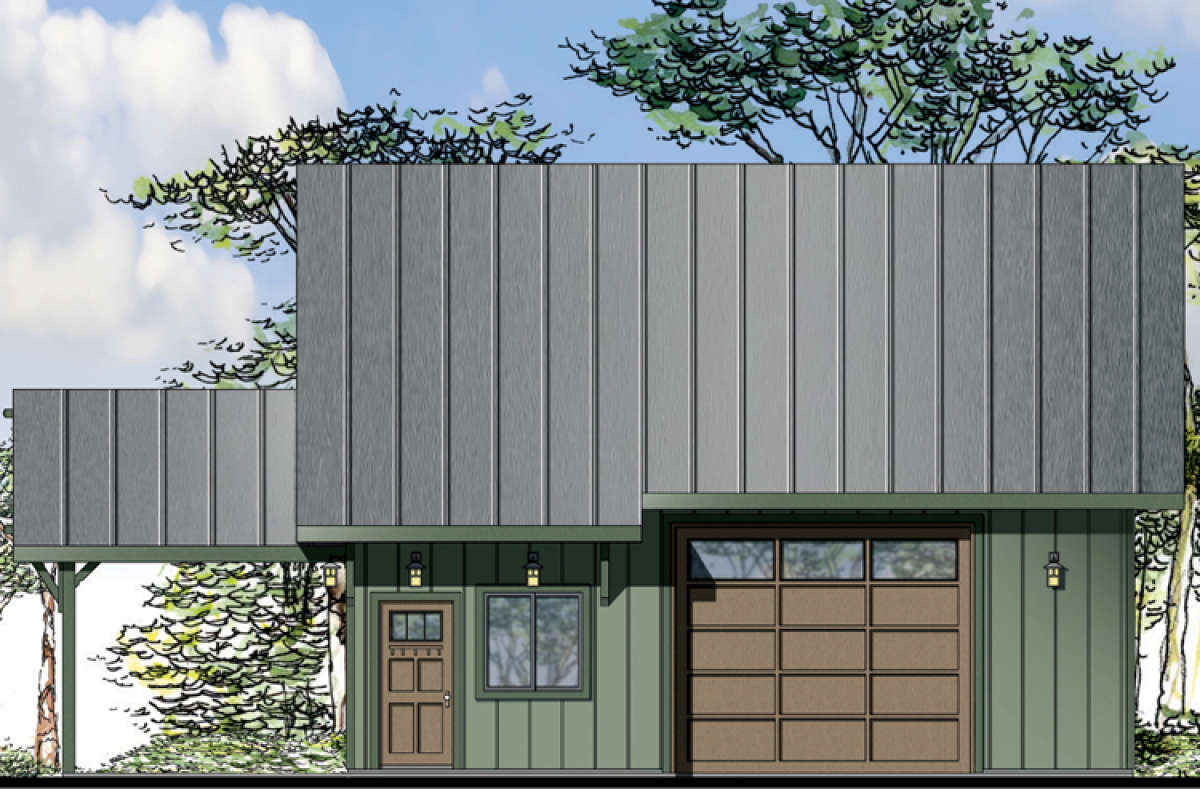

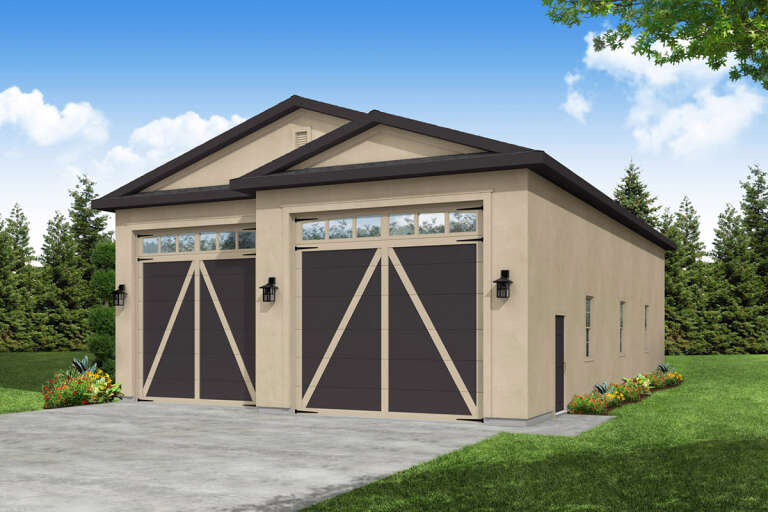

• Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.

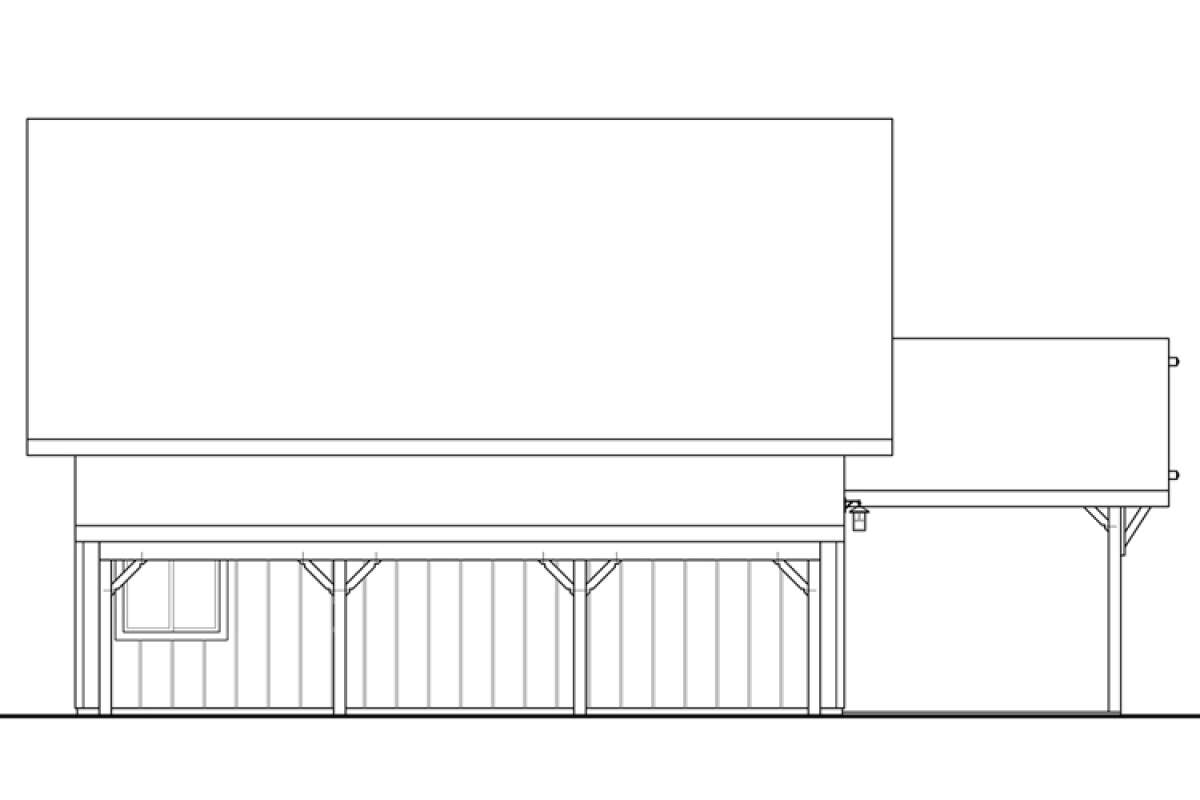

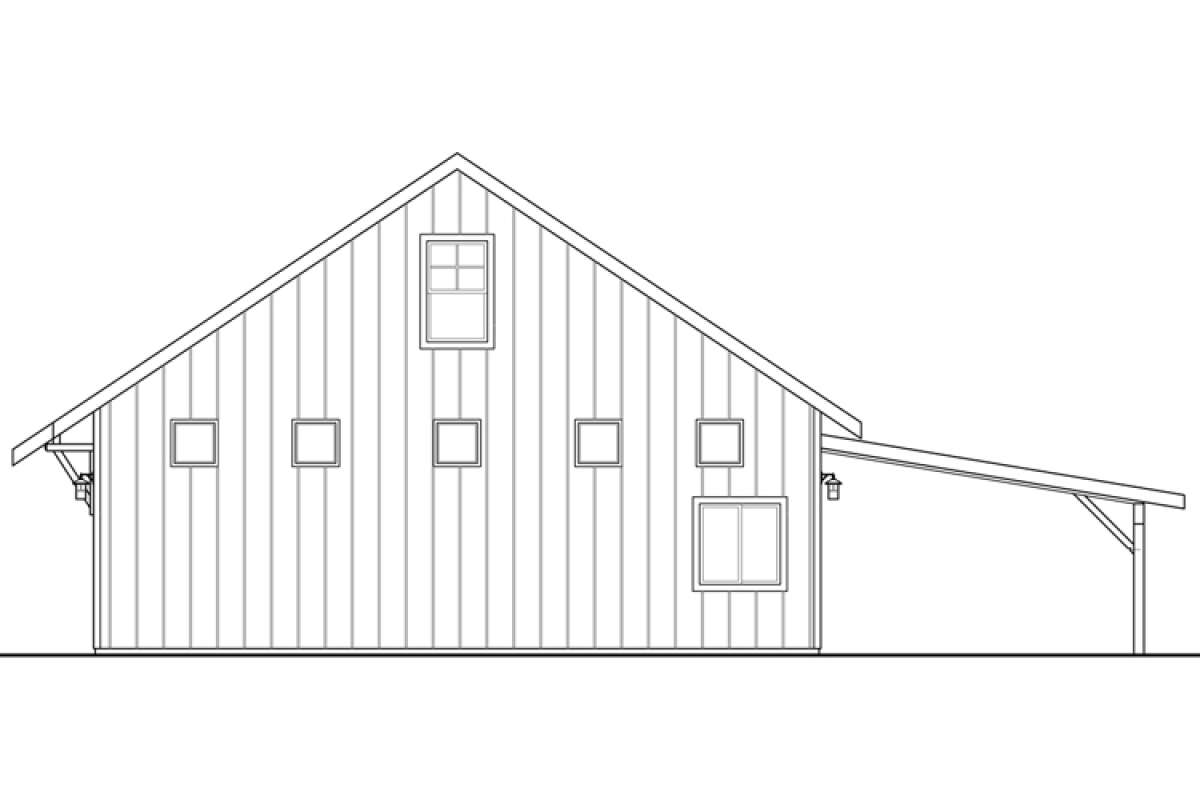

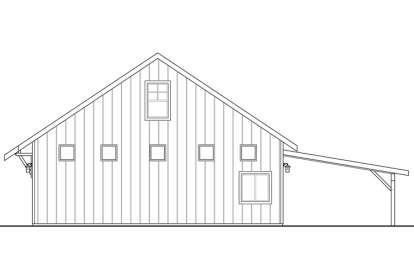

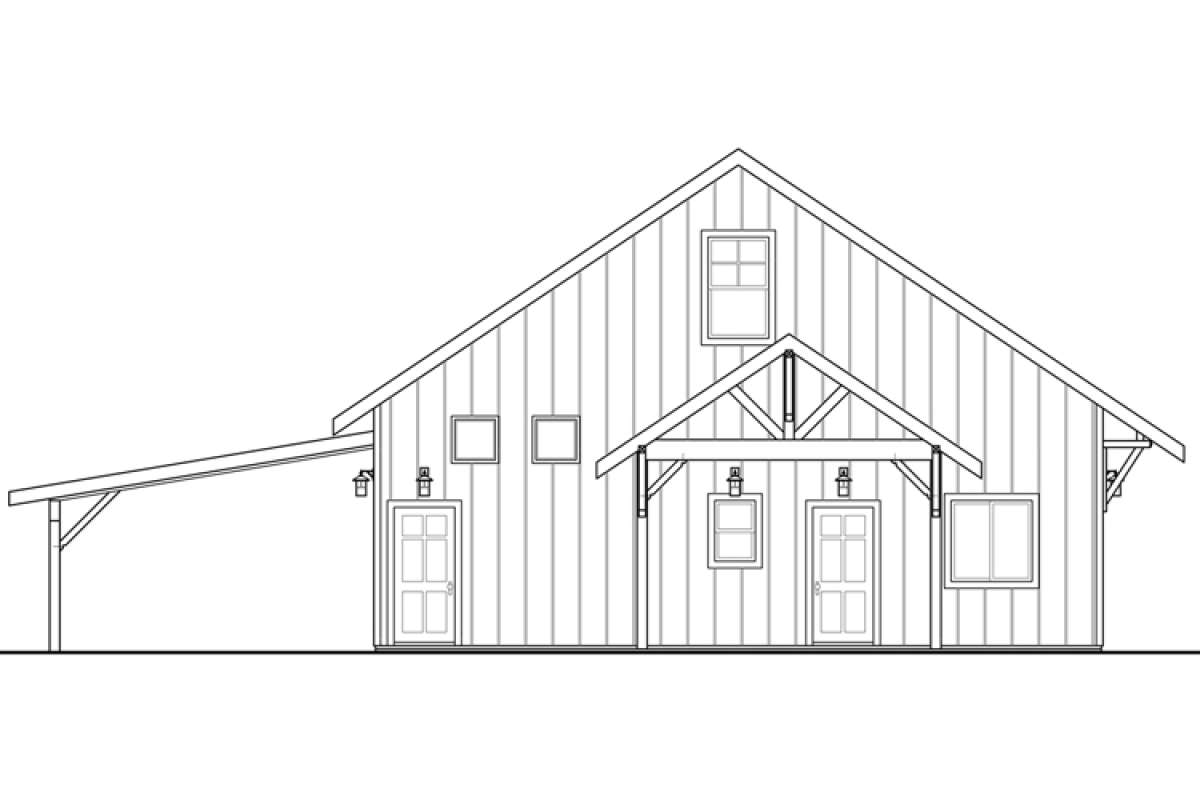

• Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

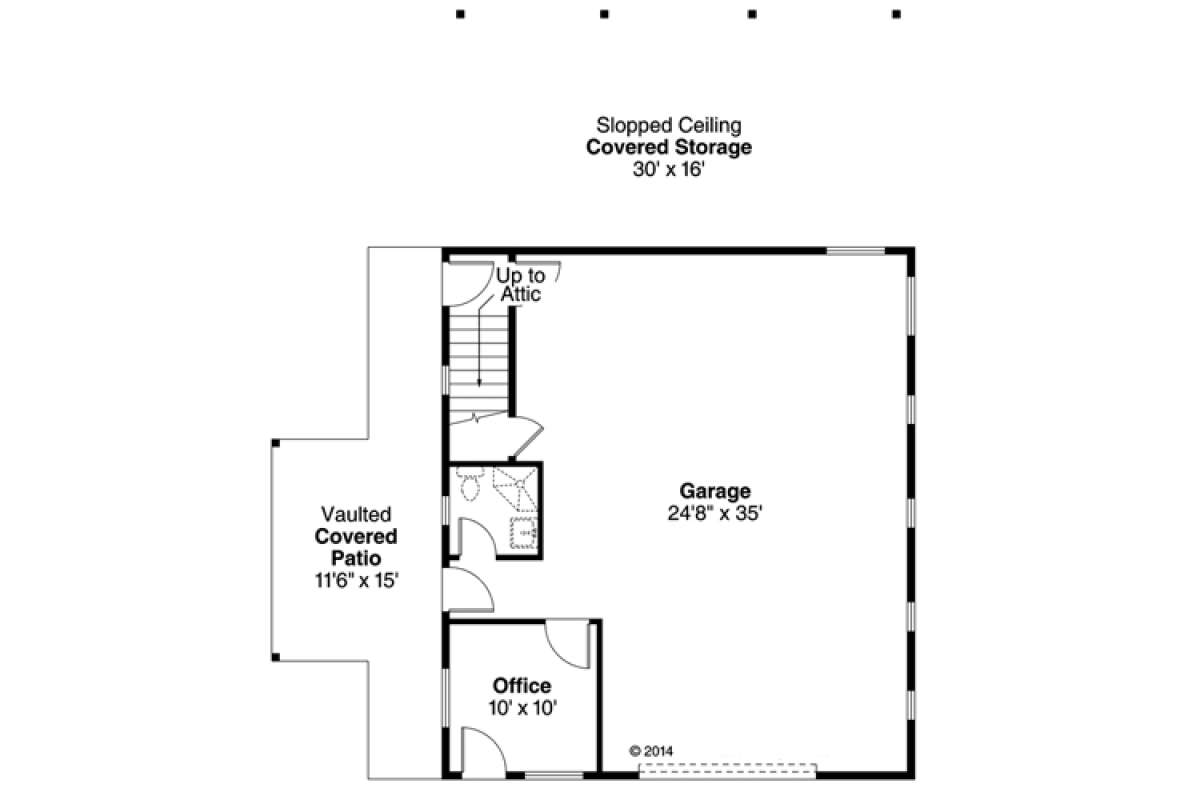

• Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
• Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
• Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
• Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
• Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
• Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
• *Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
• *Single Build License is included with plan packages of 5 sets or more.
