Craftsman Garage Plan 035-00759


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 2,103
Fin Sq Ft 0
Cars 2
Beds 0
Width 30'
Depth 52'

Floorplan Drawings

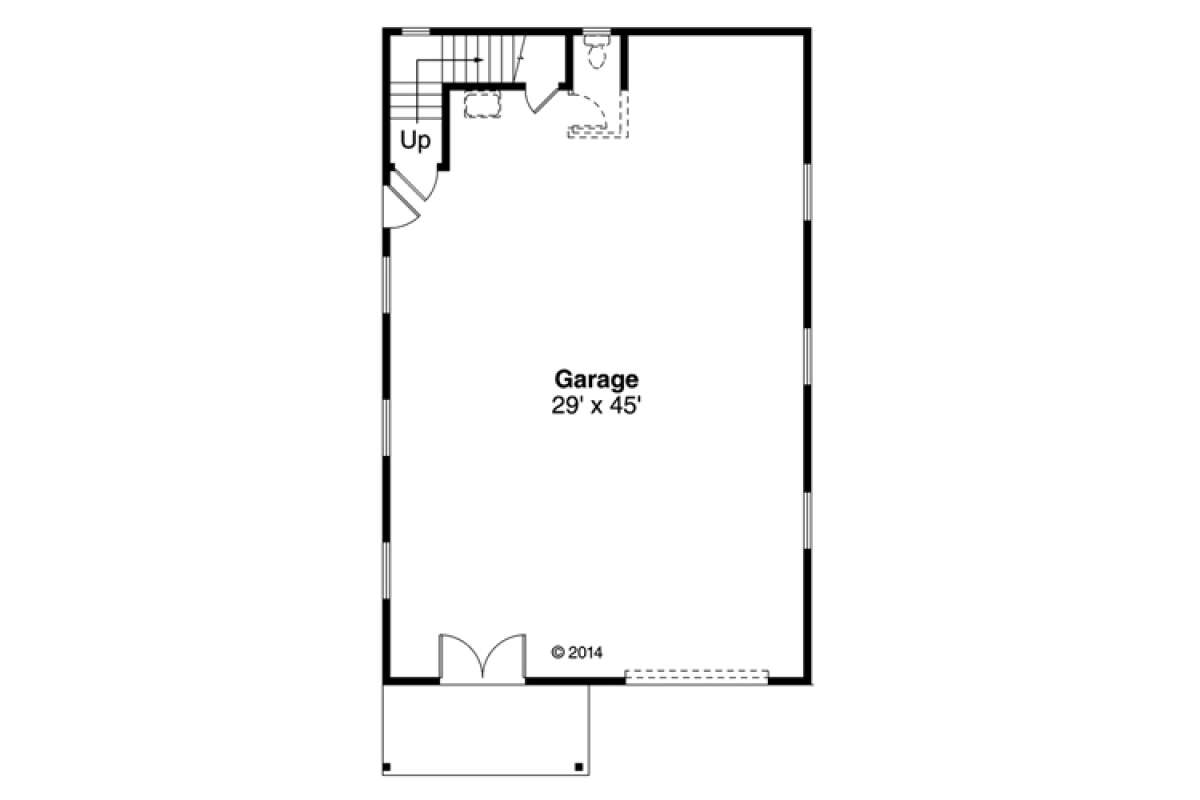

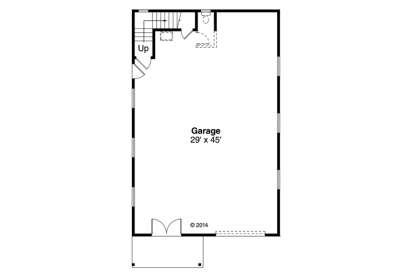

1st Floor
1st Floor for House Plan #035-00759

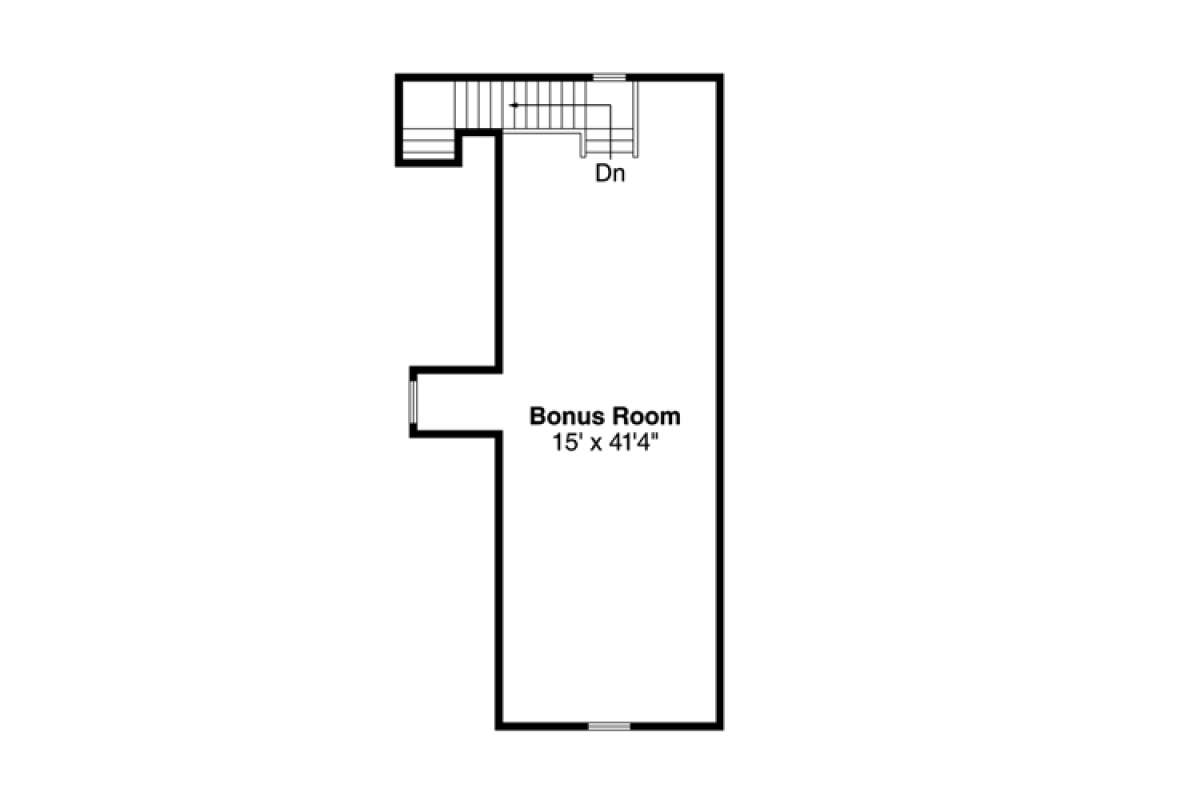

2nd Floor
2nd Floor for House Plan #035-00759

What's Included in these plans?

  • Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
  • Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.

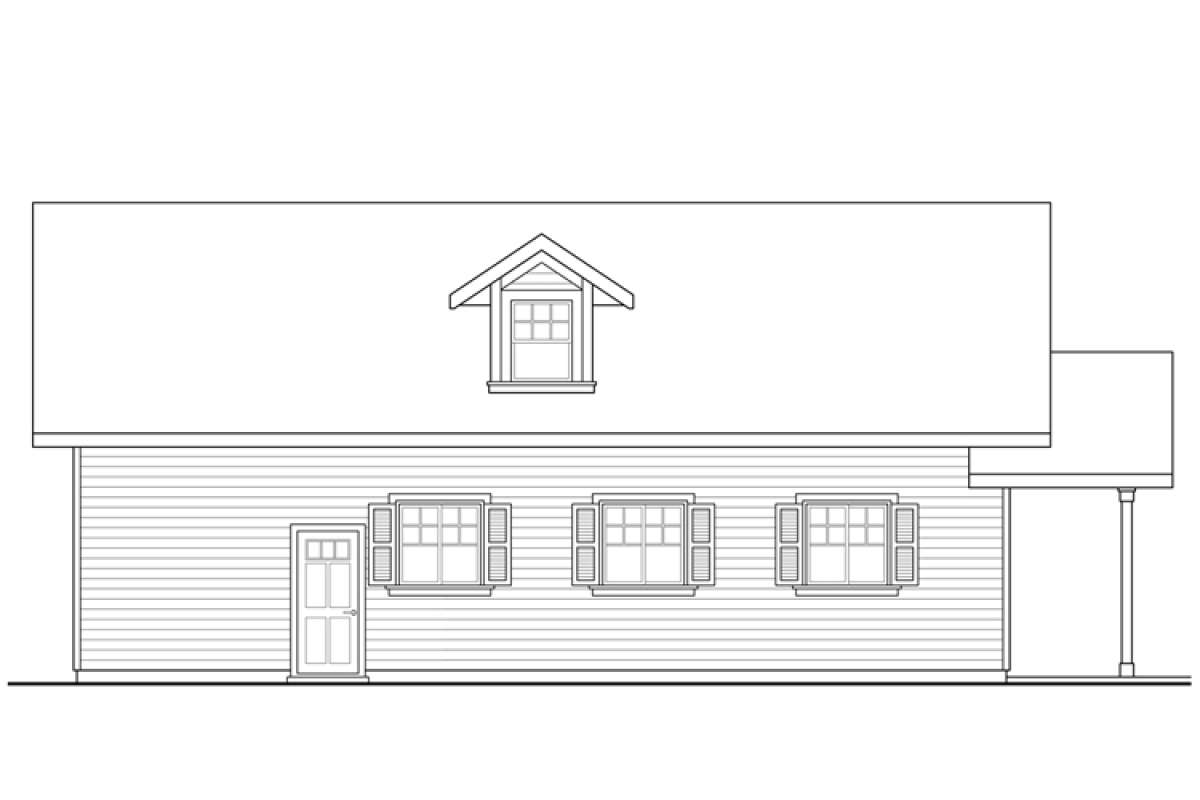

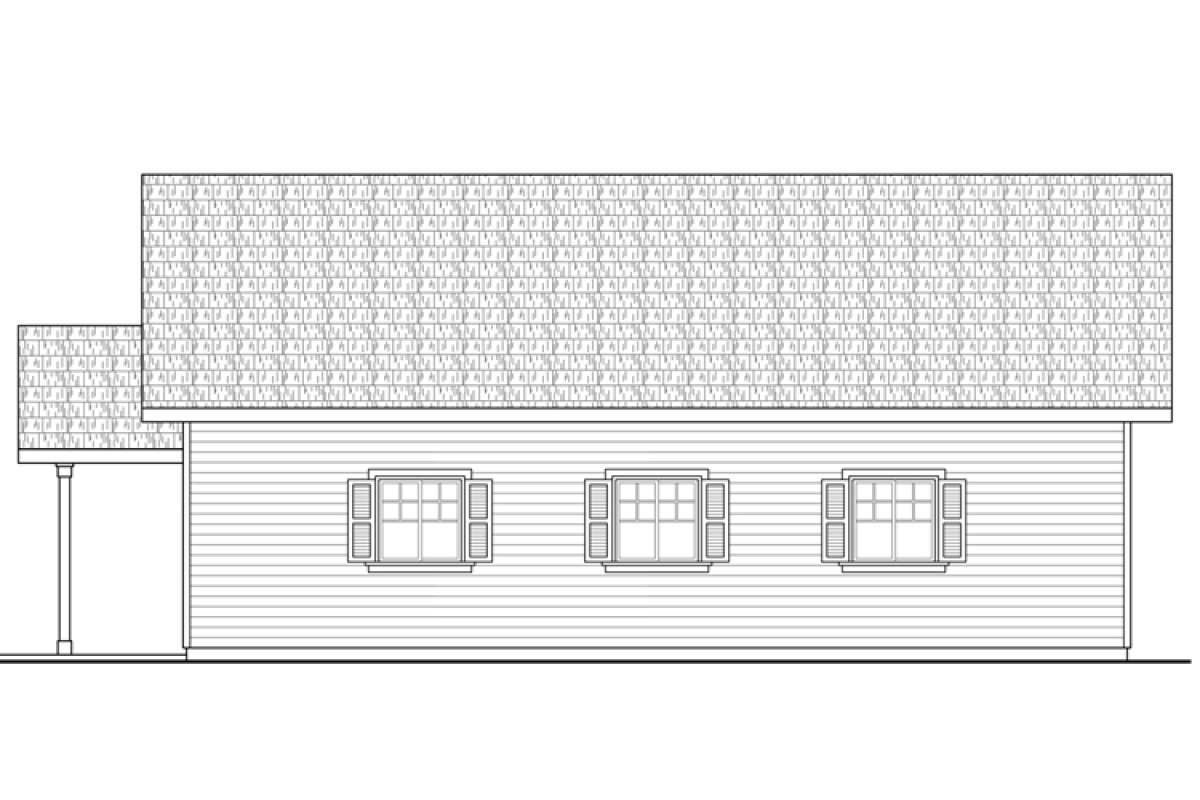

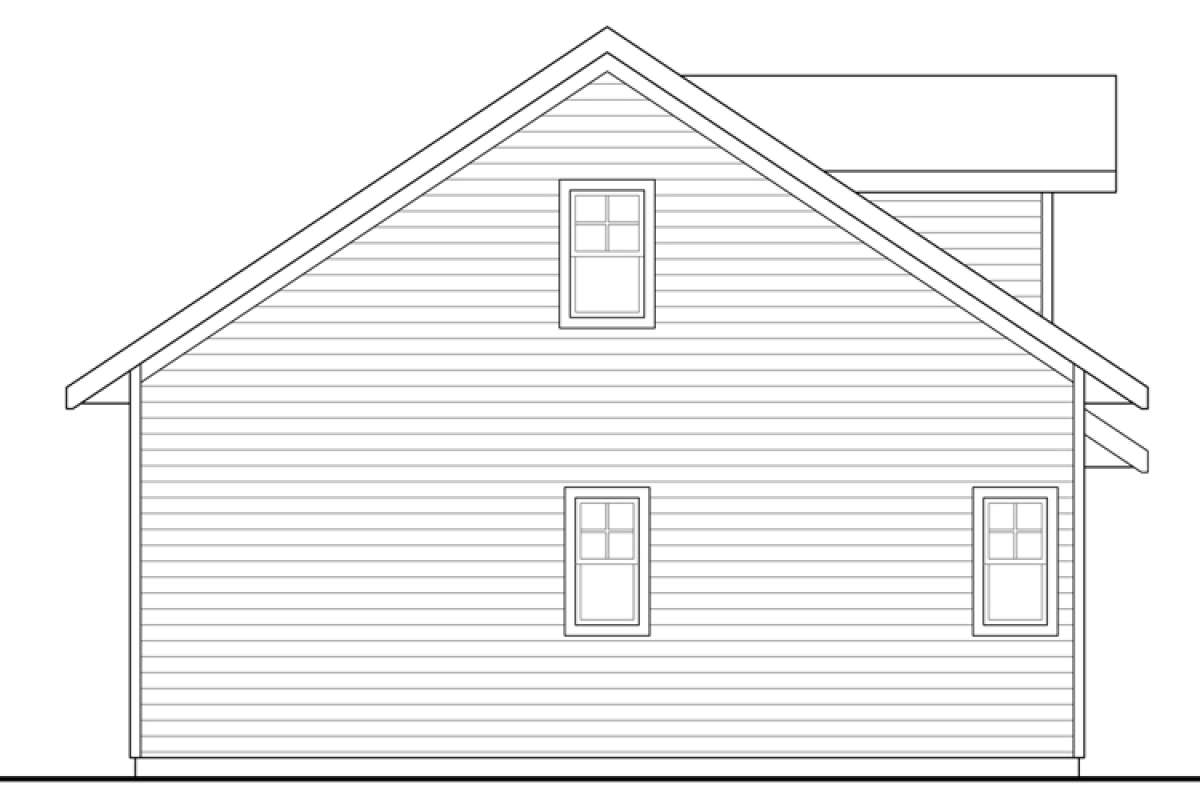

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
  • *Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
  • *Single Build License is included with plan packages of 5 sets or more.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This spacious Craftsman style garage can house up to two cars. The single garage door is 10' wide and 9' tall but with 45' of interior depth you could park two cars stacked one behind the other. Double doors on the front open to additional garage space that can be used as storage or a shop. In the back of the garage is a set of stairs that lead up to a bonus room on the second floor.
