Contemporary House Plan #035-00749 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,869

Beds 3

Bath 3

1/2 Baths 0

Car 2

Stories 2

Width 23'

Depth 58' 6"

See What's Included

Select Package

PDF (Single Build)

$2,400.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Single Build, Non-Modifiable)

$1,150.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with the copyright release which allows for making printed copies locally. This option does not allow for modifications to be made to the plans. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build, Non-Modifiable PDF)

$1,425.00

One Complete set of working drawings emailed to you in Non-Modifiable PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$2,575.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Plus PDF, Unlimited Build)

$2,825.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once and also includes a PDF set!

Select Foundation

Crawlspace Foundation $0.00

Slab Foundation $350.00

Basement Foundation $460.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $55.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $300.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

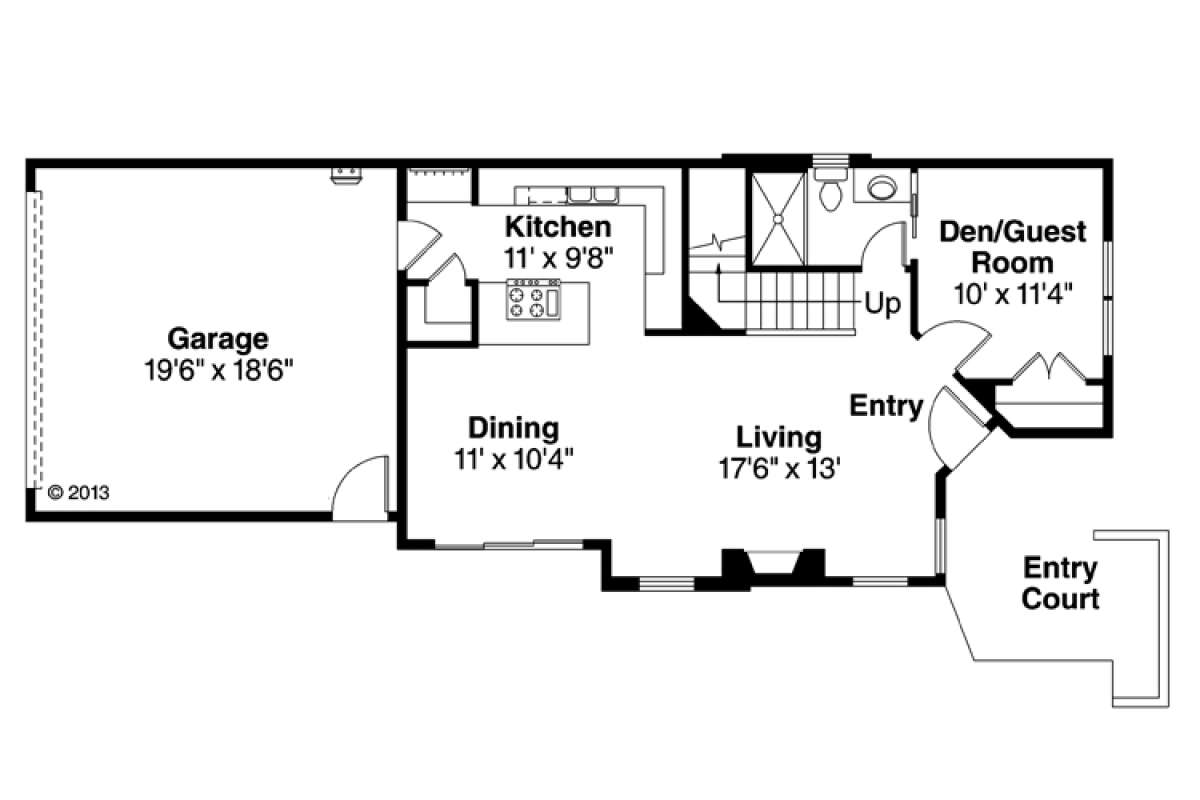

1st Floor

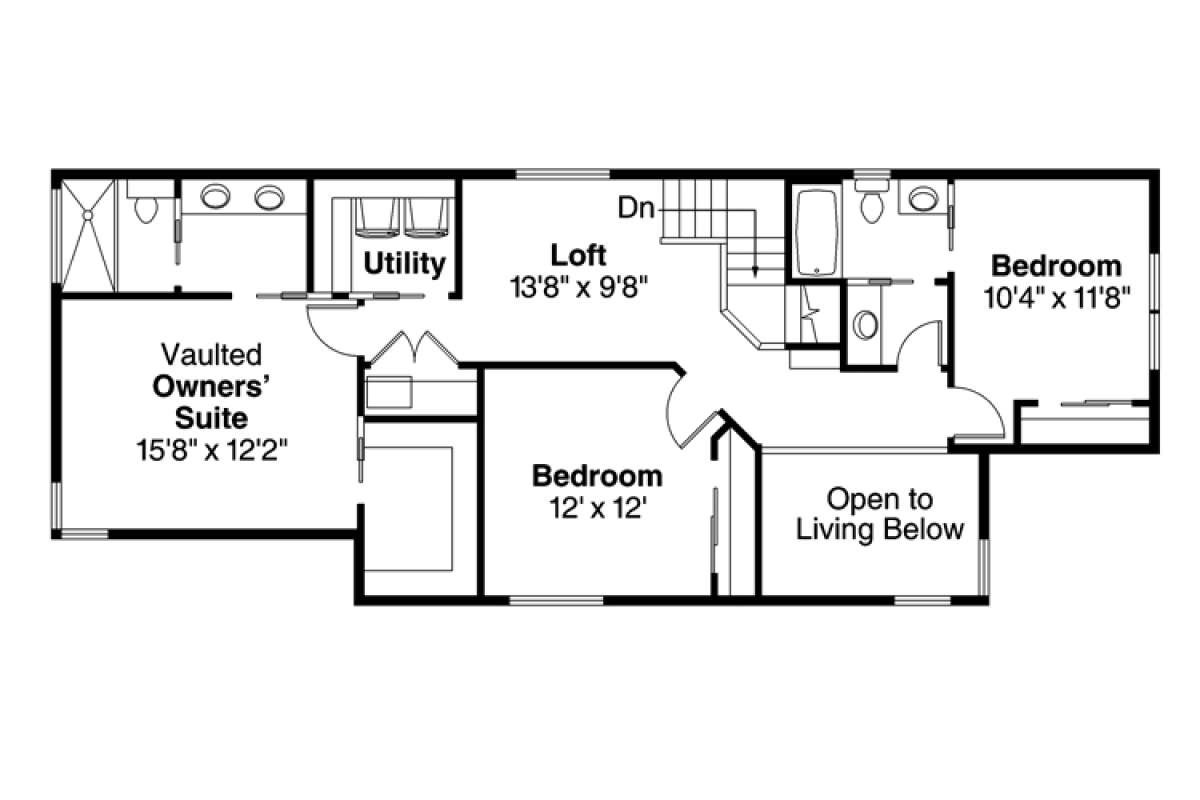

2nd Floor

Images copyrighted by the designer.

What's Included in these plans?

Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.

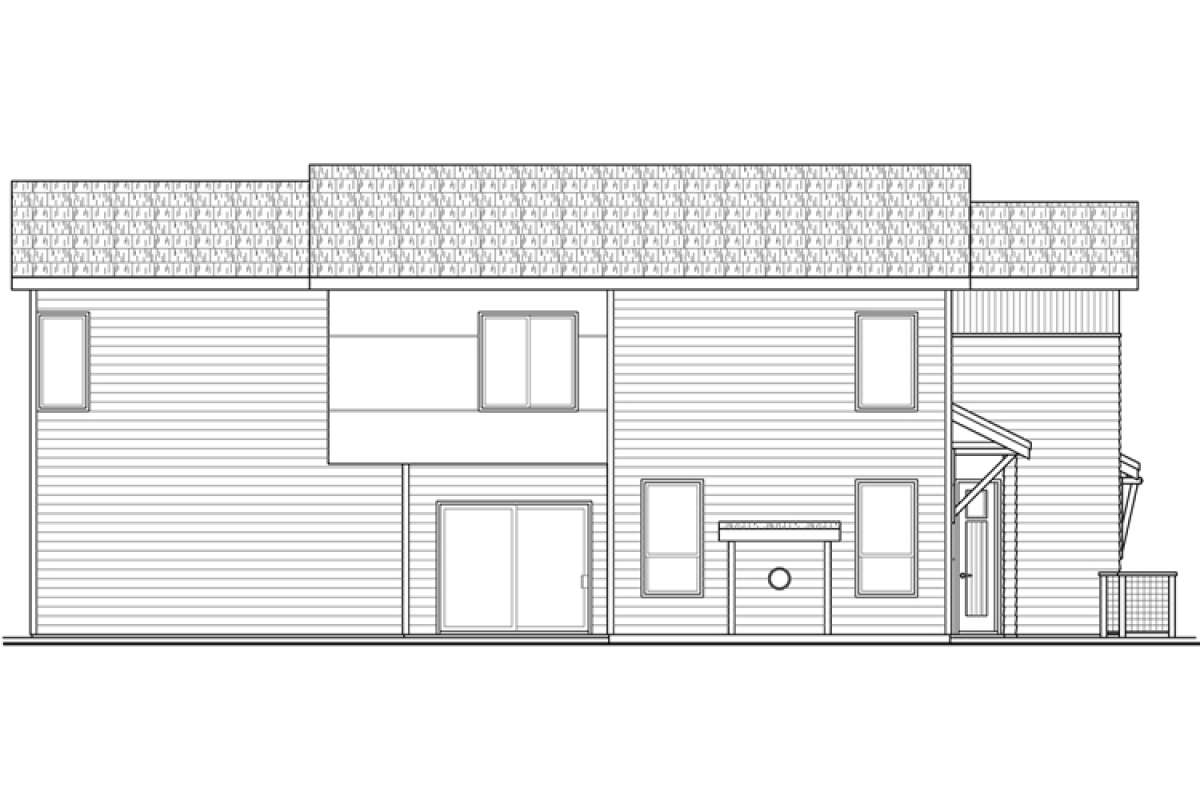

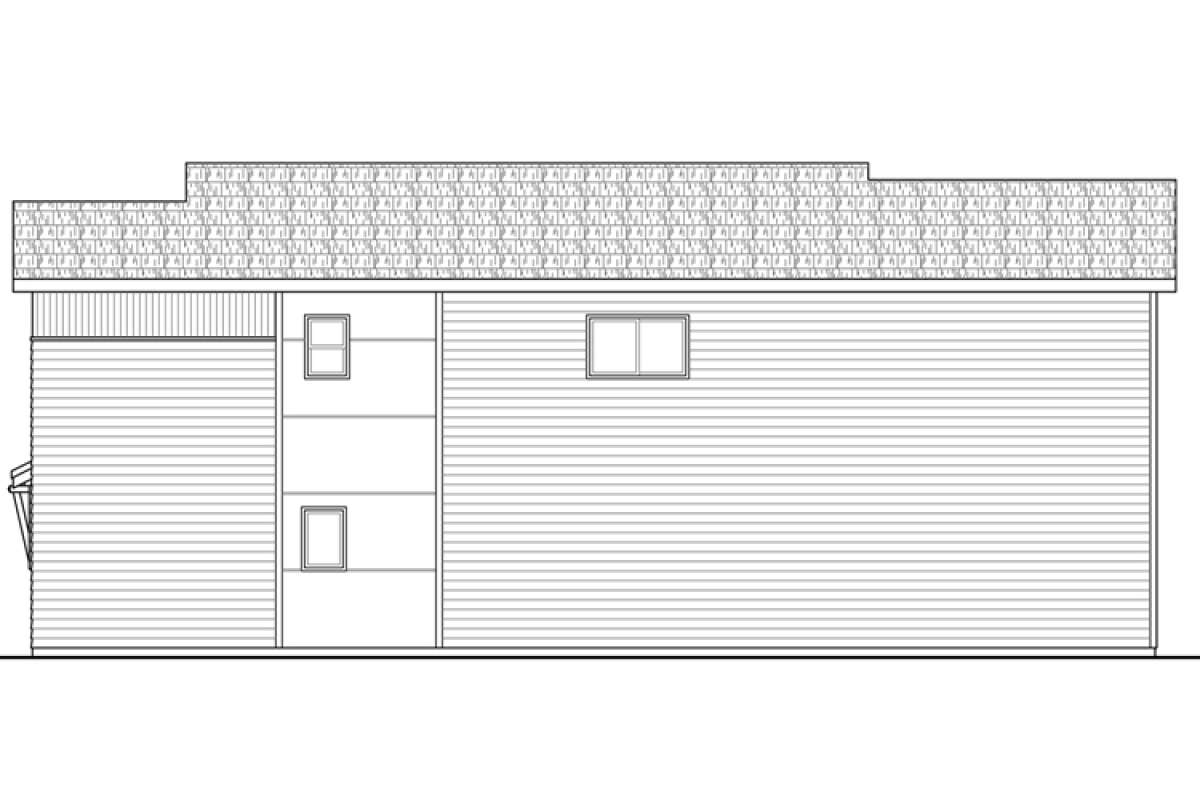

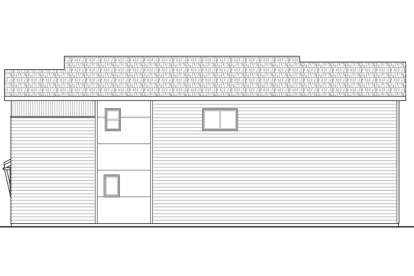

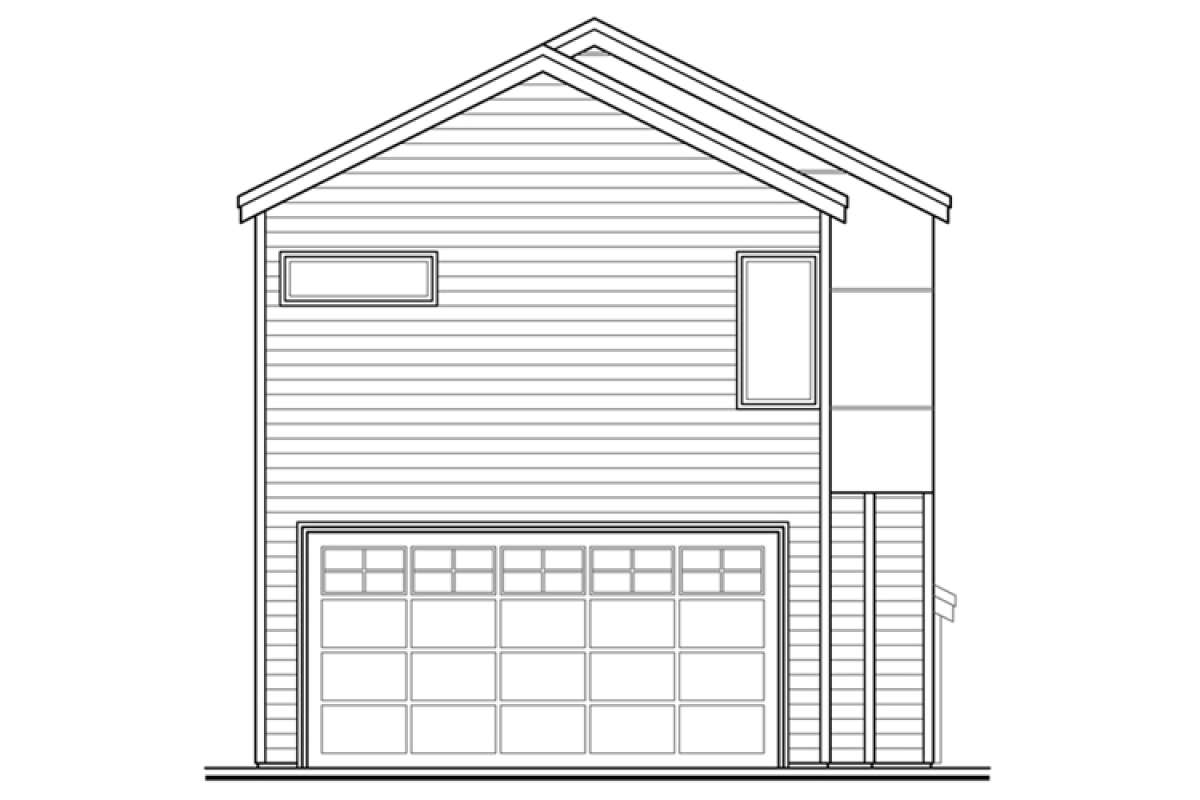

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
*Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
*Single Build License is included with plan packages of 5 sets or more.

Ask Us A Question

About This Plan

Sunlight washes into the living and dining rooms of this contemporary townhouse. The living room's windowed side soars up two stories and is open to the loft above. The kitchen is hugs one side of the dining room while sliding glass doors that access the patio are on the other. Owners' suite, utility room and two more bedrooms are all located on the second floor.
