Narrow Lot House Plan 035-00483

Sq Ft414
Beds1
Baths1
1/2 Baths0
Stories1
Cars0
Width22' 0"
Depth32' 0"

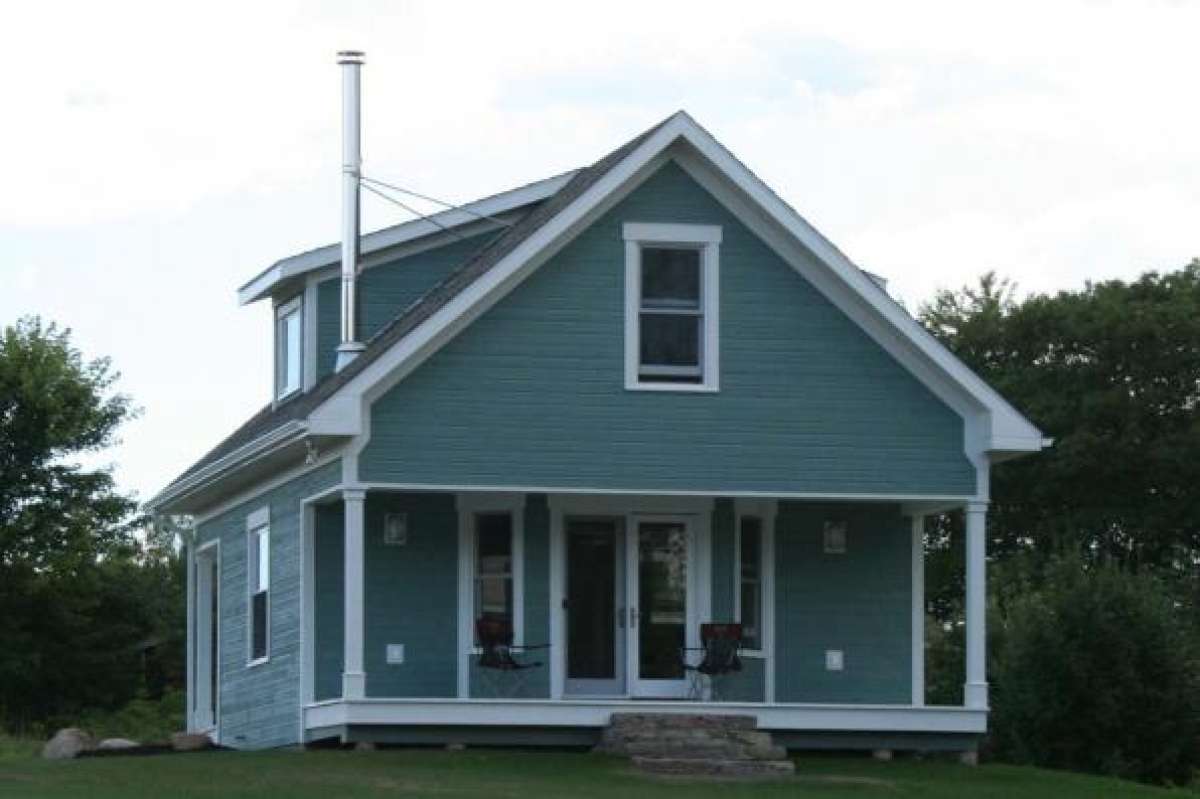

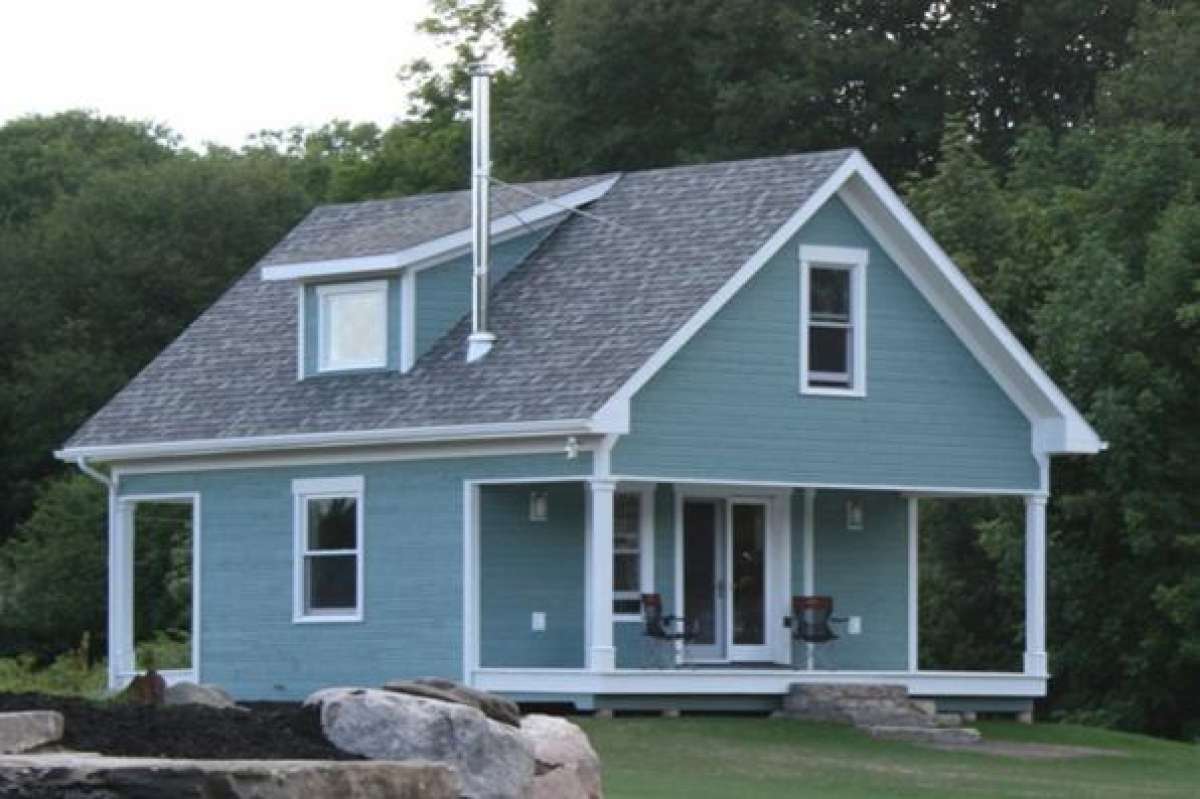

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #035-00483
Floorplan 2 for House Plan #035-00483

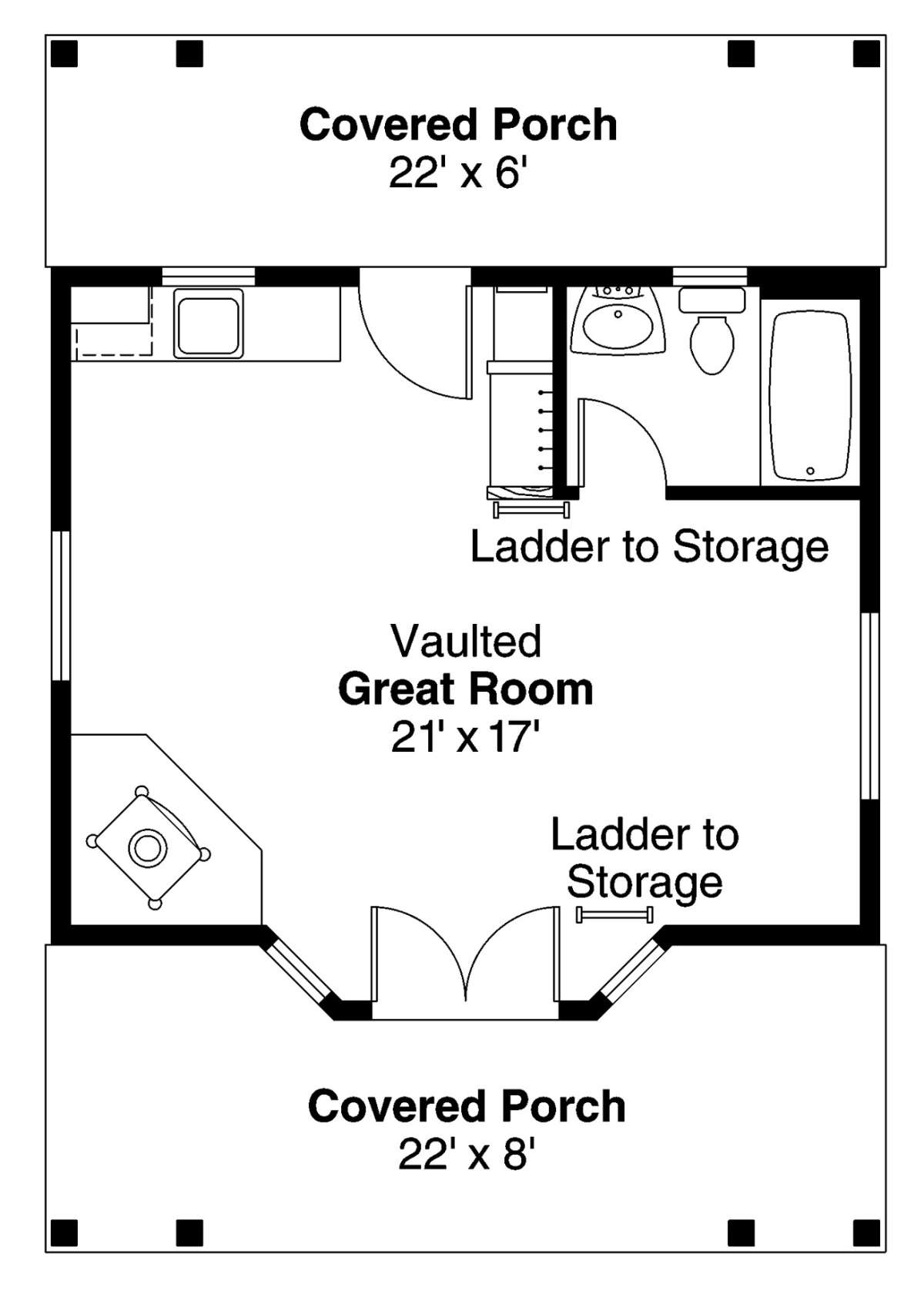

Floorplan 1
Floorplan 1 for House Plan #035-00483

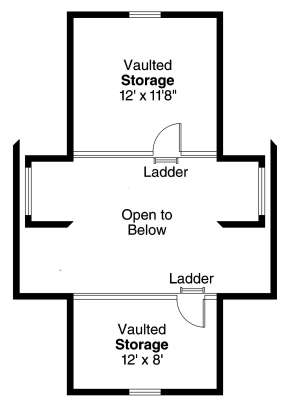

Floorplan 2
Floorplan 2 for House Plan #035-00483


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:

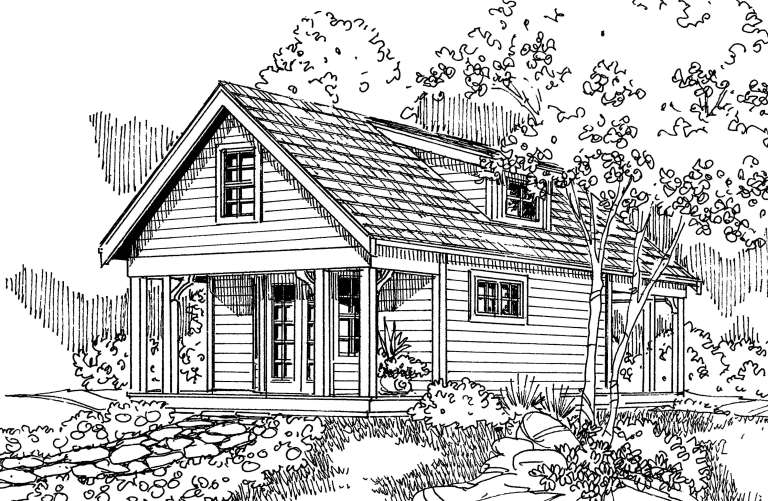

  • Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
  • *Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
  • *Single Build License is included with plan packages of 5 sets or more.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Narrow lot house plan features 22’ width and 32’ depth dimensions and is perfectly suited for a small and/or narrow property lot. The home features an exterior that is warm and welcoming with expansive front and rear covered porches that extend the width of the home and offer sanctuary from the elements while simultaneously providing a spot to relax, read and/or star gaze. Nine foot ceilings accentuate the main level of the home thereby, increasing the spacious feel and atmosphere of the space. There are approximately 414 square feet of living space that features one bedroom, one bath and 269 square feet of bonus space. Double door entry into the home reveals an expansive open layout that includes a vaulted great room with wonderful window views and a wood burning stove. This space could be configured in numerous ways to include living and dining space and creatively include additional sleeping space. There is kitchen space with rear porch access, a full bath with vanity space, a toilet area and a tub/shower combination along with ladder access to the second level. The second level features a huge open loft which could function as a reading library, a craft/hobby room and any number of sleeping arrangements could be utilized in the space. Huge vaulted storage areas sit on either side of the loft, perfect for seasonal or other storage items. This home features a traditional cottage exterior with unique interior elements designed to facilitate a different way of living whether that is sharing good times with like-minded buddies while fishing/hunting or hiking or whether the space will be used as a writer’s retreat or small family getaway home.
