Narrow Lot House Plan 034-01043

Sq Ft2,586
Beds5
Baths3
1/2 Baths0
Stories2
Cars0
Width30' 0"
Depth34' 0"

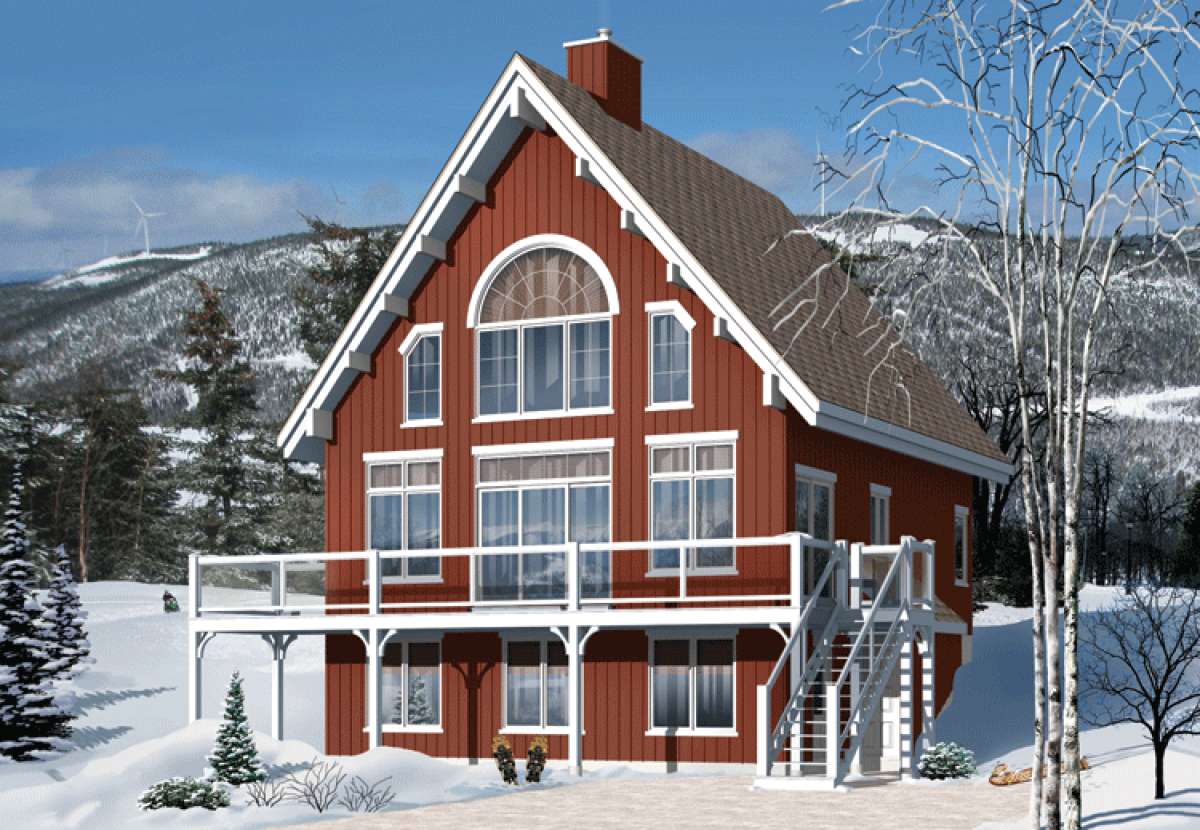

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Basement Floor Plan for House Plan #034-01043
Main Level Floor Plan for House Plan #034-01043
Floorplan 3 for House Plan #034-01043

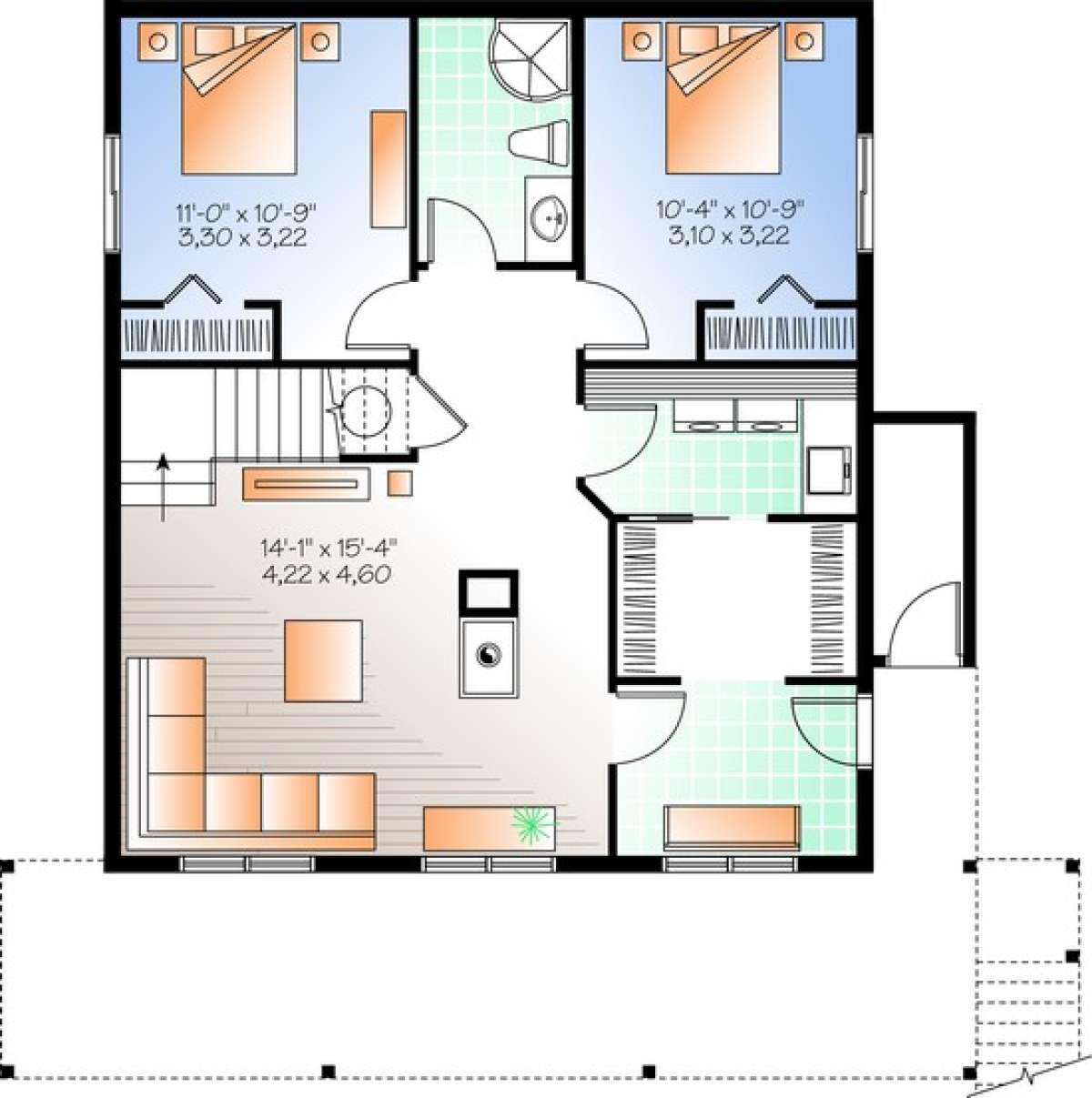

Basement Floor Plan
Basement Floor Plan for House Plan #034-01043

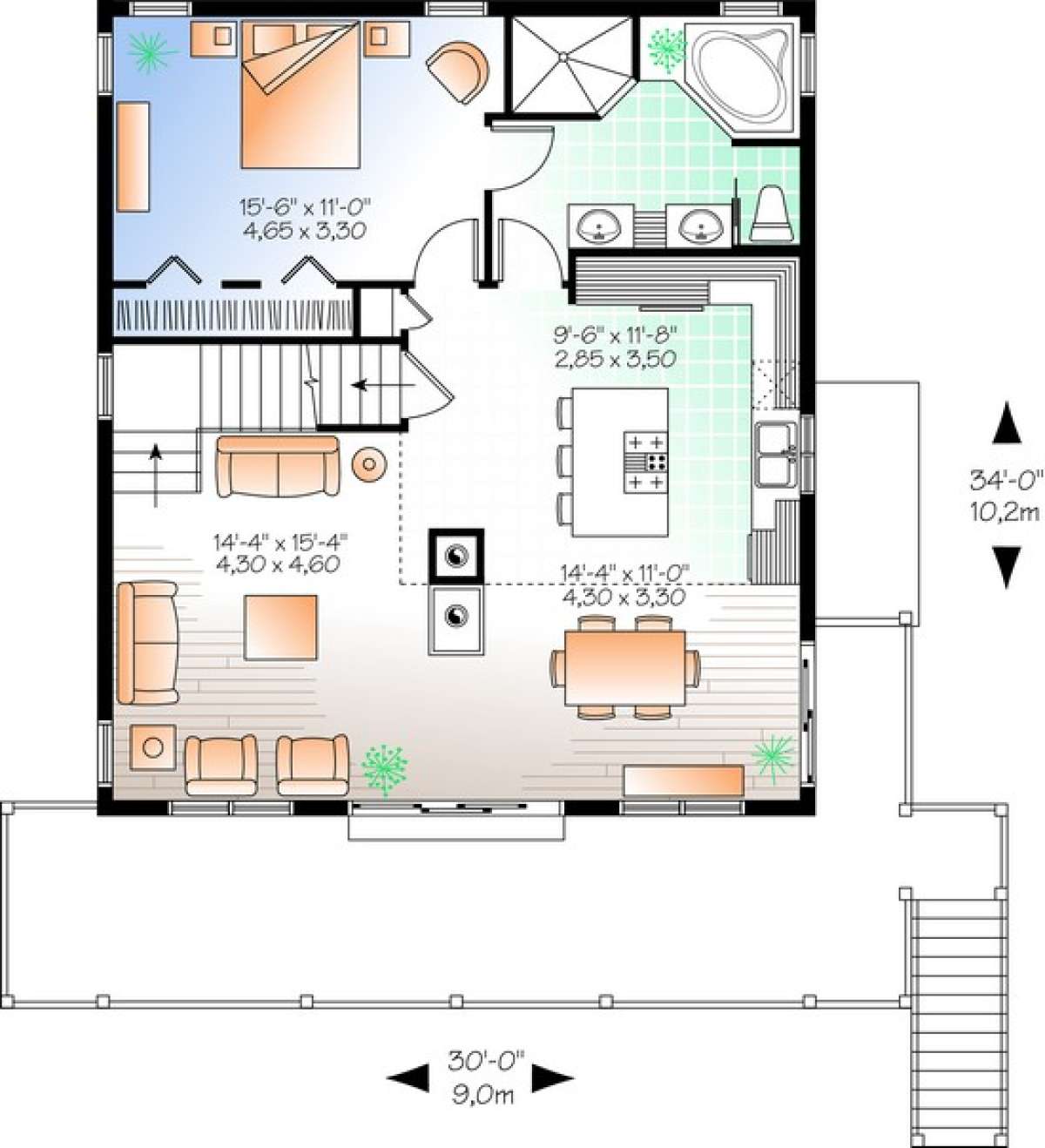

Main Level Floor Plan
Main Level Floor Plan for House Plan #034-01043

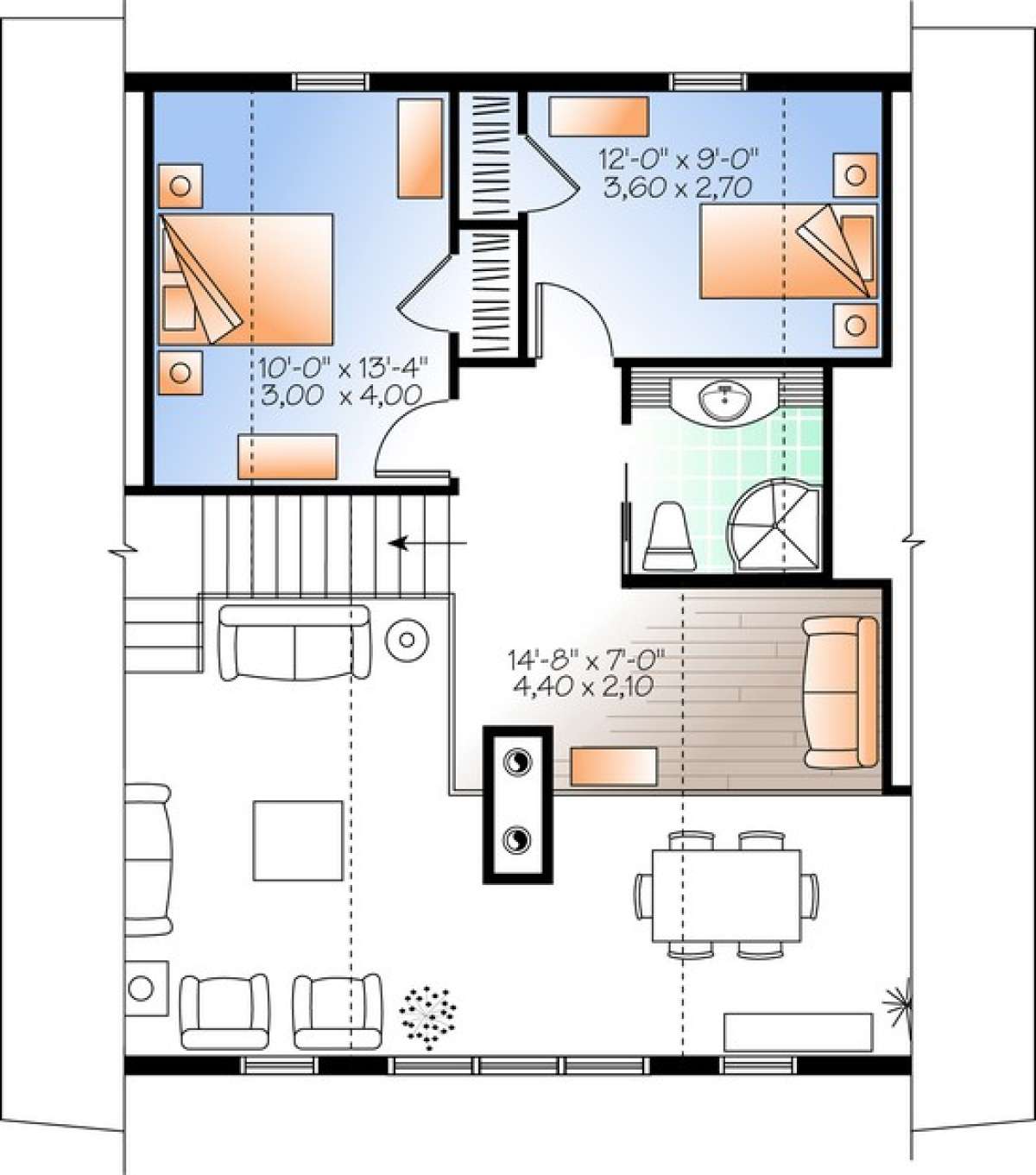

Floorplan 3
Floorplan 3 for House Plan #034-01043


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

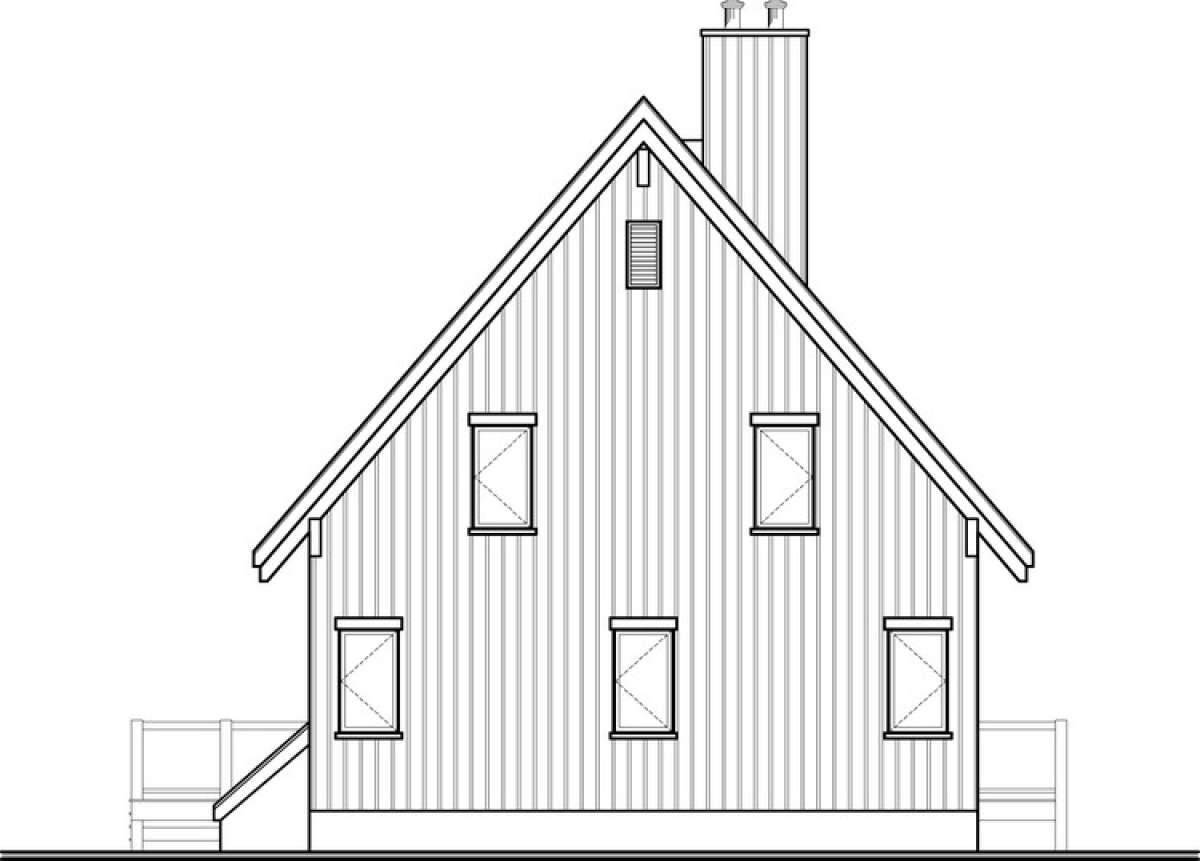

  • 4 Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Truss Diagrams & Building Section
  • Construction Details
  • Typical Wall Section

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This three tiered Narrow lot house plan is ideal for family living whether located in suburbia, an urban property lot or nestled deep in the woods. Suitable for a narrow and/or small property lot, the width and depth dimensions are 30’ and 34’ respectively. The home is highlighted with an abundance of charm and design detailing which enhances the curb appeal of the home. There are exposed rafters, a wraparound exterior deck, an outdoor staircase and a multitude of gorgeous window views on the façade of the home. The interior floor plan features approximately 2,586 square feet of living space with five bedrooms, three baths and a walk-out basement foundation. The terrace level features an outdoor storage room before accessing the home’s interior where there is a large mudroom designed for outdoor gear, back packs and assorted other winter accessories. Adjacent to the mudroom is an enormous closet area and located beyond the closet is the family laundry room with a sink area and counter space. The recreation room is spacious and houses a wood burning stove for warmth and there is access to the main level staircase. Two bedrooms are also located on this level and are situated at the rear of the floor for privacy. The bedrooms are spacious with good closet space, window views and the shared hall bath with vanity space, a toilet area and a shower lies between the two bedrooms for easy access. The main level of the home features an open floor plan for superior living and entertaining as well as the master suite. There is a large living and dining room with a wood burning stove and two sets of double sliders to access the open deck along with gorgeous window views. The grand kitchen is highlighted with a large cooktop center island and casual seating, double sink window views and plenty of counter and cabinet space. The master bedroom is spacious with window views and wall-to-wall closet space while the master bath features double vanities, a corner garden tub and a separate shower. The third floor offers a lounge area for older children or playroom for smaller children and there are overviews onto the main level living space. Two additional bedrooms are located on this floor; each features window views and plentiful closet space. The shared hall bath is nearby and offers a large vanity, a toilet area and a shower. This Narrow lot house plan features great family entertaining and private area, a versatile layout and an exterior that is charming and welcoming.
