Narrow Lot House Plan 028-00102

Sq Ft1,968
1/2 Baths0
Width18' 0"
Depth55' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #028-00102

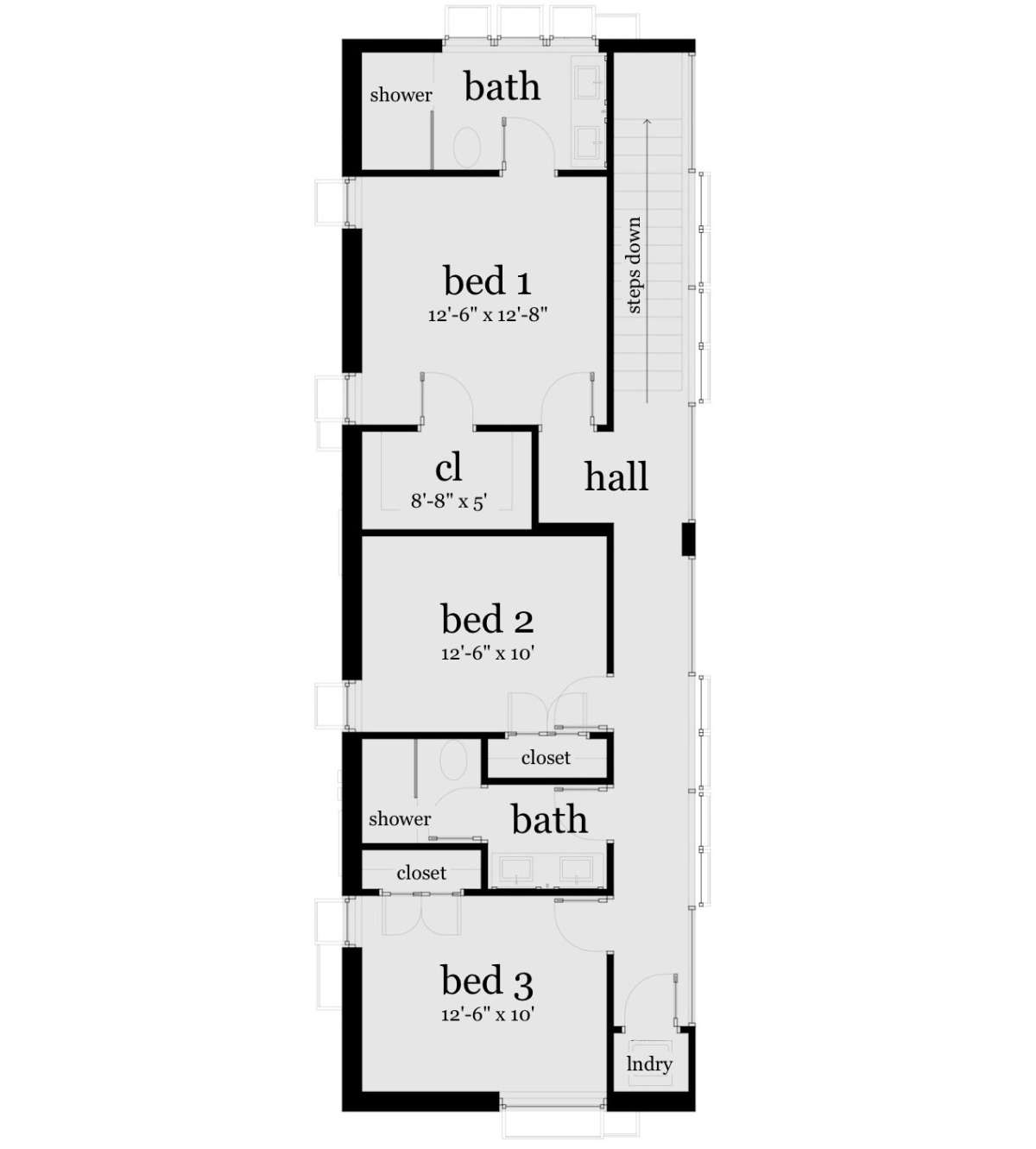

Second Floor for House Plan #028-00102

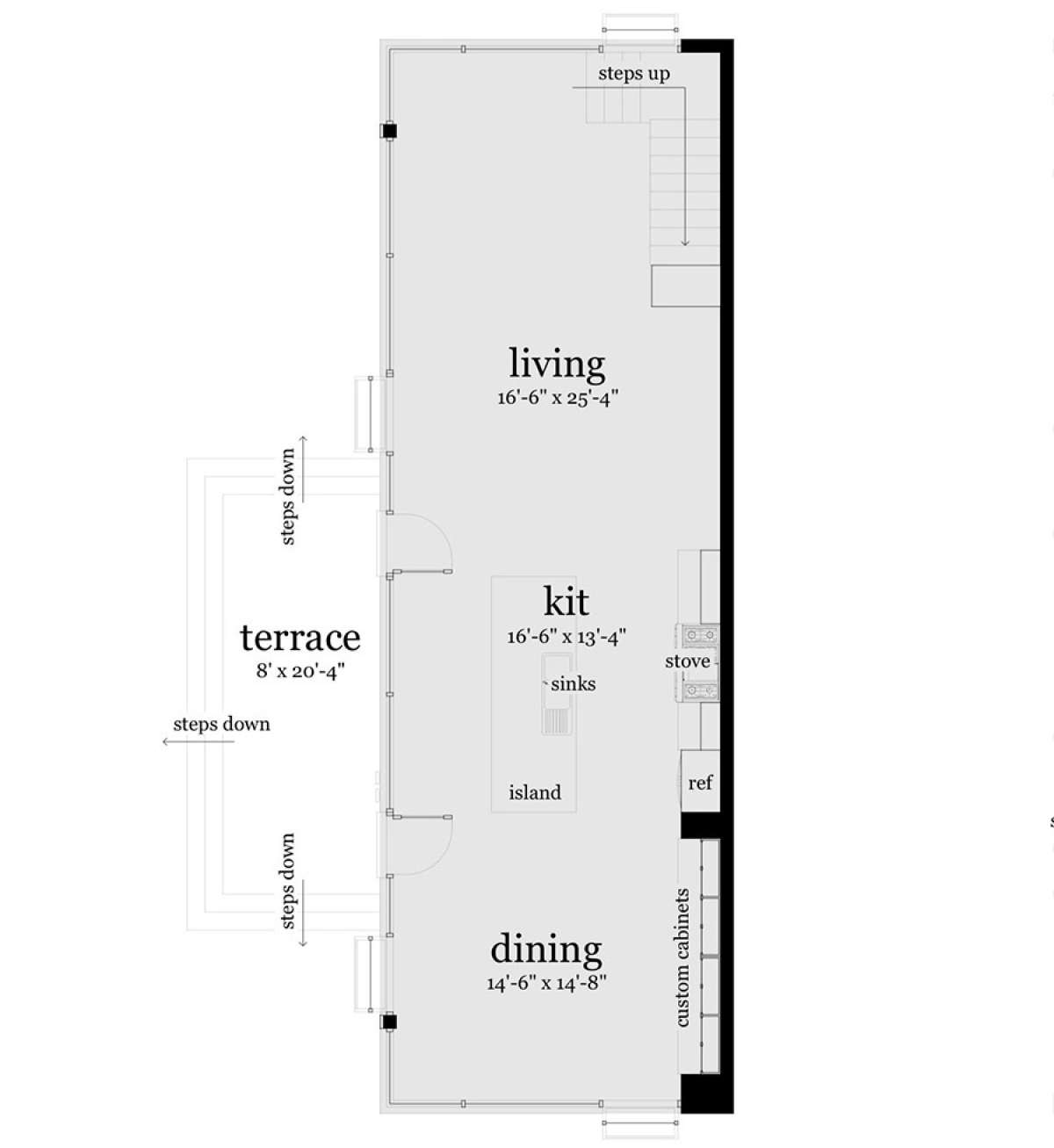

Main Floor
Main Floor for House Plan #028-00102
Second Floor
Second Floor for House Plan #028-00102

Frequently Asked Questions


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

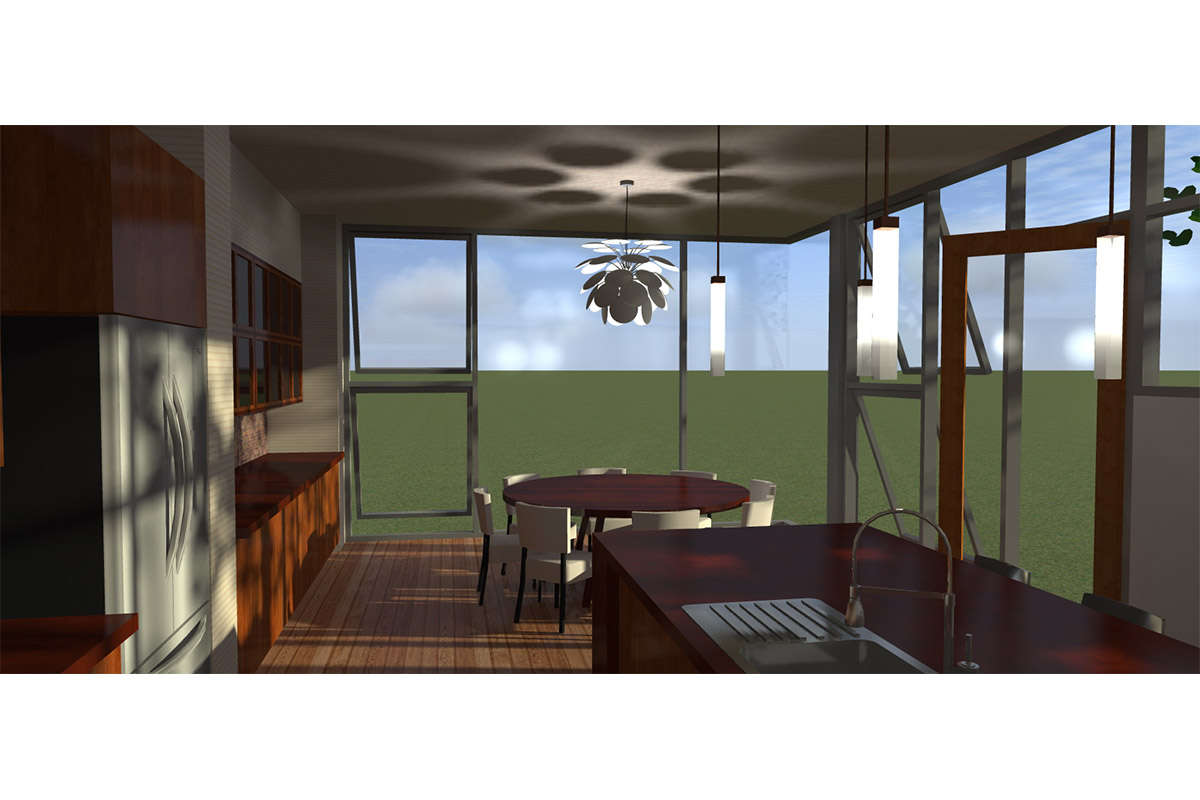

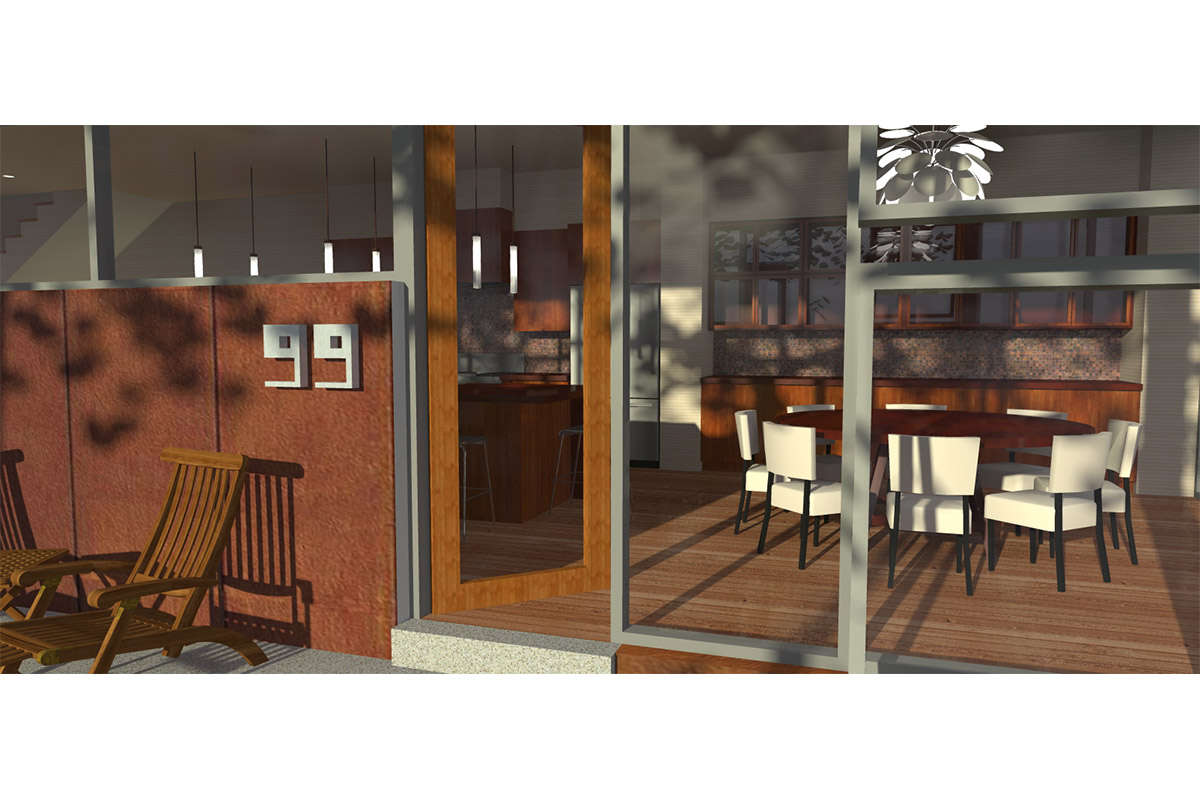

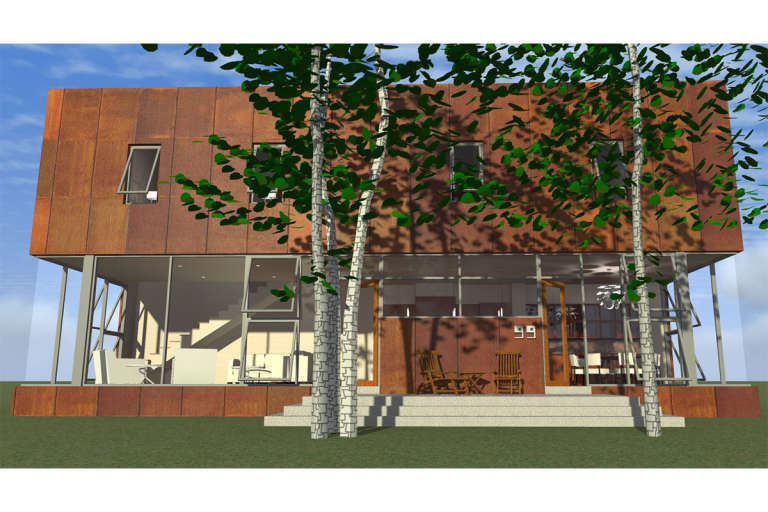

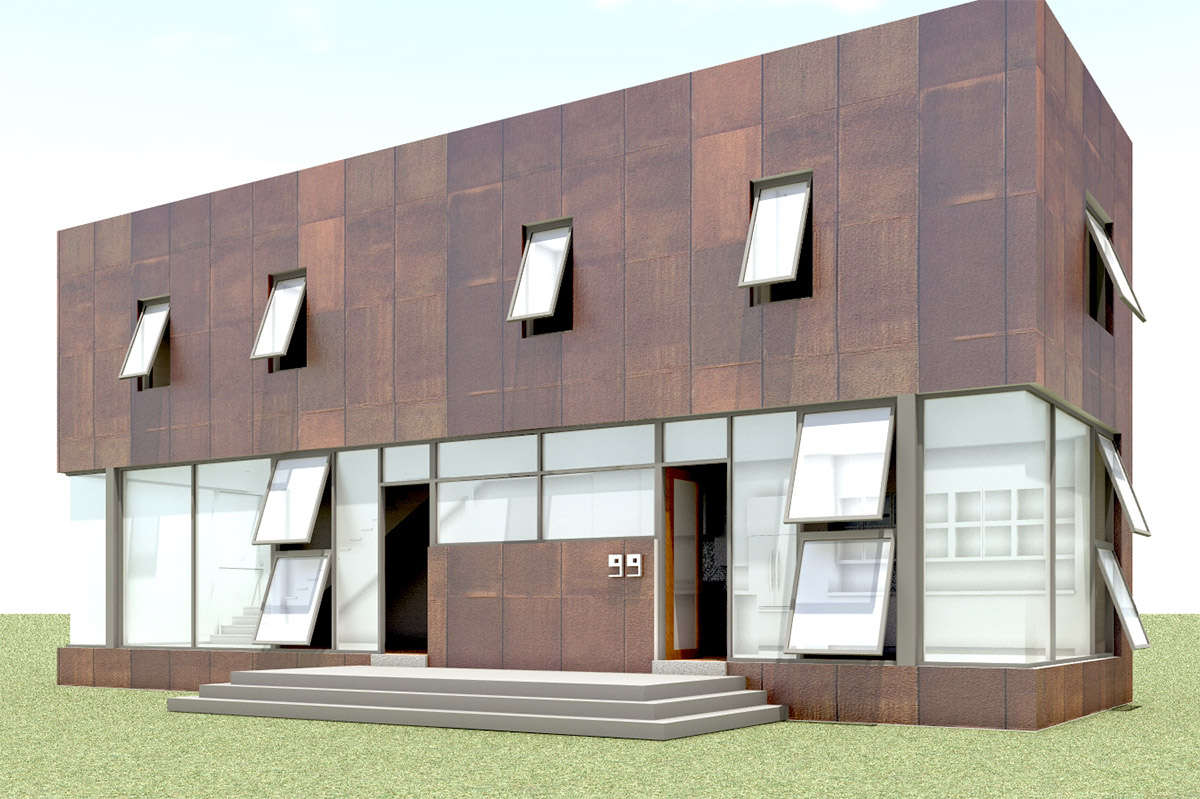

The punched-out front entrance along with the juxtaposition of the glass enclosed exterior and the burnished wood frame accomplishes line definition, breaks up the first and second story of the home and signals the entrance into the home. Pop out windows and metal framing give visual interest and texture to the home’s exterior façade. The 18’ width gives this home superior “narrow lot” status and yet, the home is spacious with approximately 1,968 square feet of living space encompassing three bedrooms and two baths. An expansive three step patio outlines the front entrance into the home and provides an inviting space in which to relax or greet family and friends. An open concept design spans the entire first floor and sets the stage for this modern marvel of space. The centrally located gourmet kitchen features an expansive center island with multiple seating options and a back wall provides counter and cabinet storage along with modern conveniences. The dining room is highlighted by an immense rear wall of display cabinets. The living room features generous space for optimal furniture placement and entertaining options.

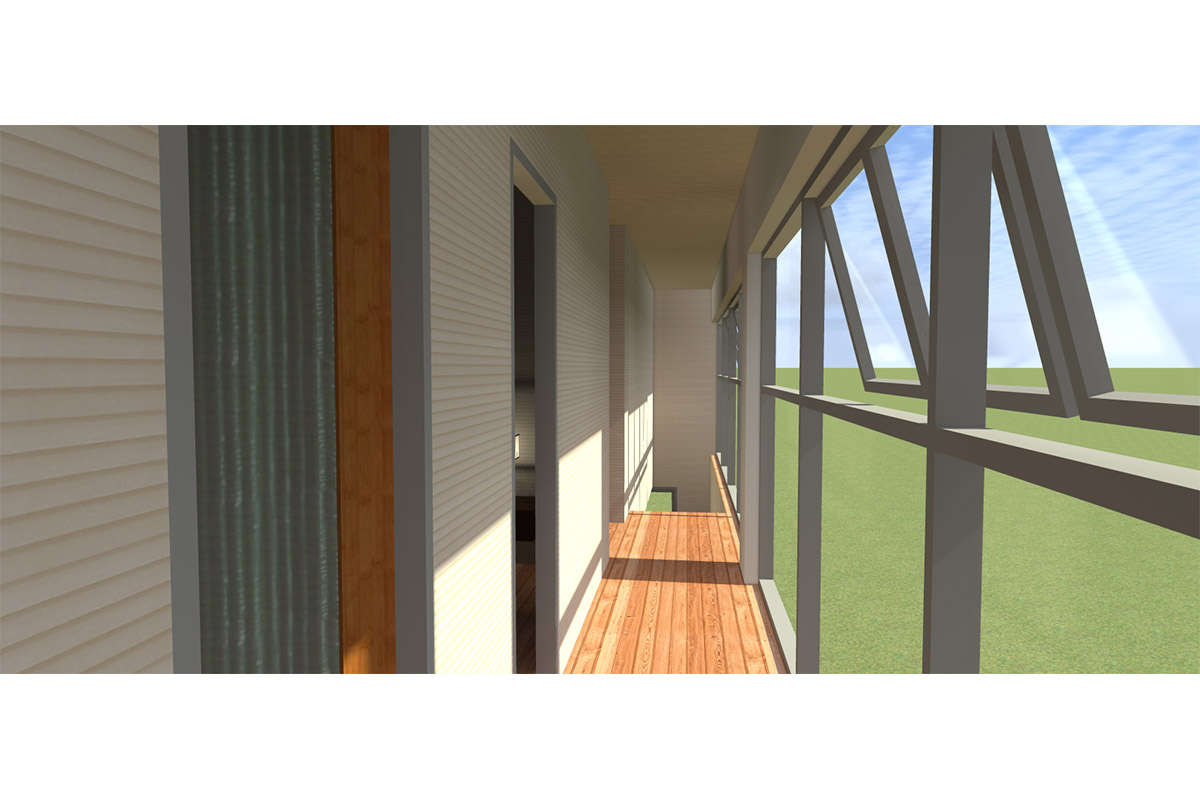

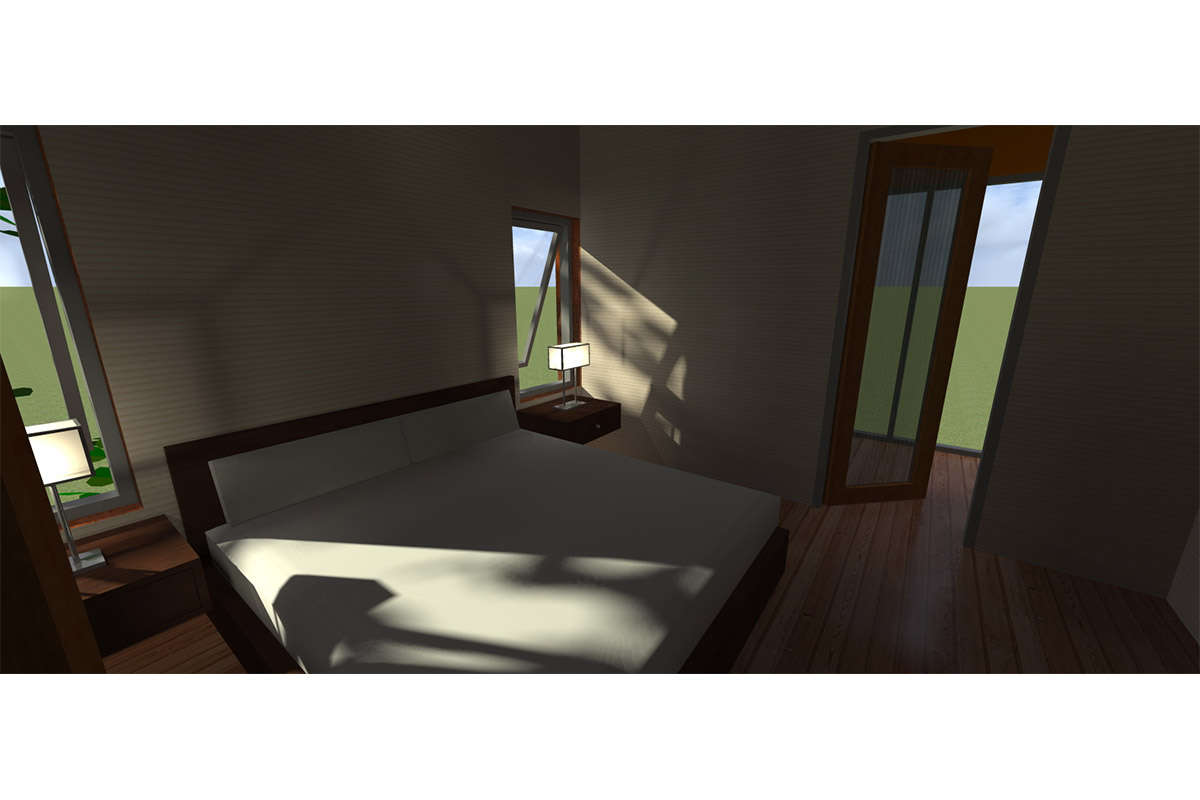

The second story landing spills onto an extended hallway where the laundry room is situated at one endpoint while the family bedrooms occupy the front of the home where window views abound. There are two spacious bedrooms with generous closet space and a shared hall bath which is highlighted by double sinks, a shower and a private toilet area. The master suite is sumptuous with a large bedroom that features an oversized master walk-in closet. The master bath is highlighted by dual sinks, a private toilet area and a large shower. This modern house design is functional, spacious and features a unique and bold exterior façade.
