Narrow Lot House Plan 028-00101

Sq Ft1,581
Beds3
Baths2
1/2 Baths0
Stories2
Cars0
Width27' 0"
Depth62' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #028-00101
Second Floor for House Plan #028-00101
Dimensions  for House Plan #028-00101

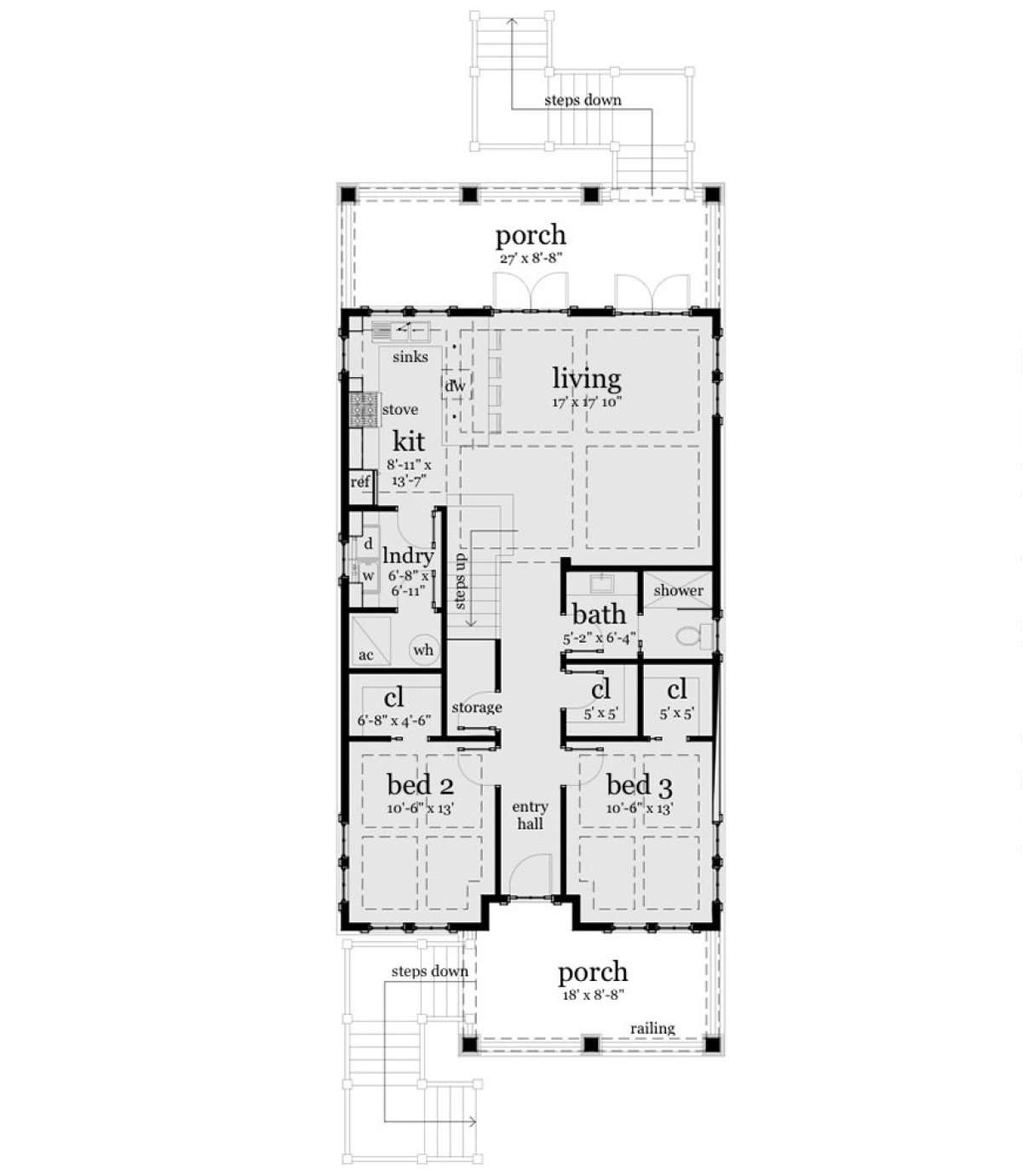

Main Floor
Main Floor for House Plan #028-00101

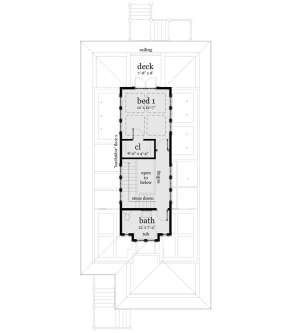

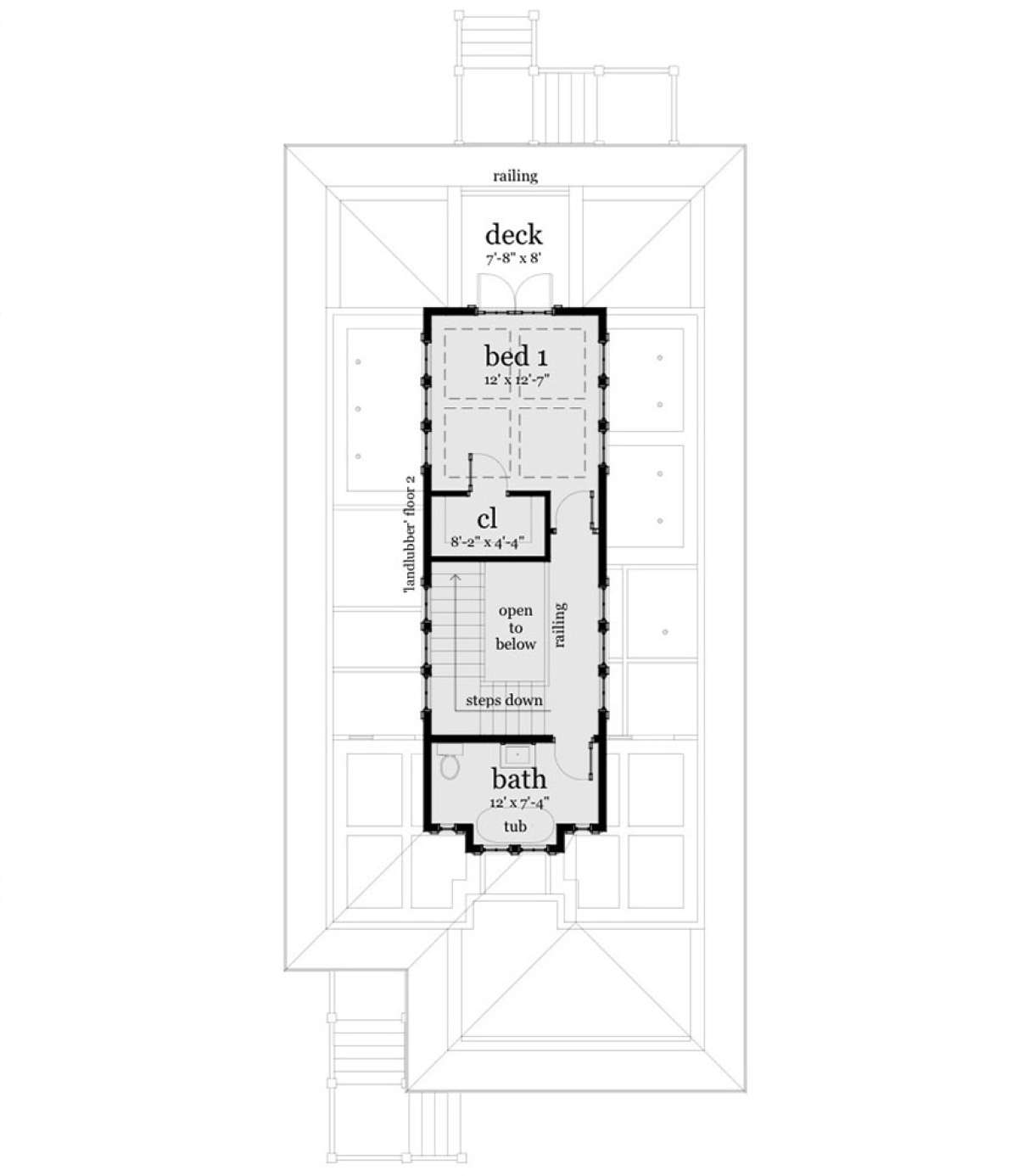

Second Floor
Second Floor for House Plan #028-00101

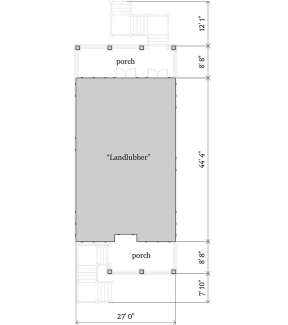

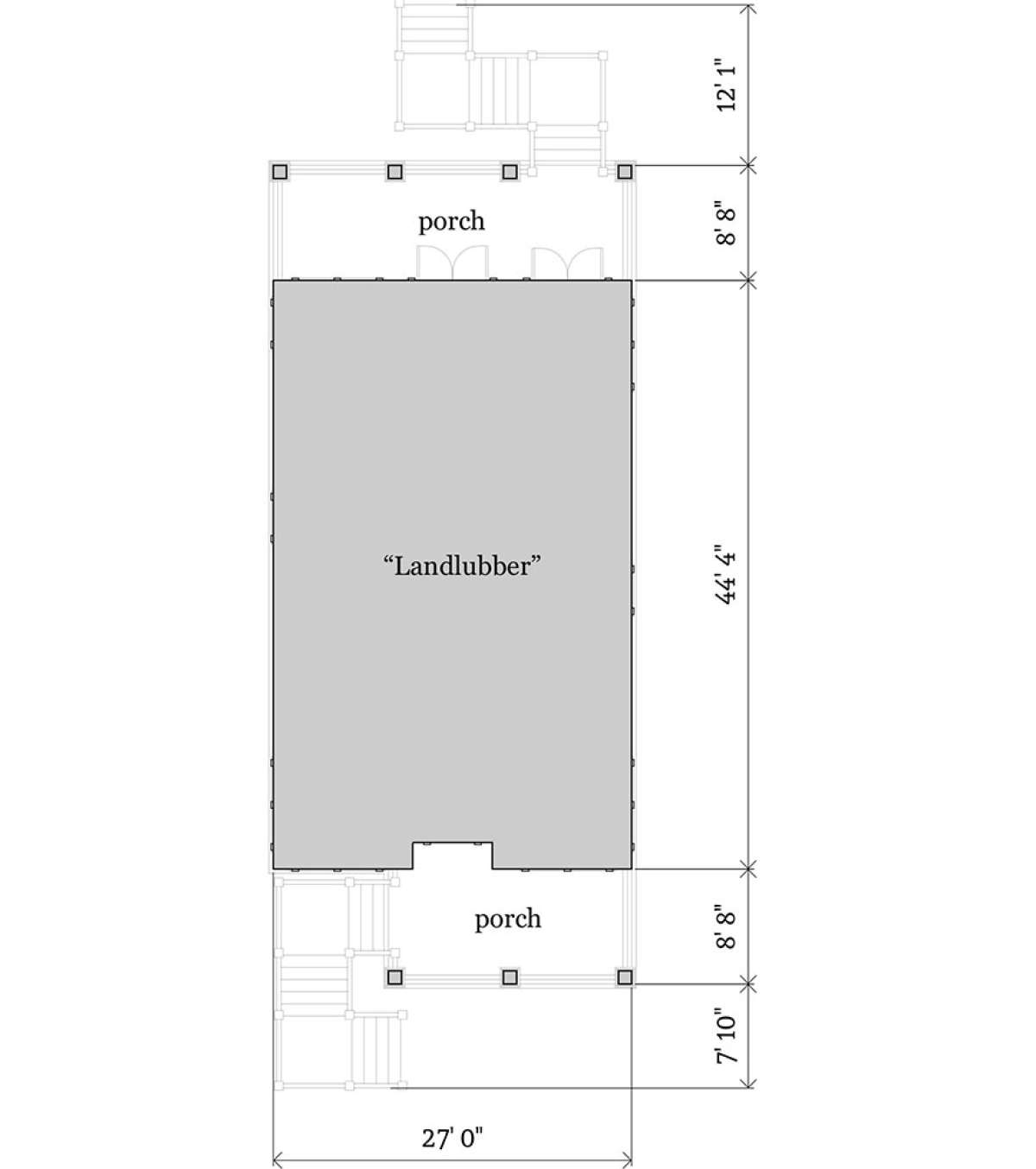

Dimensions
Dimensions  for House Plan #028-00101


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

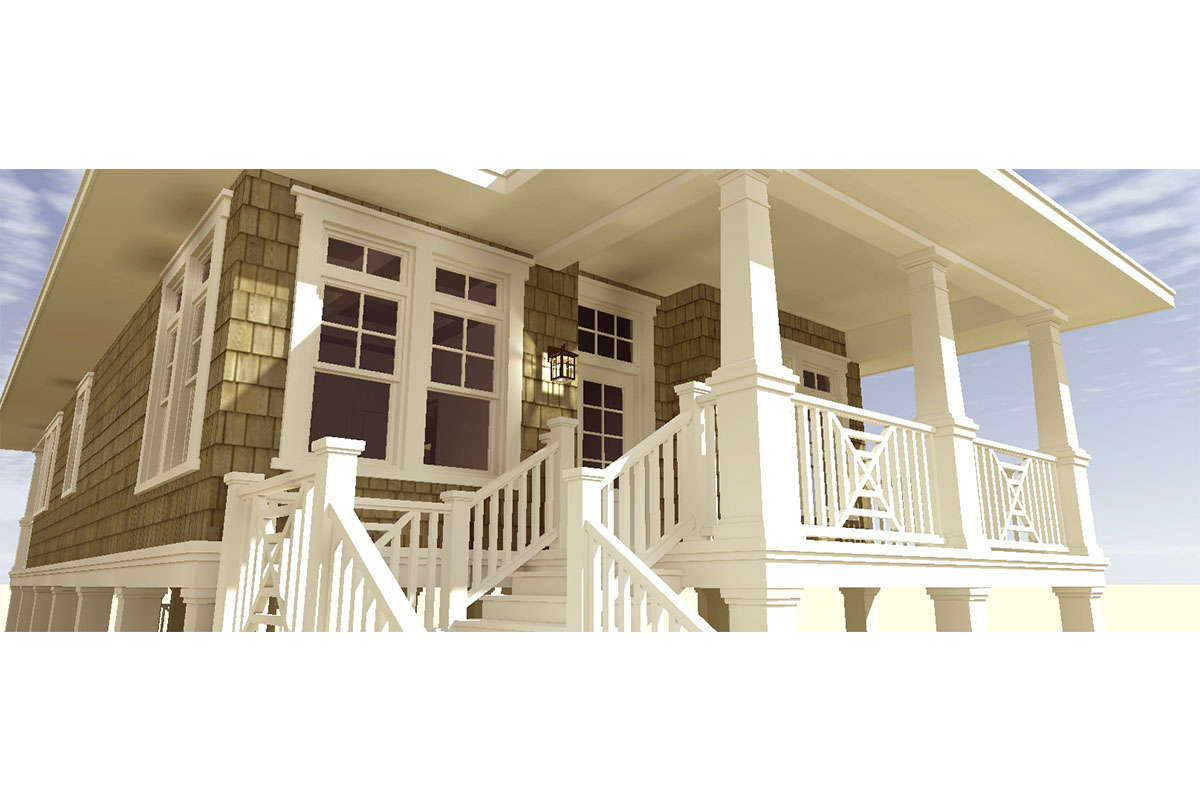

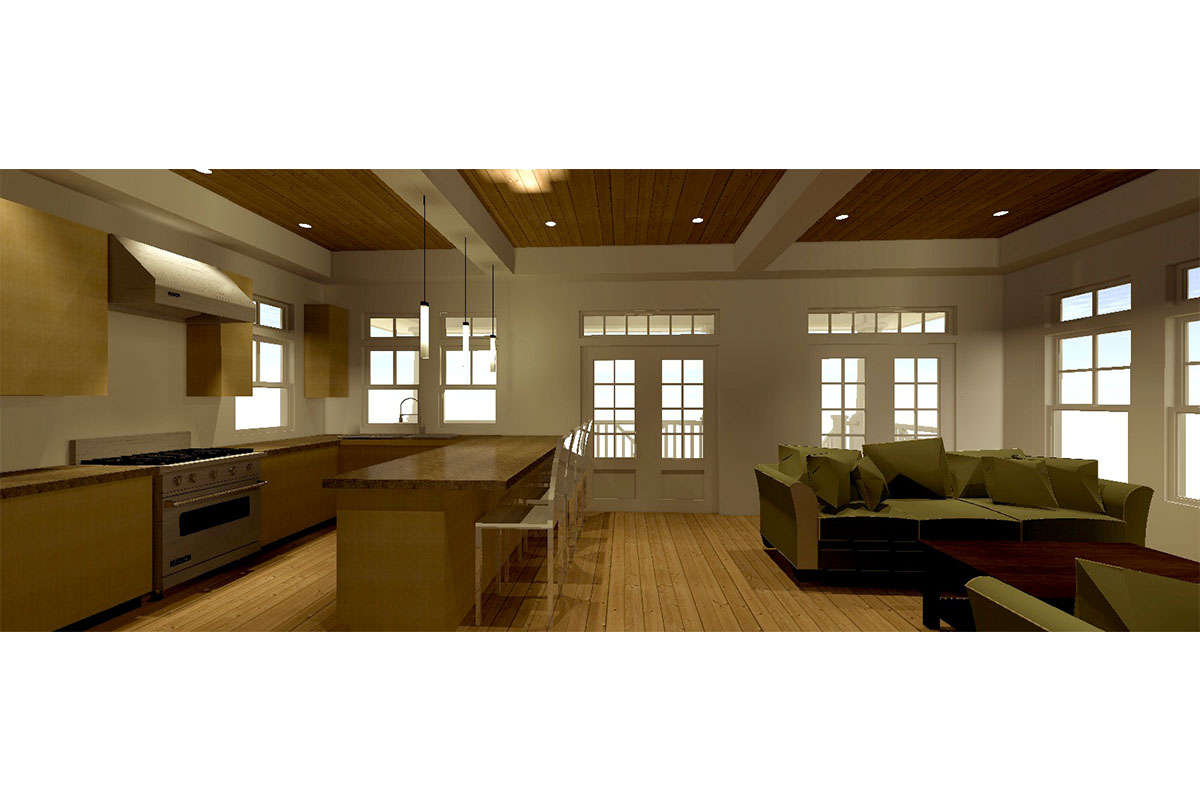

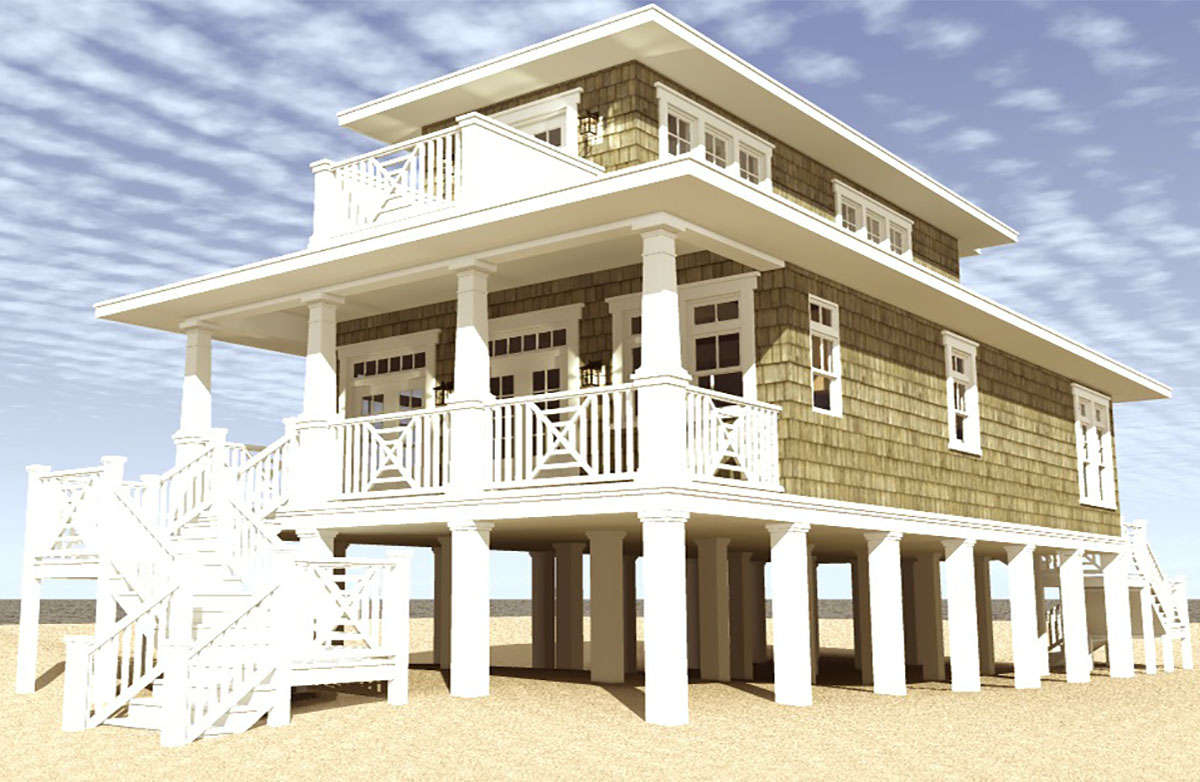

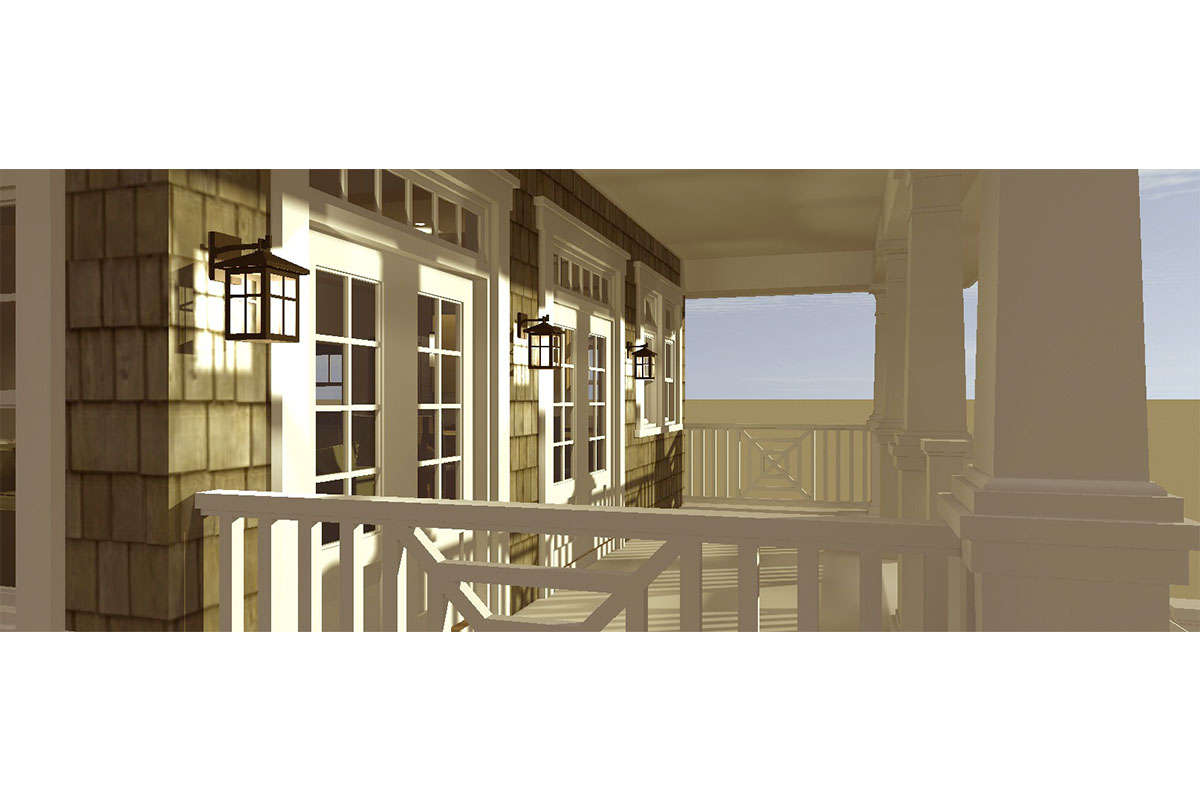

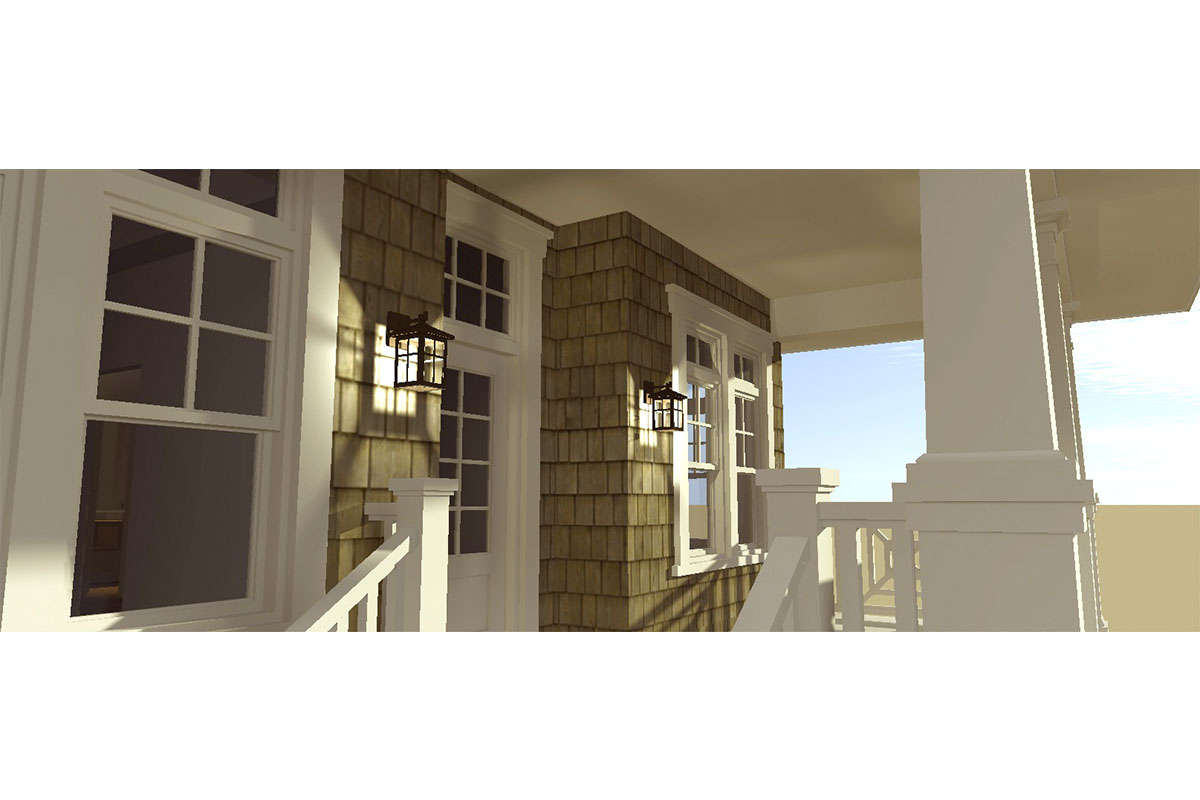

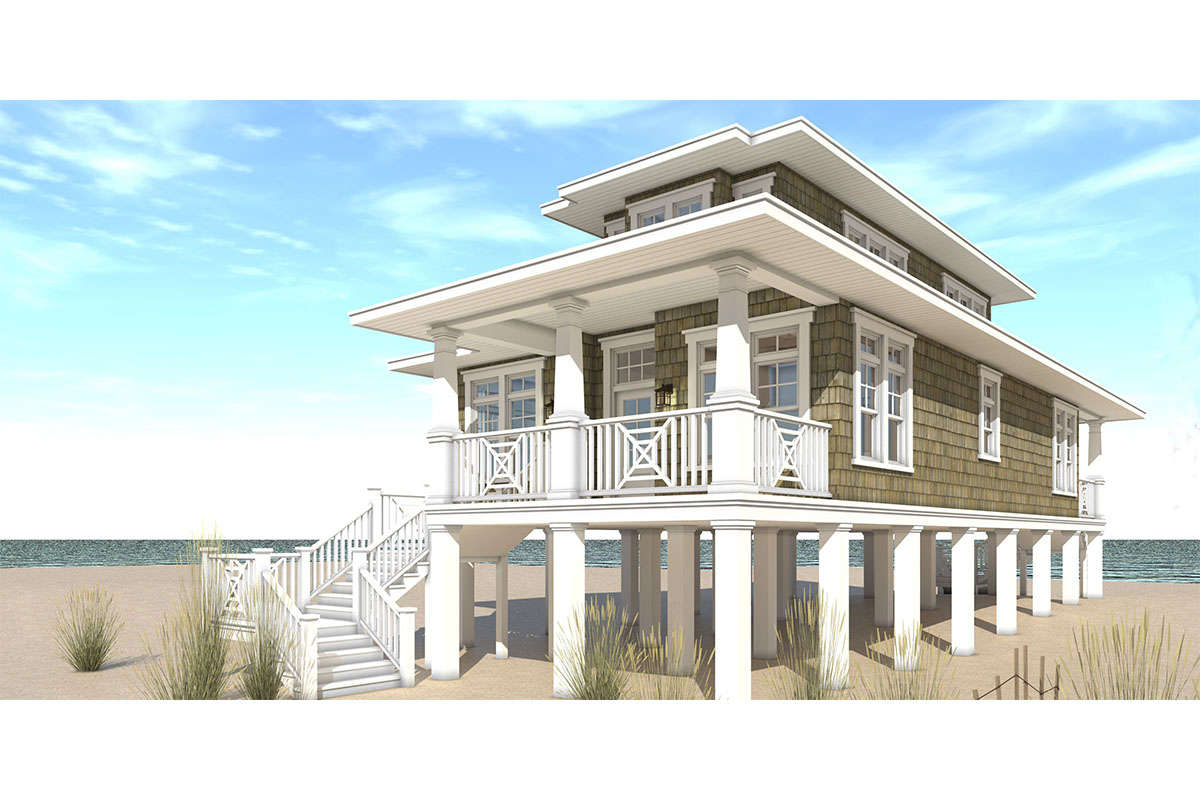

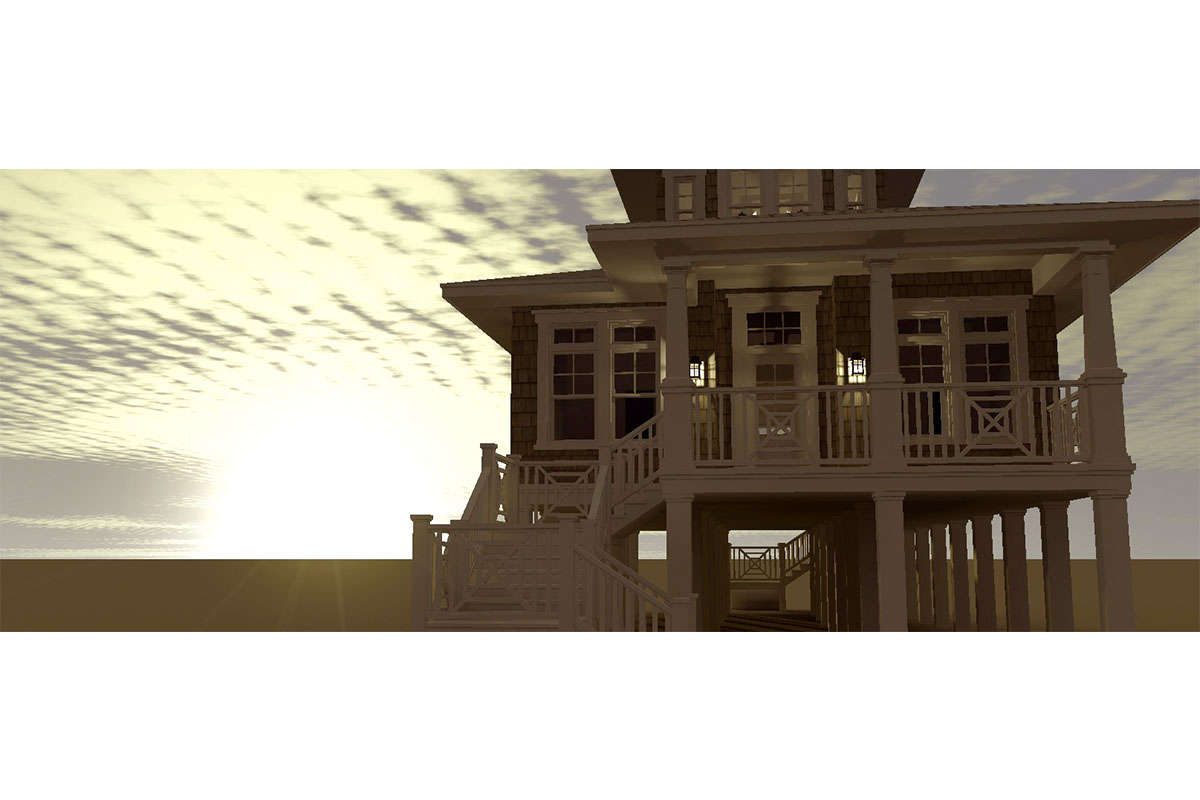

This gorgeous Coastal home features stylish architectural elements, outstanding outdoor space and is ideally suited for a narrow lot. The 27’ width and 62’ depth floor plan is situated on a piling foundation making this a comfortable and cool beach styled house plan. There are three bedrooms and two baths in excess of 1,580 square feet of living space. Cedar shakes, front and rear porches and ornamental staircases highlight the home’s exterior giving the home a timeless beach “vibe.” The interior floor plan is spacious, open and features modern touches which blend beautifully with this coastal cultivated home. The front covered porch provides access into the home through the extended entry hallway which subsequently spills into the common living spaces. The living space is quite large, features decorative ceiling work and double French door access to the rear covered porch for advantageous outdoor or water views. The kitchen is highlighted by an open breakfast bar area, window sink views and a back wall of modern conveniences and additional counter and cabinet space. There is a spacious laundry room situated off the kitchen and additional hall storage and a coat closet.

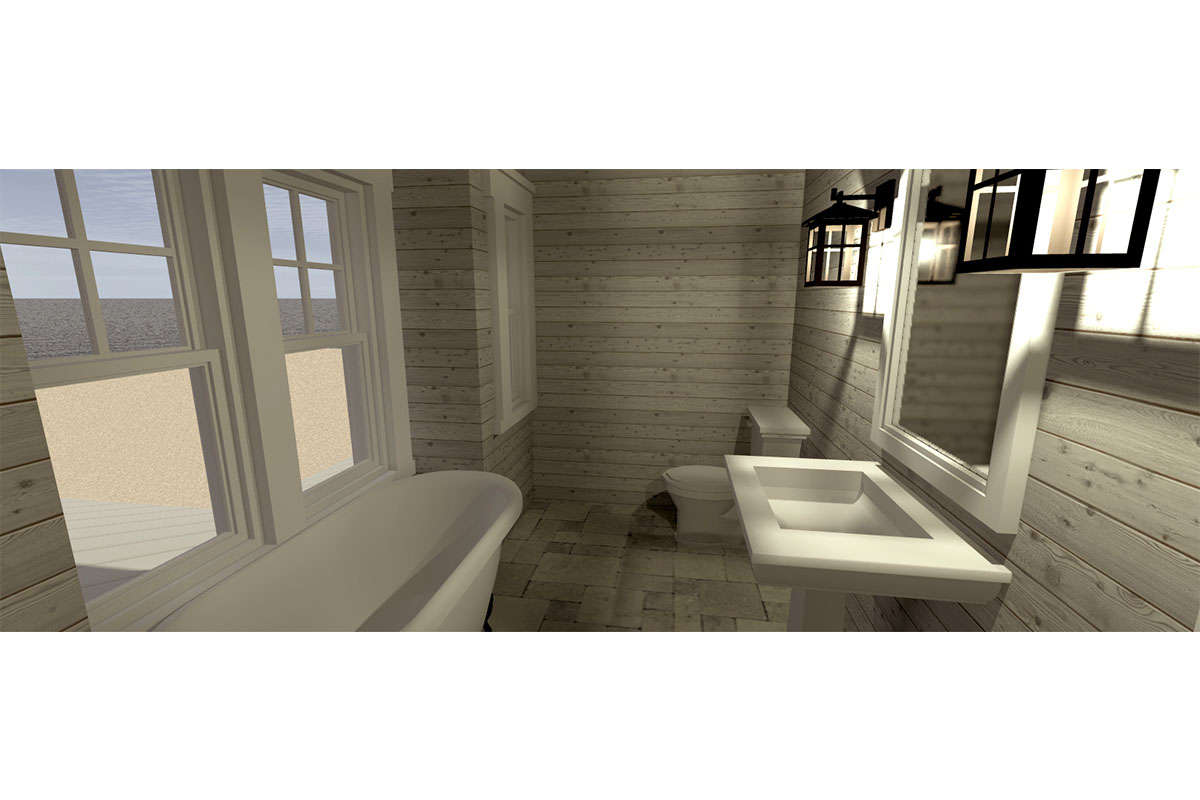

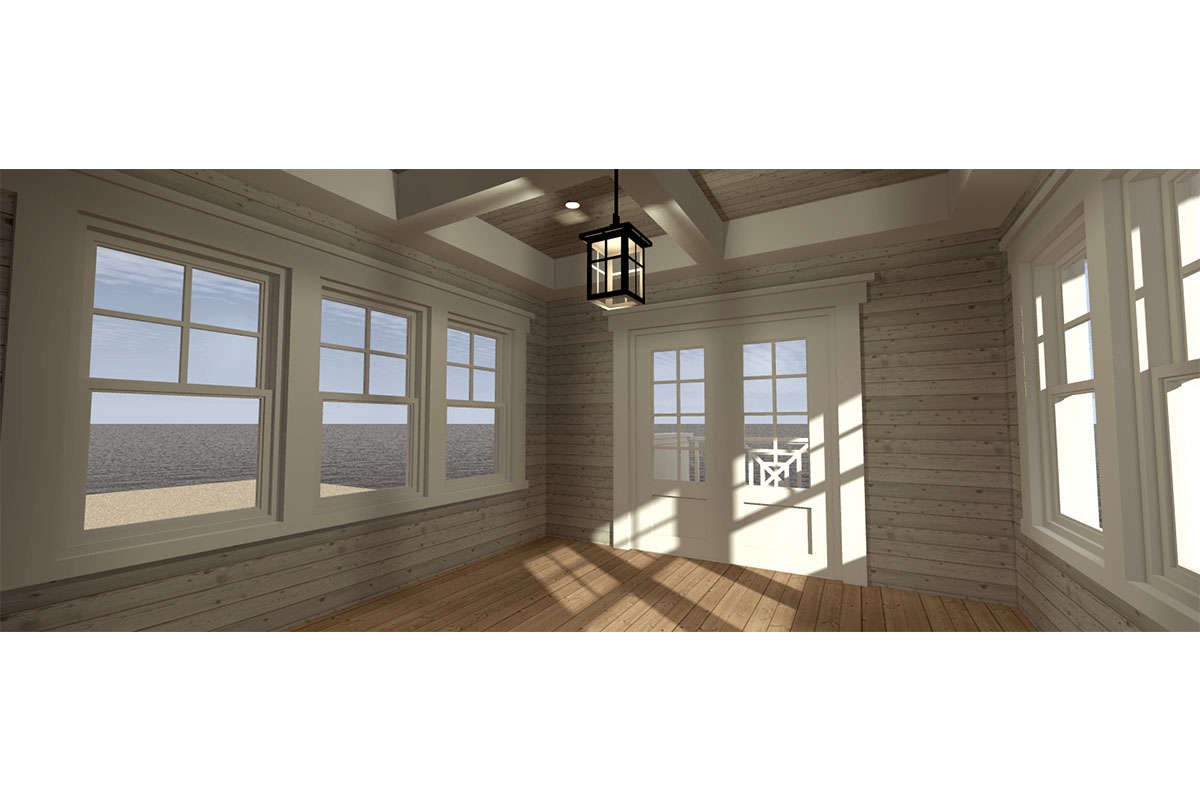

Two equal size bedrooms are on the main floor; both contain ample closet space, have wonderful window views and there is a shared hall bath. The staircase leads to a master retreat which fully occupies the second level of the home and features a balcony and hallway open to the first floor. One end of the hallway boasts of a private bedroom with ornamental ceiling work, wonderful window views, an oversized walk-in closet and access to the second story private deck through French doors. This is a great space in which to enjoy nature, star gaze or; otherwise, relax. The master bath is situated at the other end of the hallway and features a sink and toilet area along with a tub with window views. This impressive home is the ultimate in coastal living featuring a dazzling exterior façade and a comfortable and versatile interior floor plan.
