Coastal House Plan 028-00057

Sq Ft2,054
1/2 Baths0
Width42' 0"
Depth67' 8"

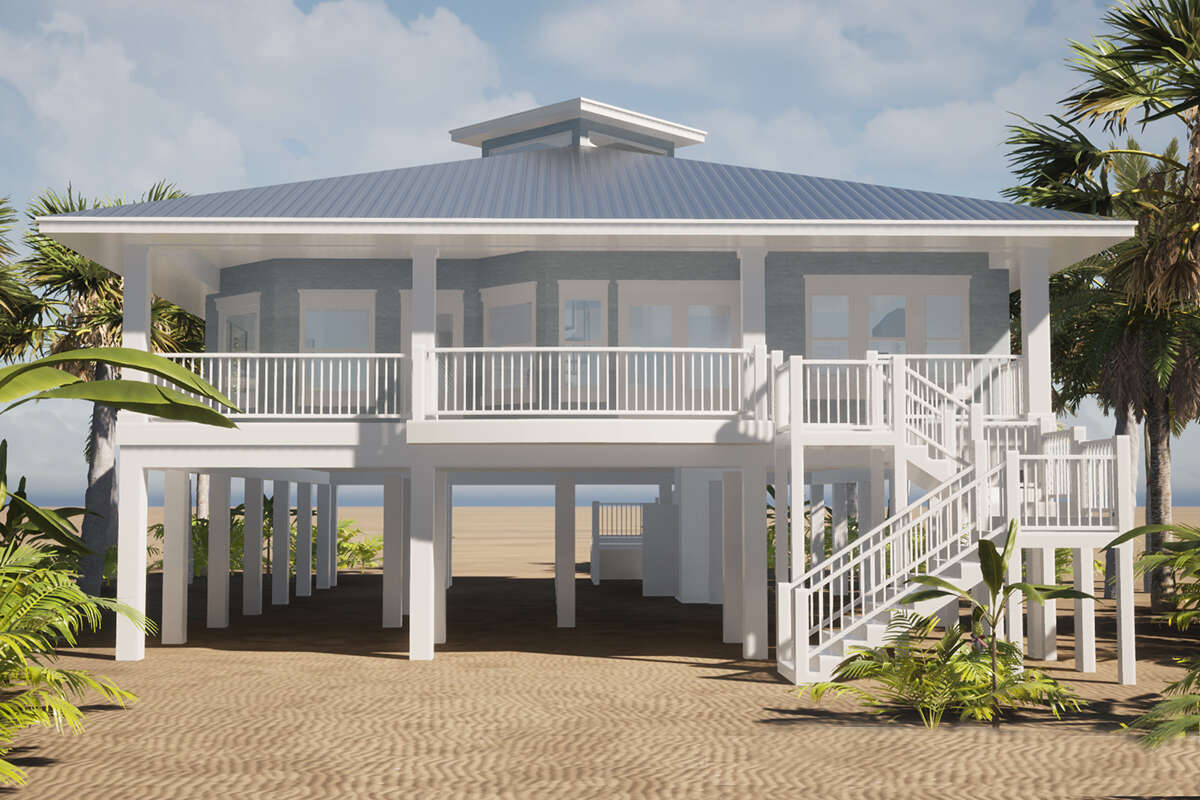

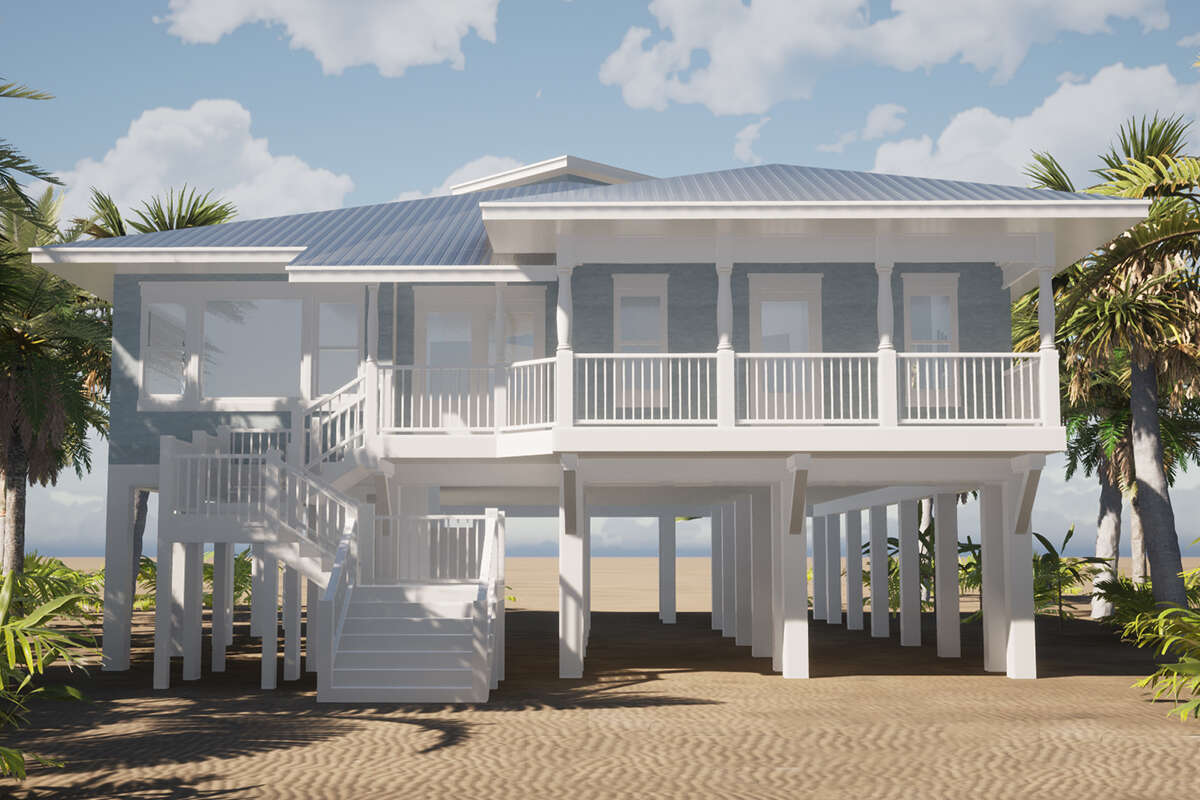

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

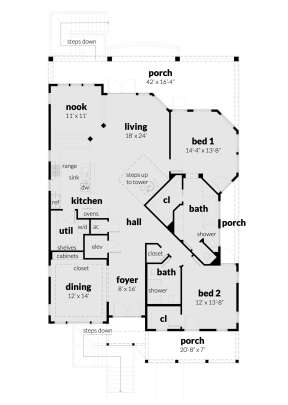

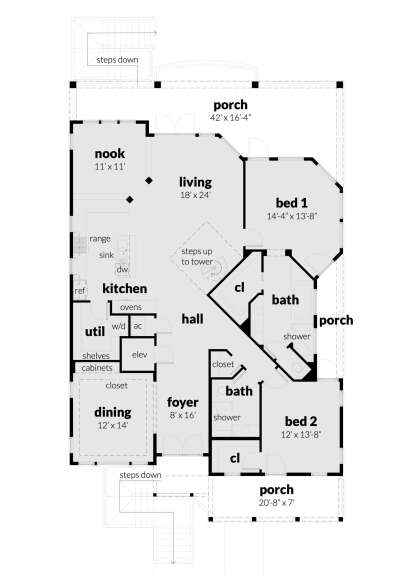

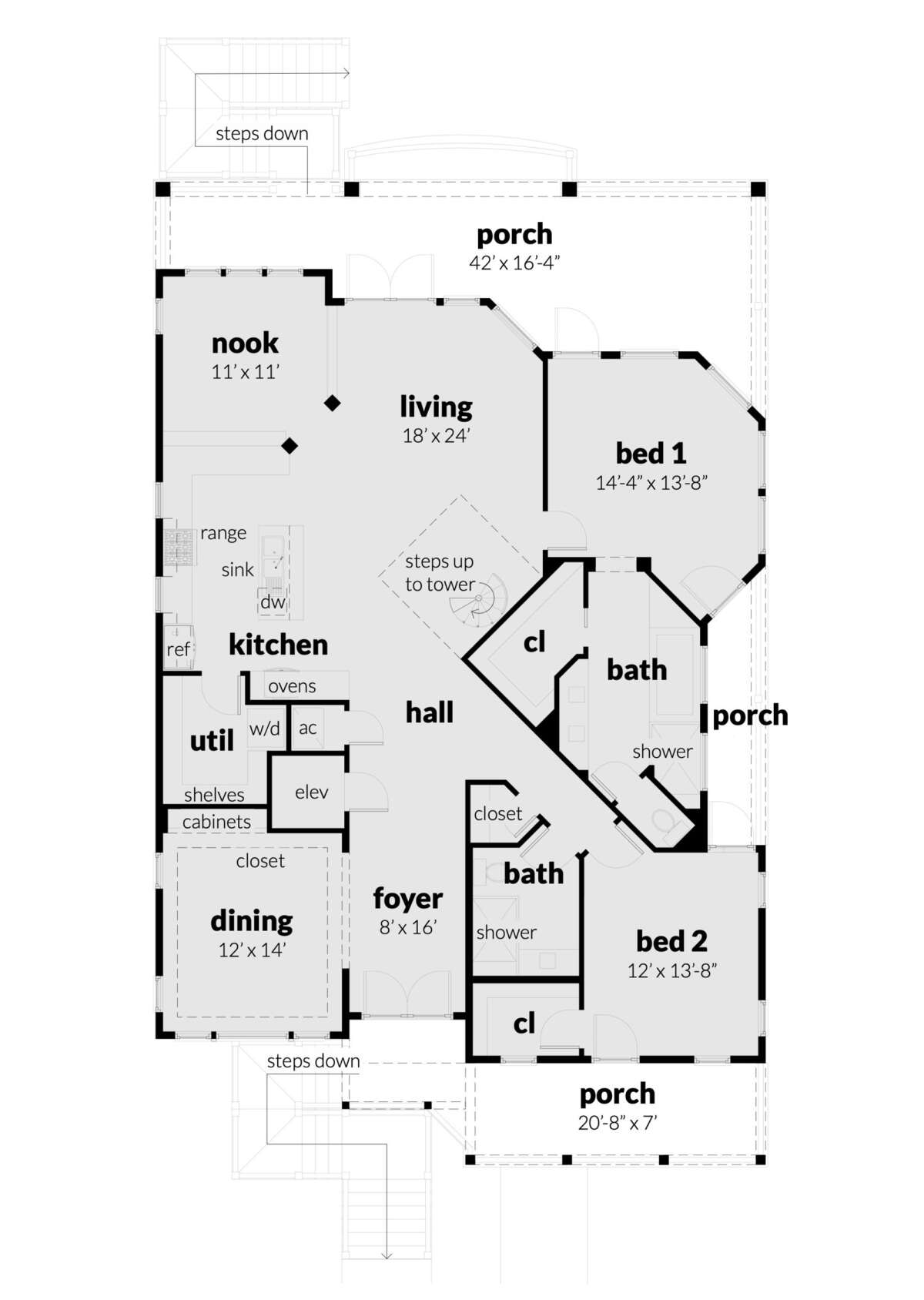

Main Floor for House Plan #028-00057
Main Floor
Main Floor for House Plan #028-00057

Frequently Asked Questions


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Coastal house plan is designed for “easy living” and waterfront access. The pier foundation elevates the home for aesthetic and practical purposes giving the home’s centrally located tower a great vantage point and a bird’s-eye view of the water. Great outdoor space is provided with a large front covered porch highlighted with decorative railing and a winding staircase; the rear lanai and balcony is perfect for enjoying waterfront views and ocean breezes. The symmetry and balance of the home is achieved through the roof lines and tower adding to the charm and appeal of the home. There are two bedrooms and two bathrooms in the 2,054 square foot home making this floor plan ideal for a vacation home, a small family home or empty-nesters. The front covered porch features French door access into the home’s foyer which is spacious and opens onto the formal dining room. This dining room has wonderful window views and a butler’s pantry. The foyer subsequently leads to the open common spaces but not before it passes the home’s elevator; ideal for traveling between the elevated foundation and the home. There is a large family room, measuring 18’x24’, which features French door access to the rear lanai and beyond and tower access, as well. The family friendly kitchen is highlighted by a large center island with breakfast bar and a side breakfast bar area along with an abundance of additional counter and cabinet space. The side breakfast bar opens onto the casual breakfast nook which boasts of great window views to the rear lanai. There is a spacious utility room along with mechanical storage off the kitchen. The second bedroom is spacious with a walk-in closet and private access to the front and side porch. There is an adjacent full bath and hall linen closet. There master suite is a gorgeous design that takes full advantage of its location; a spacious bedroom with an abundance of exterior window views is additionally highlighted with private lanai and side porch access. An arched opening leads to the master bath which features dual vanities, a separate shower, tub and a compartmentalized toilet. The oversized master walk-in closet is adjacent to the bath for privacy and convenience. This beach styled home is properly designed with amazing outdoor space, advantageous window views and a comfortable floor plan.
