Narrow Lot House Plan 009-00124EXCLUSIVE PLAN

Sq Ft2,064
1/2 Baths1
Width28' 0"
Depth57' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

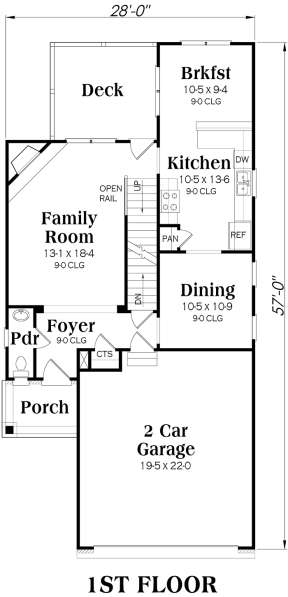

First Floor  for House Plan #009-00124

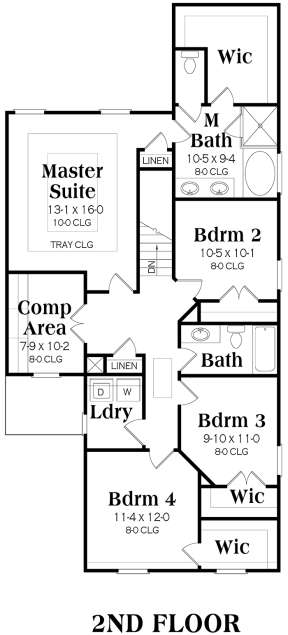

Second Floor for House Plan #009-00124
First Floor
First Floor  for House Plan #009-00124
Second Floor
Second Floor for House Plan #009-00124

Frequently Asked Questions


What's Included in these plans?

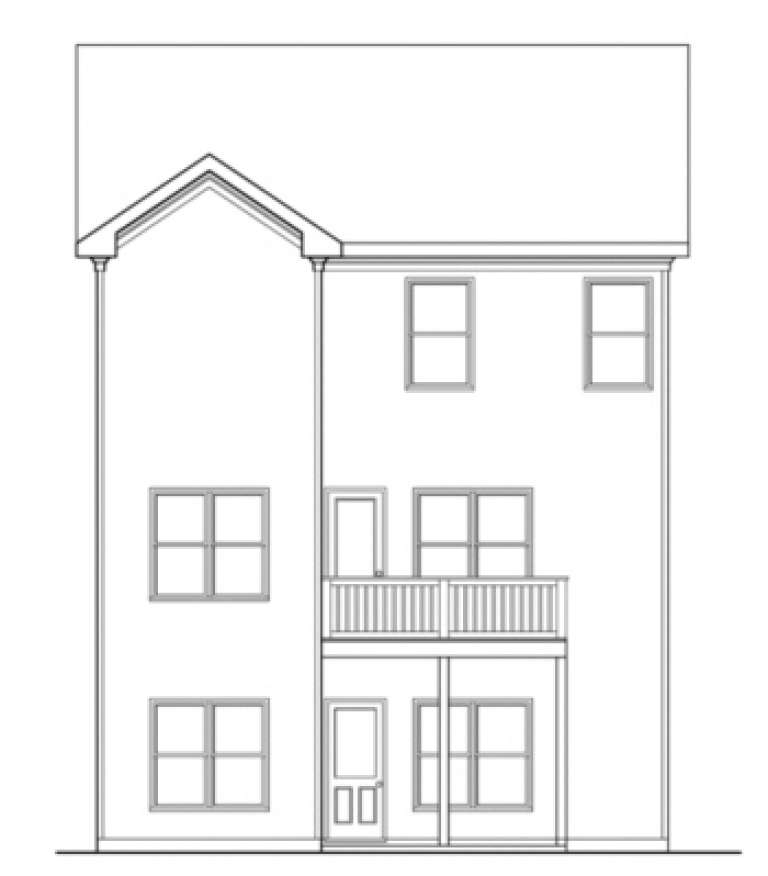

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Roof Plan
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

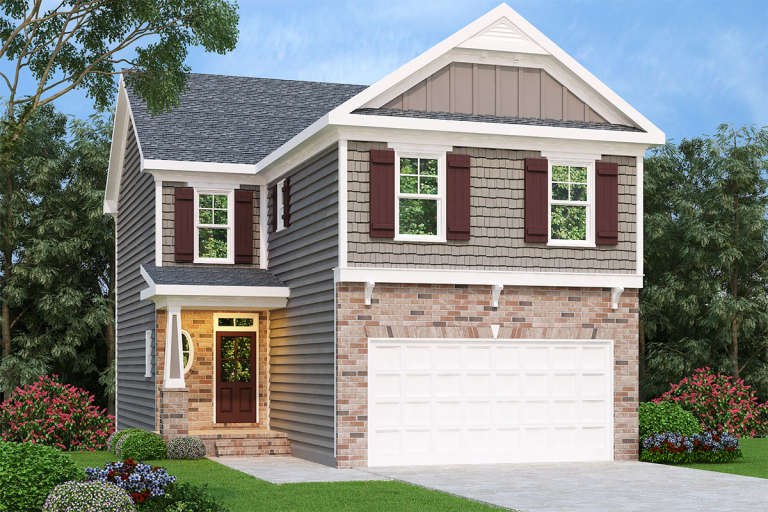

This narrow lot house plan has great style and character both on the exterior and interior. The façade of the home features a covered front porch with a tapered beam accent, exposed brackets, siding, brick and shakes which all combine beautifully to create a striking exterior. The 28’ width of the house plan is ideal for a narrow lot and the option of the unfinished basement foundation potentially increases the home’s square footage. There are four bedrooms and two plus bathrooms in the approximate 2,100 square foot home. A 9’ ceiling foyer opens onto the family room which is enormous with a corner fireplace, has column detailing, great window views and provides rear access to the deck. The family kitchen anchors the formal dining room and casual breakfast room and is highlighted by a breakfast bar, a separate pantry and plenty of additional counter and cabinet space. The breakfast room is bright and airy with rear yard and deck views. A powder room and coat closet for guests along with a two car garage completes the first level of the home. Upstairs, you will find a masterful use of space in this home design. There is a family laundry room on the second floor for ease and convenience. A computer or flex room design is ideal for a home office/study, playroom for the children or a multi-purpose family room. There are three bedrooms; two of which have walk-in closets and the other has ample closet space along with a shared hall bathroom and linen closet. The master suite is situated on the second floor as well and features a spacious bedroom with trey ceiling and an elegant master bath. The master bath is highlighted with dual vanities, a garden tub, separate shower and a compartmentalized toilet. The oversized master walk-in closet is located at the rear of this space for privacy and convenience. This home has an abundance of living space and charm and a great narrow lot house design.
