Narrow Lot House Plan 009-00096EXCLUSIVE PLAN

Sq Ft1,927
1/2 Baths1
Width30' 0"
Depth46' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

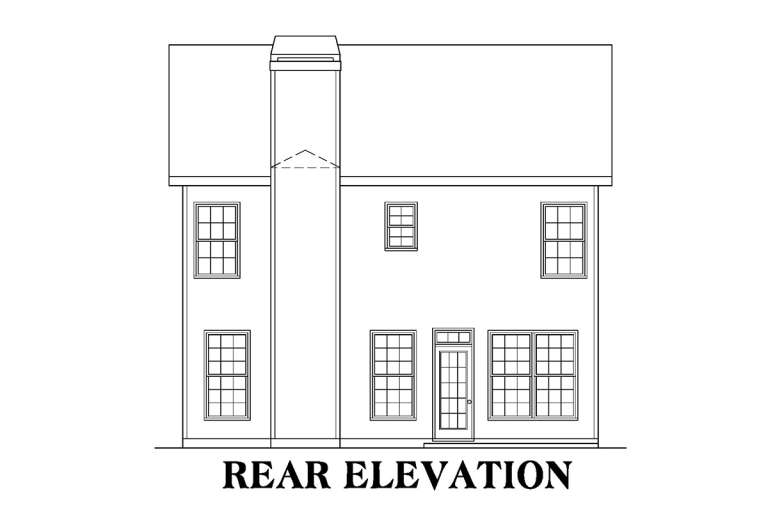

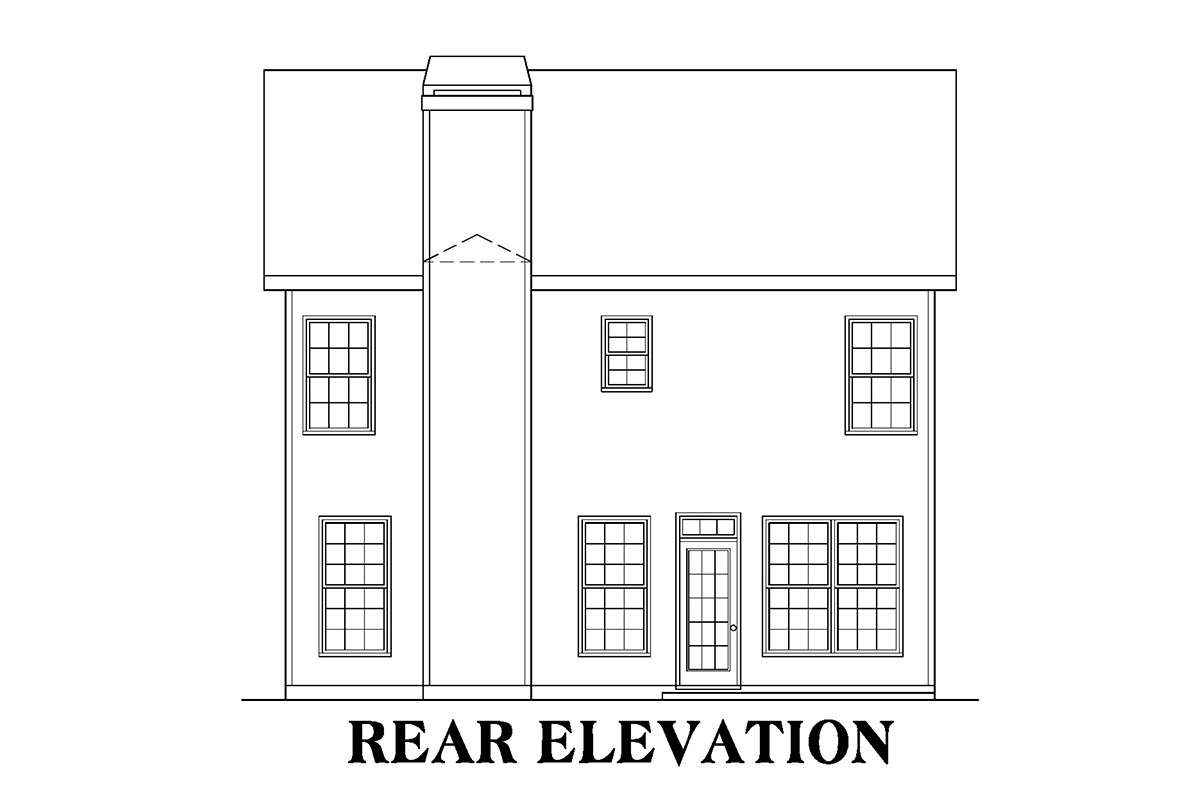

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

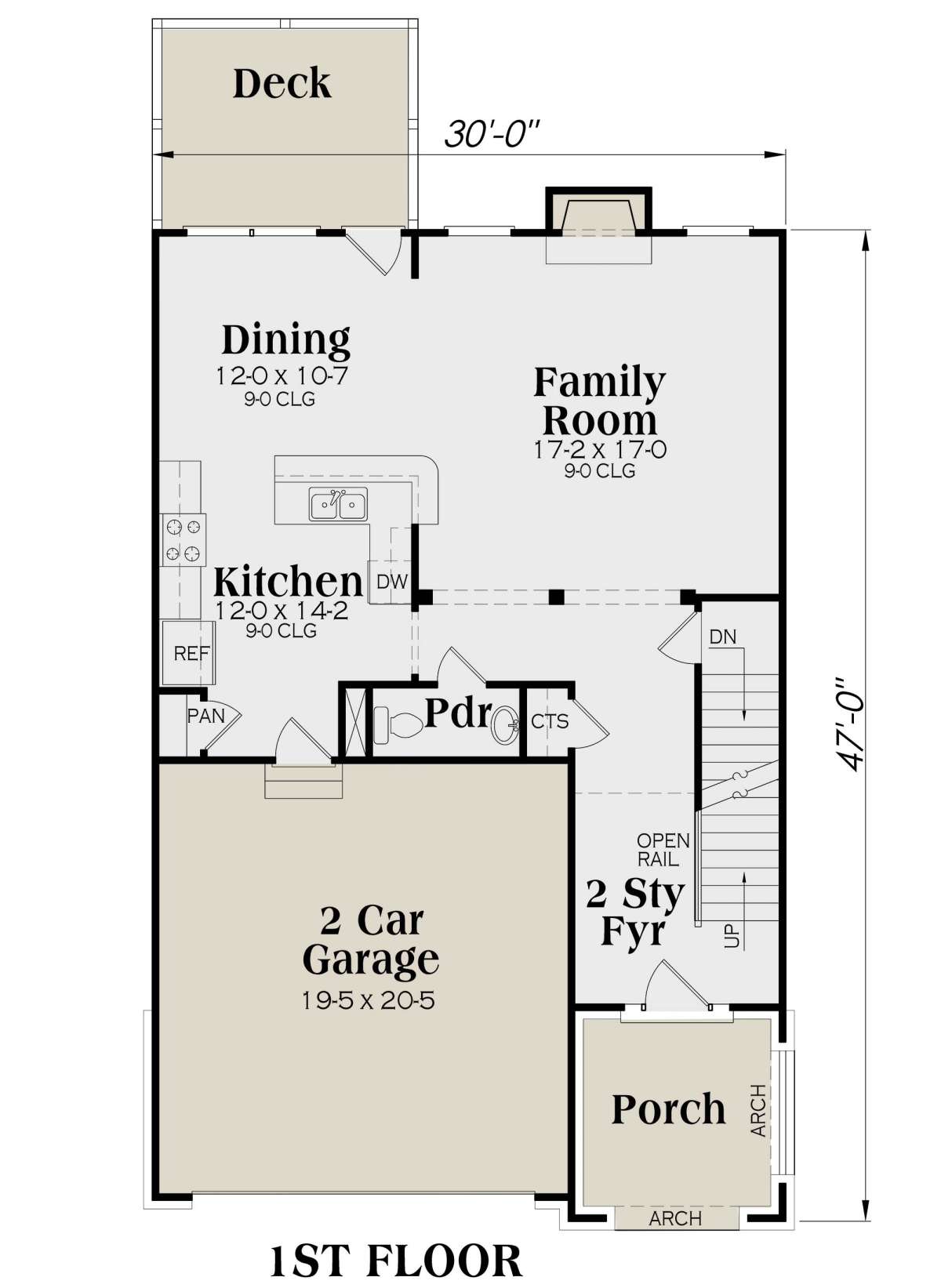

Main Floor for House Plan #009-00096

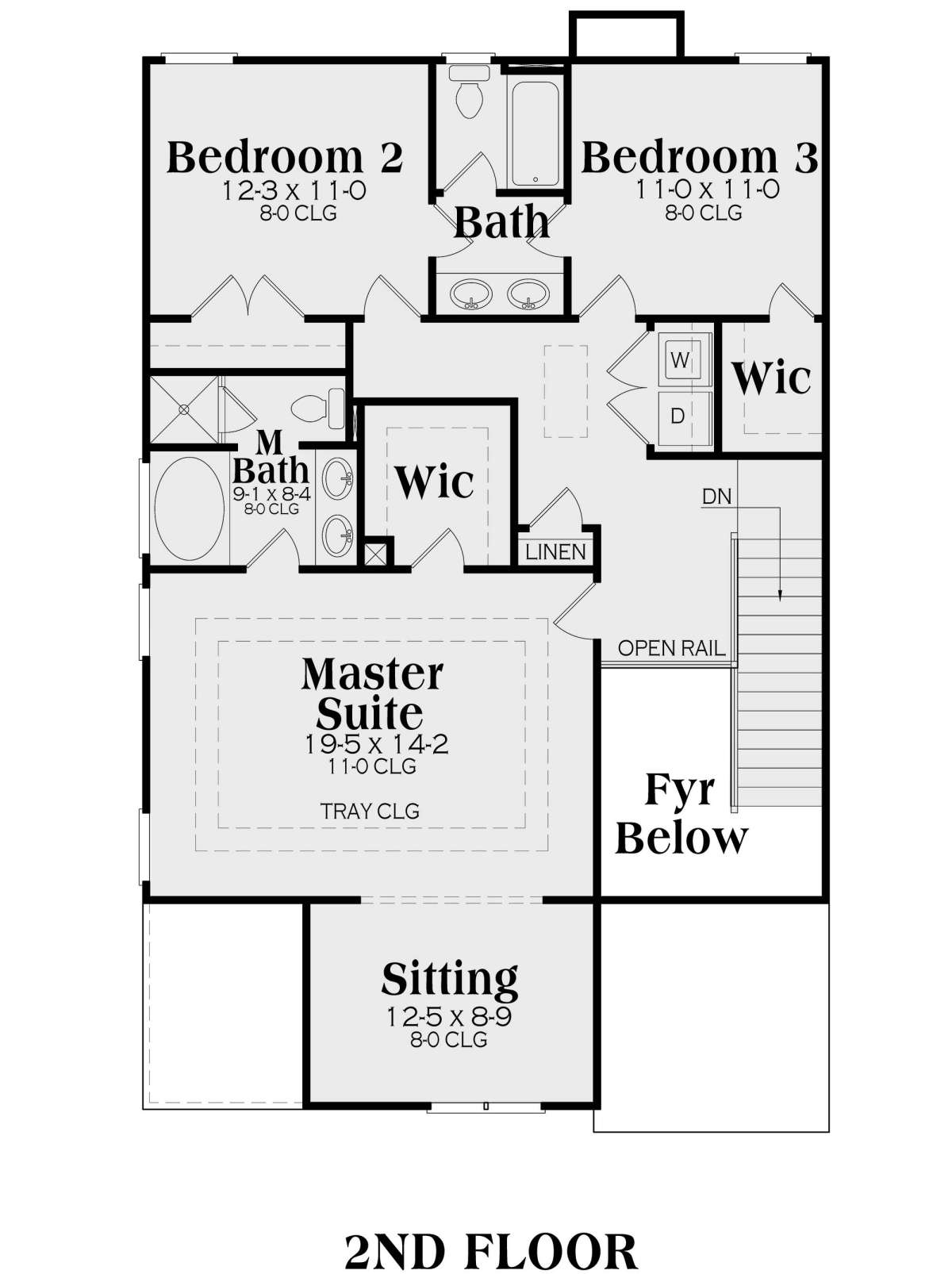

Second Floor for House Plan #009-00096
Main Floor
Main Floor for House Plan #009-00096

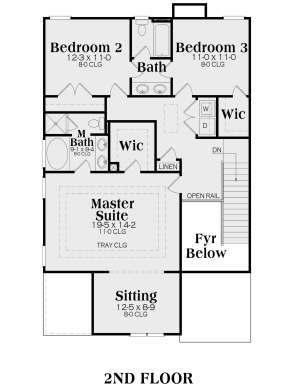

Second Floor
Second Floor for House Plan #009-00096

Frequently Asked Questions


What's Included in these plans?

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Roof Plan
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Tudor styled floor plan is a great design for a narrow lot with a width measurement of 30’. This home has approximately 2,000 square feet with three bedrooms and two plus bathrooms. The exterior façade of the home is comprised of brick, siding, trim on the front gable and a fantastic entrance. The brick covered entryway is highlighted with arches and a multitude of window accents surrounding the front door; it is a great space in which to greet family and friends into your home. The dramatic two story foyer houses the side staircase and leads into the enormous family with a rear wall fireplace flanked by window views; add in column detailing and you have the perfect space for entertaining. The dining room is open to both the family room and kitchen and provides access to the rear patio. The kitchen features a separate pantry, breakfast bar and plenty of additional counter and cabinet space. A two car garage, powder room for guests and a coat closet completes the first floor of the home. Open railing highlights the staircase and leads to the family sleeping area. There are two spacious bedrooms; one contains ample closet space while the other has a walk-in closet. There is a shared jack and jill bathroom with double vanities, a hall linen closet and the laundry nook is situated on this floor for convenience. The master suite has a grand design with contains a master bedroom which is quite large and a separate sitting area with gorgeous window views. The oversized walk-in closet sits at the rear of this space for privacy. The master bath features dual vanities, a separate shower, garden tub and private toilet area. This home is ideally suited for a narrow lot; however, it is a perfect floor plan for any size lot with its abundance of modern amenities, functional floor plan and handsome exterior facade.
