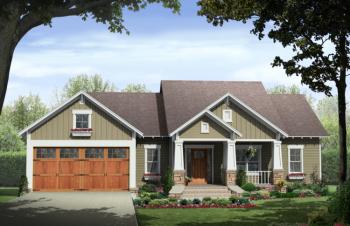

Craftsman House Plan #348-00169 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,509

Beds 3

Bath 2

1/2 Baths 0

Car 2

Stories 1

Width 61'

Depth 47' 4"

See What's Included

Return Policy, Building Code & Copyright Info

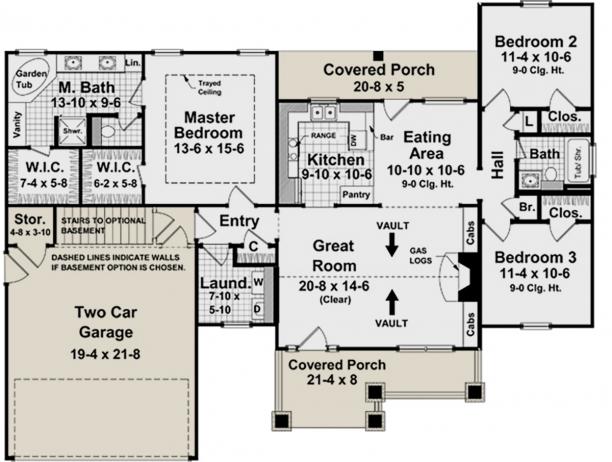

Floorplan Drawings

REVERSE PRINT DOWNLOAD

Main Floor

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet
Showing architectural rendering of residence.
Floor Plan(s)
In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
Foundation Plan and Details
Each house plan set includes one foundation type.
Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
Foundation types typically offered: (each type may or may not be available for a given design)
-Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
-Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
-Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
Electrical Plan with electrical symbols legend
In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
Roof Drainage Plan
In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
Exterior Elevations
In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
Interior Elevations
Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
License to Build
Each set of construction plans include ONE license to build.
If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
Plans include relevant building sections and details.

Ask Us A Question

About This Plan

This home is the quintessential American dream home with three bedrooms, two baths, and a two car garage. Typically the Craftsman garage is a paneled wooden door with windows arranged in a distinctive pattern of multi-row windows and this house plan features a master crafted garage in this architectural style. This Craftsman house comes in at a compact 1,509 square feet; however, the floor plan is highly functional and comfortable. This Craftsman bungalow is a single story home and features an inviting covered front porch where you can relax and greet your guests.

From the front porch, you enter the vaulted great room which is an impressive size, contains a gas log fireplace, built-in cabinetry and opens onto the eating area. The breakfast room has a rear window for light, access to the covered rear porch and is adjacent to the kitchen. The kitchen is a chef’s dream with all the modern conveniences you desire; an abundance of counter and cabinet space, a separate walk-in pantry and a window sink that looks out onto the rear porch and yard. There is a large laundry room off the two car garage as well as a coat closet. This is a convenient space in which to maintain your family and home’s appearance and cleanliness. The two car garage is spacious with additional storage at the rear of the space for lawn and sports equipment. This house comes with an optional basement plan which would an abundance of space for future expansion. The floor plan features the ever popular split bedroom plan with the primary suite on one side of the home while the additional two bedrooms are located on the opposite side. Two bedrooms, both equal in size and both having a walk-in closet share a hall bath. The hall bath has a tub/shower combination and if flanked on either side by a linen and broom closet. The owner's suite has a beautiful trey ceiling bedroom which is large and enjoys double window views to the rear yard. The en suite bathroom features a spacious footprint and is highlighted by dual vanities, a linen closet, additional vanity space, and a compartmentalized toilet. Additionally, there is a corner garden tub and a separate shower. Expansive his and her walk-in closets are situated at the rear of the homeowner's bath. This home is both stylish and built in the iconic American Craftsman style which will provide years of enjoyment and pride for your family and their lifestyle.
