Ranch House Plan #348-00042 Elevation Photo

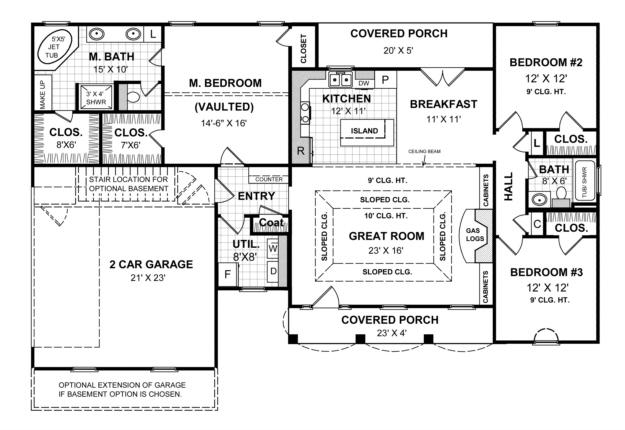

Main Floor w/ Basement Stair Location for House Plan #348-00042

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,654

Beds 3

Bath 2

1/2 Baths 0

Car 2

Stories 1

Width 64'

Depth 39'

See What's Included

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

Main Floor

Main Floor w/ Basement Stair Location

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet
Showing architectural rendering of residence.
Floor Plan(s)
In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
Foundation Plan and Details
Each house plan set includes one foundation type.
Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
Foundation types typically offered: (each type may or may not be available for a given design)
-Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
-Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
-Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
Electrical Plan with electrical symbols legend
In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
Roof Drainage Plan
In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
Exterior Elevations
In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
Interior Elevations
Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
License to Build
Each set of construction plans include ONE license to build.
If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
Plans include relevant building sections and details.

Ask Us A Question

About This Plan

This home design is truly functional, innovative and affords many luxuries and amenities offered in much larger homes. The covered front porch leads into the massive great room with a 9â€™ high sloped ceiling, gas log fireplace and built-in cabinets for storage. The kitchen and breakfast areas are highlighted at the back of the house and feature a large island with a raised bar and access to the rear covered porch. The popular split bedroom plan includes two bedrooms with walk-in closets, a bath and linen closet on one side of the home while the master is located on the opposite for privacy and convenience. The master suite is high end and truly luxurious with a large vaulted ceiling in the bedroom, two oversized walk-in closets and a bath that includes a corner jetted tub, separate shower, compartmentalized toilet, dual vanities and a separate make up area. The two car garage leads in the laundry area which includes enough space for an additional fridge/freezer allowing you to maximize your homeâ€™s space. There is also an option for a basement space which makes this home family friendly and design functional.
