House Plan 286-00017
|
View the Floorplan

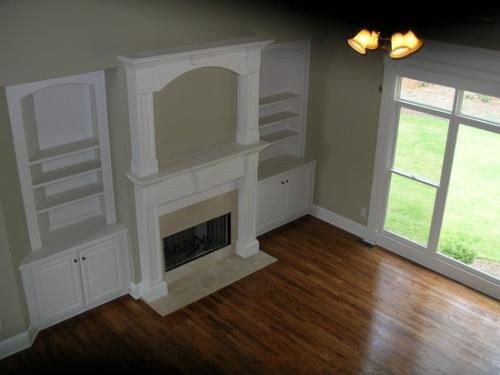

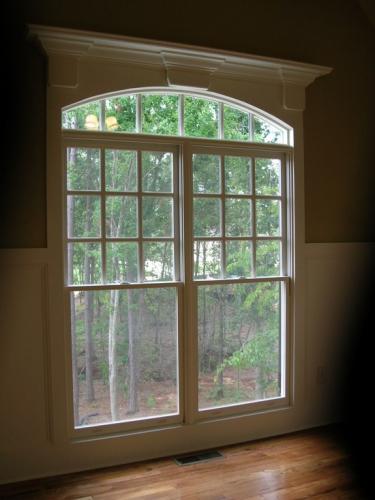

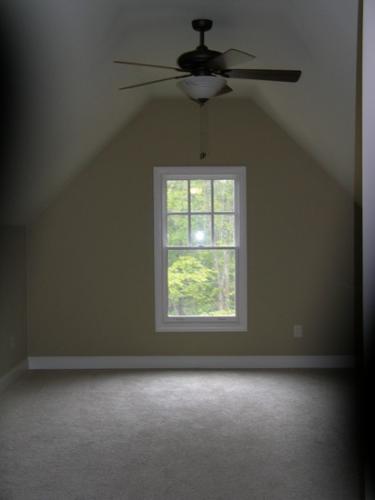

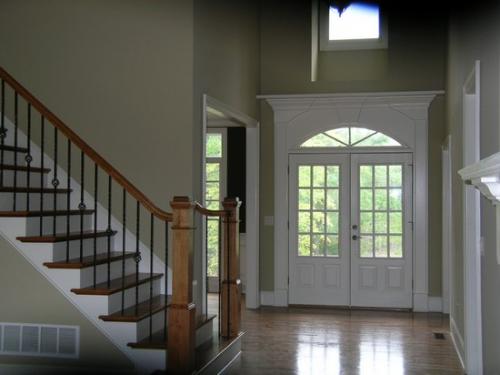

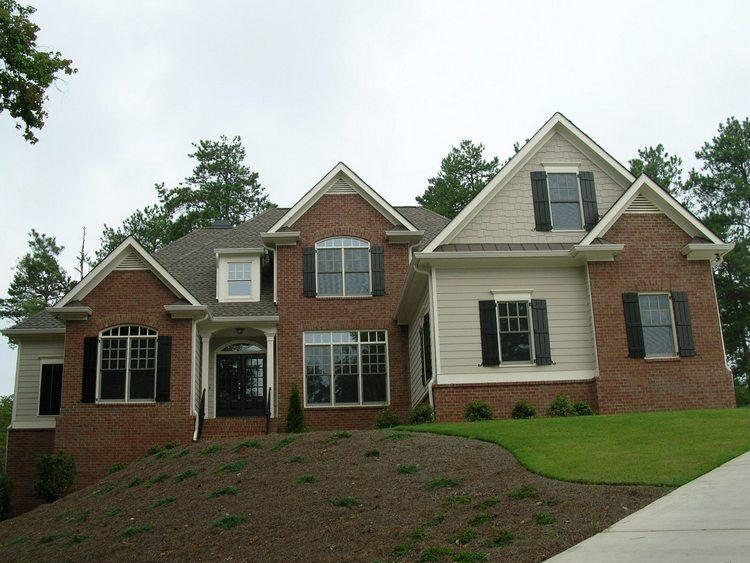

Photos
Click to view photos full size.
Great views off rear -- good for lake, mountain, or golf course location.
Features
Additional Rooms
Formal Living Room
Home Office
Jack and Jill Bathroom
Keeping Room
Laundry On Main Floor
Master On Main Floor
Study
Garage Type
Side Entry
Porch Type
Front
|
|
| Square Footage: | 3,025 sq. ft. |
| First Floor: | 2,039 sq. ft. |
| Second Floor: | 986 sq. ft. |
| Garage: | 734 sq. ft. |
| Floors: | 1.5 |
| Bedrooms: | 4 |
| Bathrooms: | 3 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 64ft. |
| Depth: | 57ft. |
| Height: | 29ft. |
| Main Roof Pitch: | 12:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Basement Foundation: |
64
x 57-4
x 10
|
| Bathroom 2: |
11-4
x 7
x 8
|
| Bathroom 3: |
8-8
x 6
x 8
|
| Bedroom 2: |
13
x 14
x 8
|
| Bedroom 2 Closet: |
4-10
x 8-10
x 8
|
| Bedroom 3: |
12
x 16-4
x 8
|
| Bedroom 3 Closet: |
4-2
x 8
x 8
|
| Bedroom 4: |
14
x 12
x 8
|
| Bedroom 4 Closet: |
8-8
x 4-4
x 8
|
| Breakfast Room: |
13-4
x 10
x 9
|

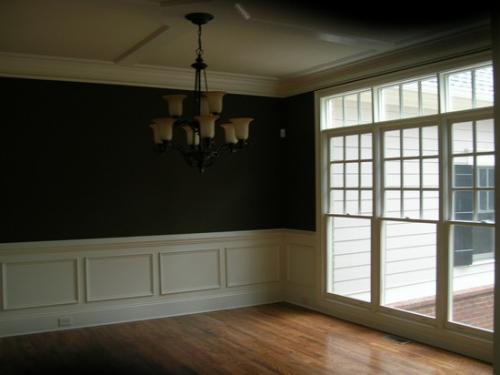

| Dining Room: |
13
x 14
x 9
|
| Foyer: |
8
x 10-4
x 16
|
| Front Porch: |
8
x 4
|
| Garage: |
23
x 32
x 9
|
| Keeping Room: |
12
x 13-8
|

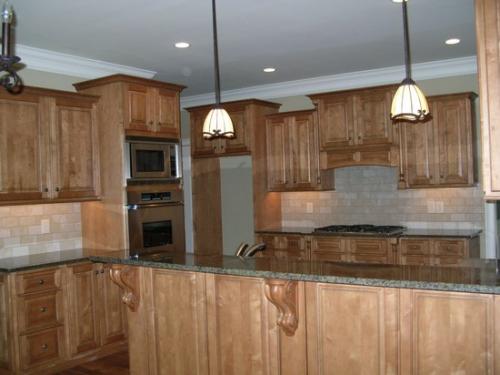

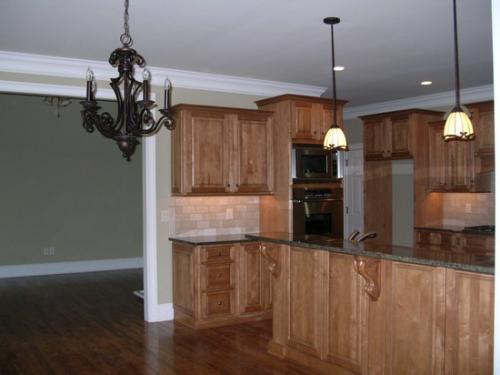

| Kitchen: |
13-4
x 12-4
x 9
|
| Laundry Room: |
7
x 8
x 9
|

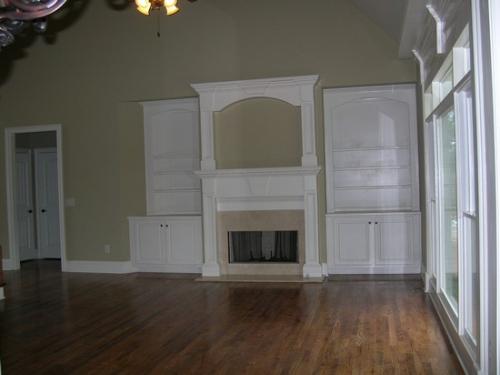

| Living Room: |
18
x 18
x 18
|

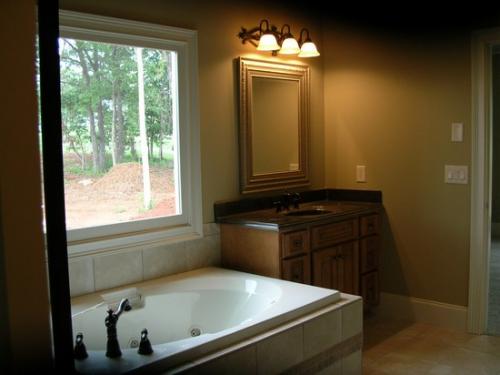

| Master Bathroom: |
12
x 14
x 11
|
| Master Bedroom: |
17
x 13
x 11
|
| Master Closet: |
7-2
x 6-4
x 9
|
| Master Closet Two: |
7-2
x 5
x 9
|
| Pantry: |
4
x 2
x 9
|
| Powder Room: |
6-4
x 3-6
x 9
|
| Study/Bedroom: |
11-6
x 13
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
Reproducible: $1,200.00
CAD Files: $1,300.00
Additional Options
Right Reading Reverse Set: $200.00
|

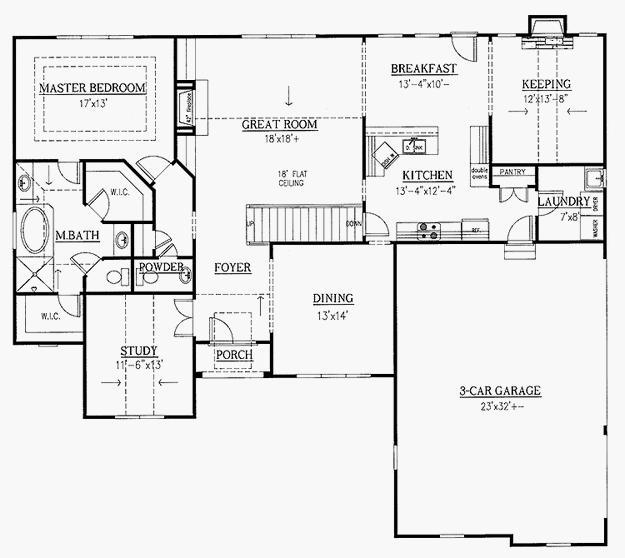

Floorplan 1
Images Copyrighted by Designer

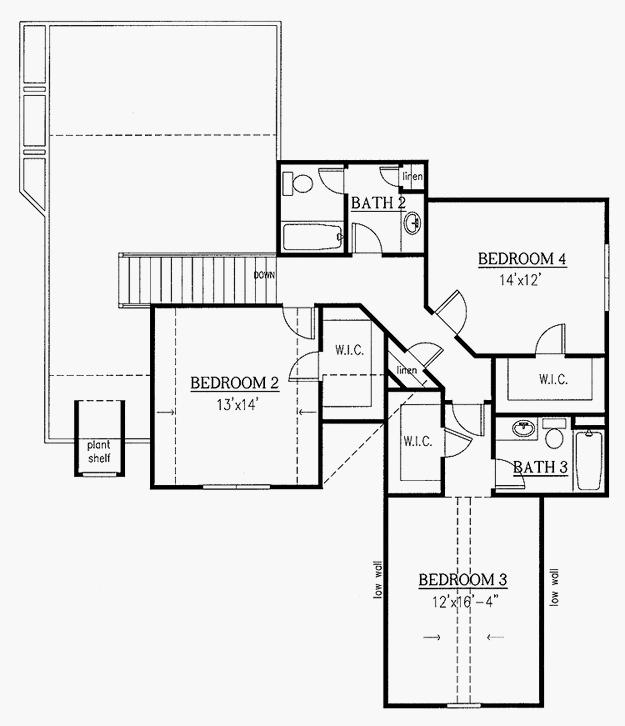

Floorplan 2
