House Plan 286-00005
|
View the Floorplan

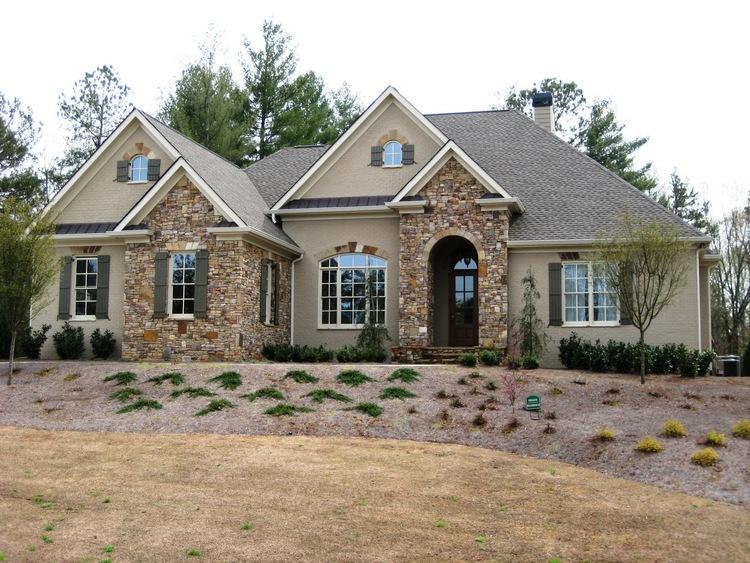

Front Elevation Garage View Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.

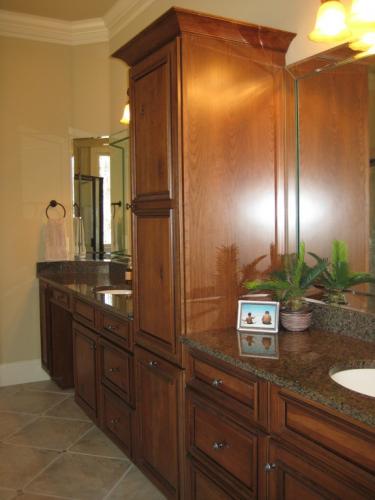

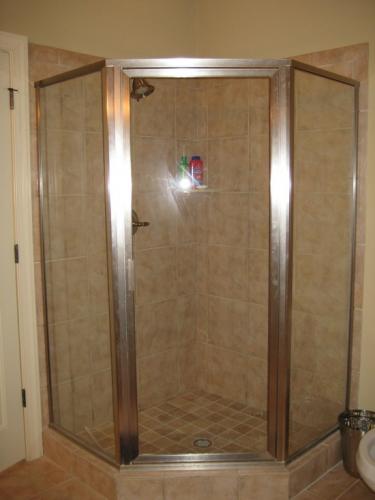

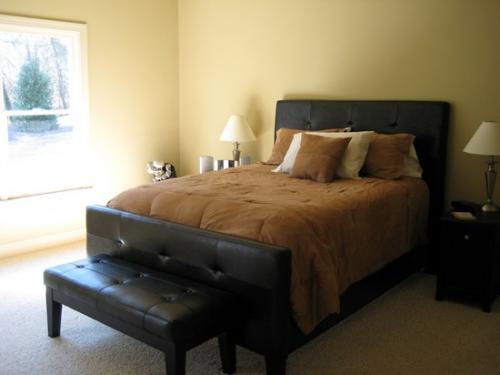

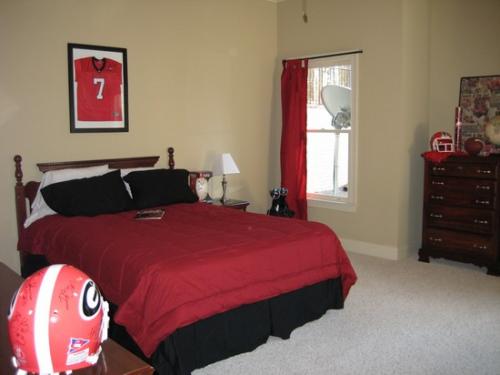

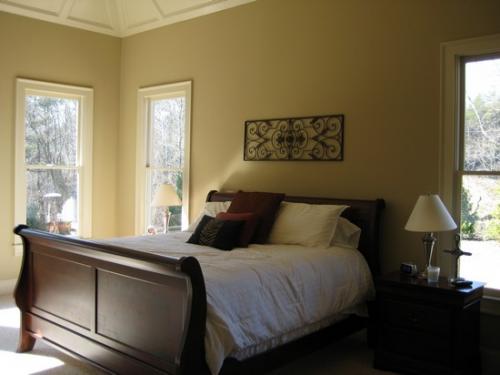

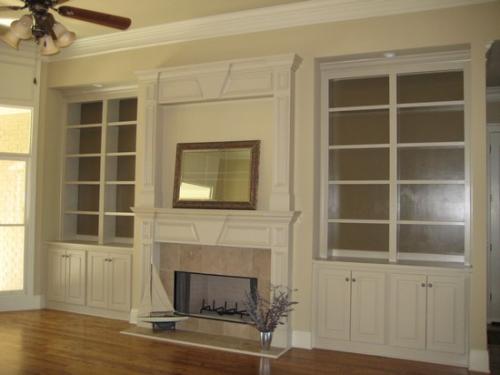

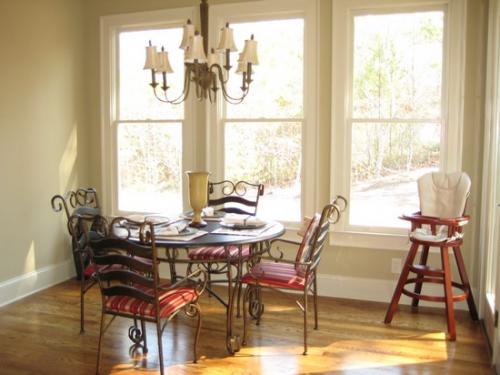

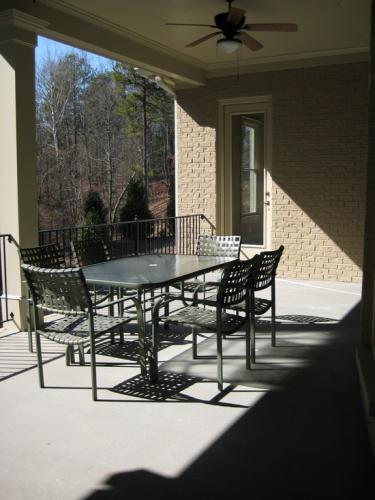

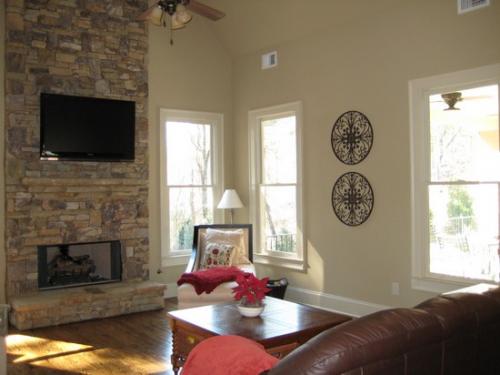

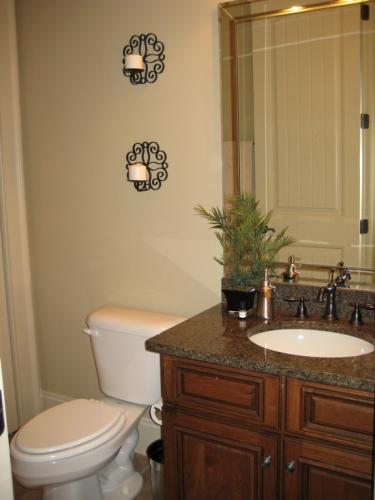

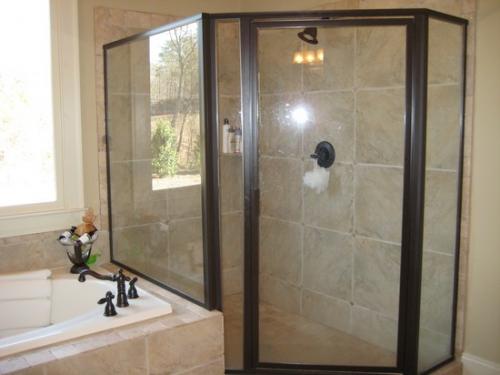

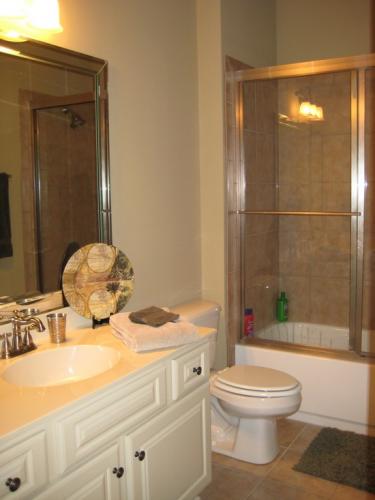

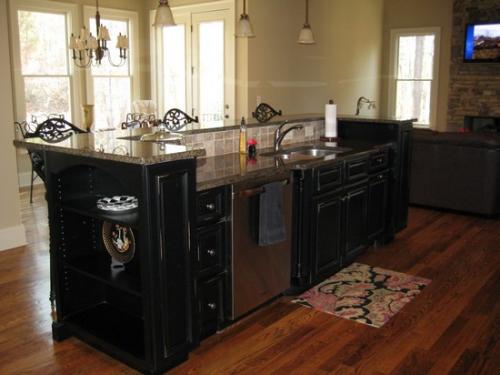

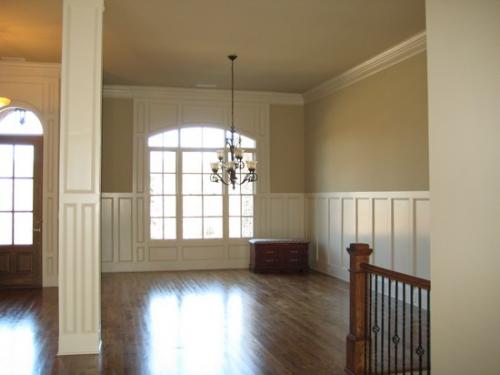

Photos
Click to view photos full size.
Features
Additional Rooms
Keeping Room
Laundry On Main Floor
Master On Main Floor
Media Room
Split Bedrooms
Garage Type
Side Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 4,077 sq. ft. |
| First Floor: | 2,697 sq. ft. |
| Garage: | 580 sq. ft. |
| Basement: | 1,380 sq. ft. |
| Floors: | 1 |
| Bedrooms: | 4 |
| Bathrooms: | 4 |
| Garages: | 3 car |
| Width: | 70ft. |
| Depth: | 72ft. |
| Height: | 33ft. |
| Foundation: | Finished Basement |
| Main Roof Pitch: | 12/12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Basement Foundation: |
70
x 72
x 10
|
| Bath 2: |
5
x 10
x 10
|
| Bathroom 3: |
10-4
x 7
x 8
|
| Bathroom 4: |
5-6
x 10
x 8
|
| Bedroom 2: |
14
x 14
x 10
|
| Bedroom 2 Closet: |
5
x 4-8
x 10
|
| Bedroom 3: |
14-10
x 14-8
x 9
|
| Bedroom 3 Closet: |
8
x 6-10
x 8
|
| Bedroom 4: |
15
x 14-8
x 9
|
| Bedroom 4 Closet: |
4-8
x 5-4
x 8
|
| Breakfast Room: |
12
x 12
x 10
|
| Coat Closet: |
2-4
x 2
x 10
|

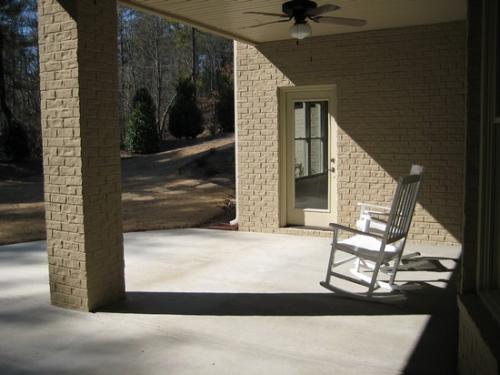

| Covered Rear Porch: |
25-4
x 14
x 10
|
| Dining Room: |
14-4
x 17
x 12
|

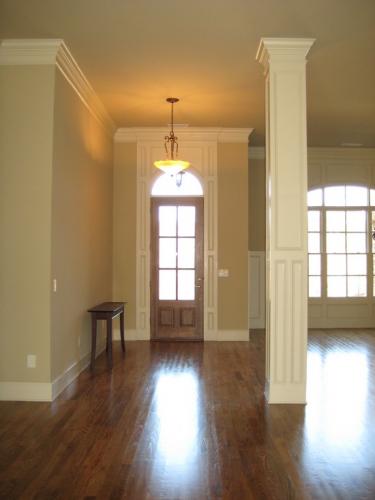

| Foyer: |
7-4
x 12-4
x 12
|
| Front Porch: |
74-4
x 12-4
x 12
|

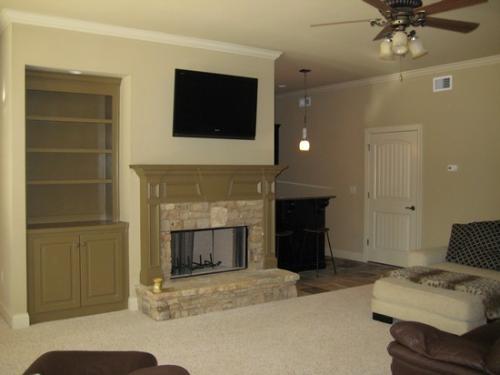

| Game/Rec/Media Room: |
19-4
x 24-8
x 9
|
| Garage: |
22
x 32
x 9
|

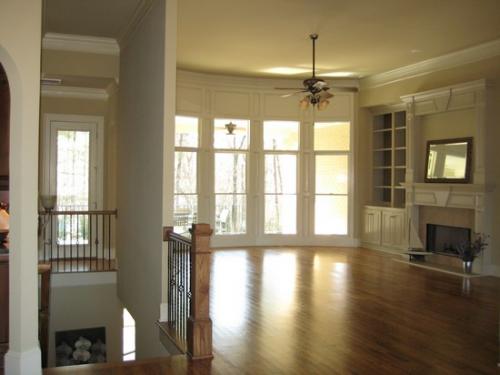

| Gathering/Family Room: |
19-4
x 24-8
x 12
|
| Hall Closet: |
3
x 2
|
| Keeping Room: |
15
x 15
x 14
|

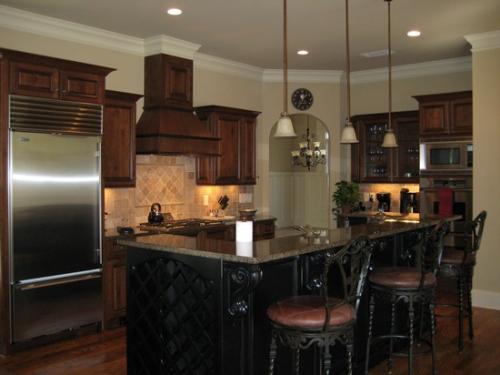

| Kitchen: |
11-8
x 17-10
x 10
|
| Kitchen Island: |
4
x 10
|
| Laundry Room: |
7-8
x 9-4
x 10
|
| Left Porch: |
4
x 6
x 10
|
| Linen Closet: |
1-8
x 2
x 8
|
| Master Bath: |
13-4
x 13
x 10
|
| Master Closet: |
12-4
x 7-8
x 10
|
| Master Suite: |
15-4
x 19
x 11
|
| Pantry: |
5
x 3
x 10
|

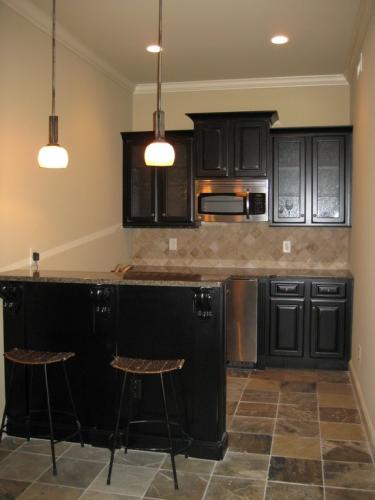

| Wet Bar: |
9
x 7-10
x 8
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
Reproducible: $1,600.00
CAD Files: $1,800.00
Additional Options
Right Reading Reverse Set: $200.00
|

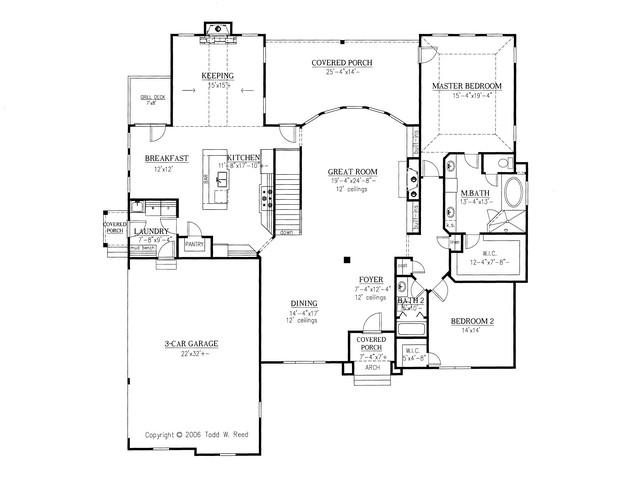

Floorplan 1
Images Copyrighted by Designer

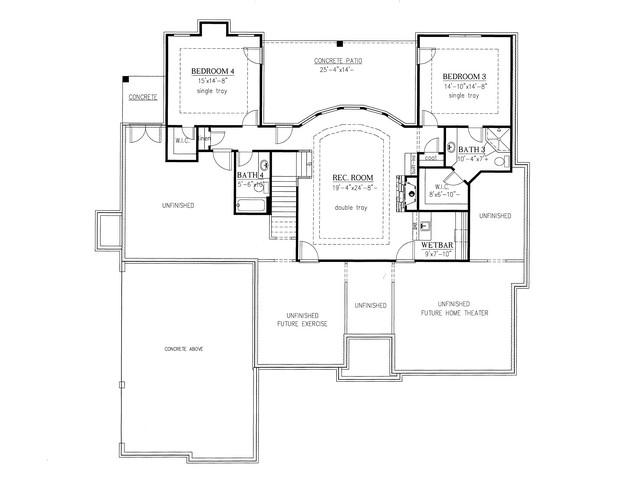

Floorplan 2
