House Plan 192-00032
|
View the Floorplan

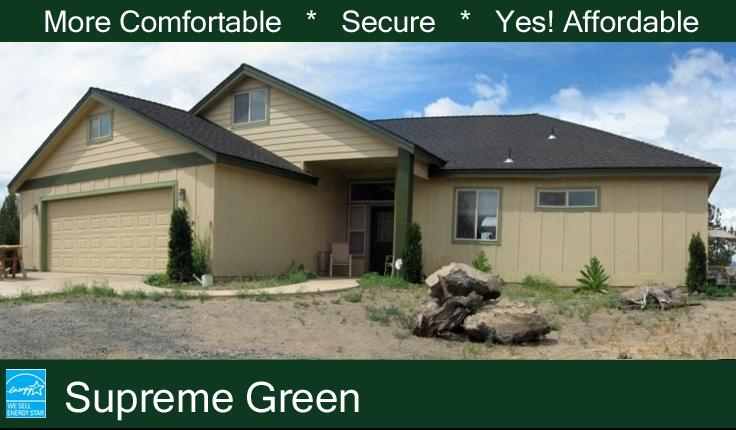

Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.

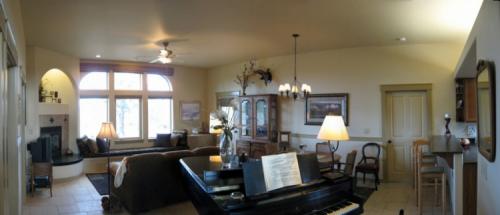

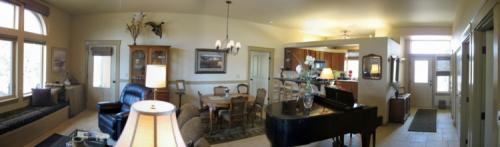

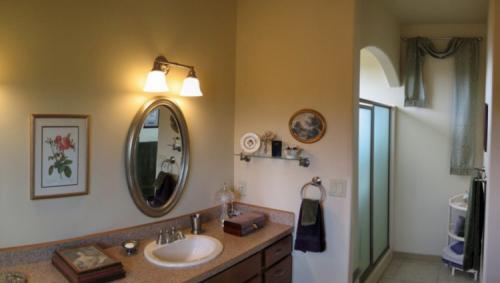

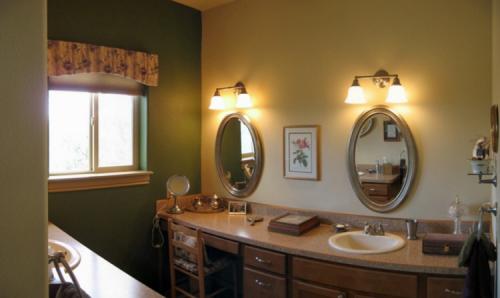

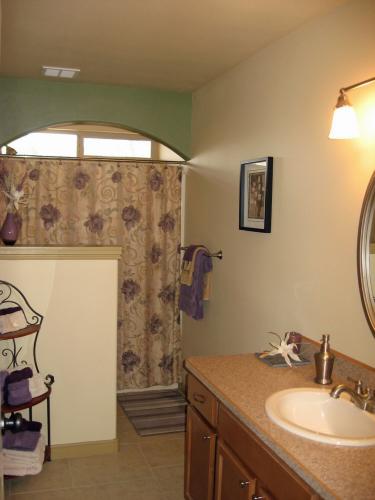

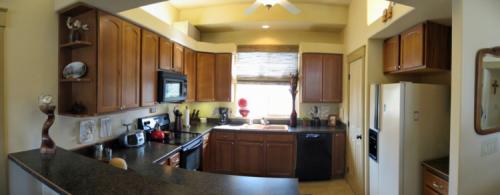

Photos
Click to view photos full size.
A large-feeling, energy-efficient, compactly-designed home for a couple that works out of their home during the day and requires needed space for group gatherings in the evening. This home has 10’ ceilings in the great room and 9’ ceilings in the master suite.
Notice the efficient use of 1,520 square feet without the need for halls. Both rear patios and entry porch have large covered areas. The home was built on slab with radiant heated floors. A large storage area is also designed into the truss over the garage.
This plan includes our 102-page Conservation Guide providing the latest in building science and cost-effective, energy-saving features.
Features
Additional Rooms
Additional Bedroom Down
Home Office
Laundry On Main Floor
Master On Main Floor
Garage Type
Front Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 1,520 sq. ft. |
| Garage: | 713 sq. ft. |
| Floors: | 1 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Garages: | 2 car |
| Width: | 60ft. |
| Depth: | 54ft. |
| Height: | 19ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 6:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bath 2: |
5
x 13
x 8
|
| Bedroom 2: |
10-6
x 11
x 8
|
| Bedroom 3: |
9-10
x 13-8
x 8
|
| Coat Closet: |
2
x 3
x 8
|
| Foyer: |
6-2
x 8-4
x 10
|
| Front Porch: |
10
x 8
x 10
|
| Garage: |
25
x 24-6
x 8
|
| Great Room: |
19
x 24-8
x 10
|
| Kitchen: |
12-6
x 10-4
x 10
|
| Laundry: |
5
x 3
x 8
|
| Linen Closet: |
4
x 1-6
x 9
|
| Master Bath: |
13-8
x 10
x 9
|
| Master Bedroom: |
16
x 13-8
x 9
|
| Master Closet: |
6-8
x 5
x 9
|
| Pantry: |
4-8
x 2-4
x 10
|
| Rear Porch: |
14
x 8
x 9
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
1 Set: $620.00
5 Sets: $700.00
8 Sets: $760.00
Reproducible: $860.00
Additional Options
Additional Construction Sets: $25.00
Mirrored Reverse: $30.00
|

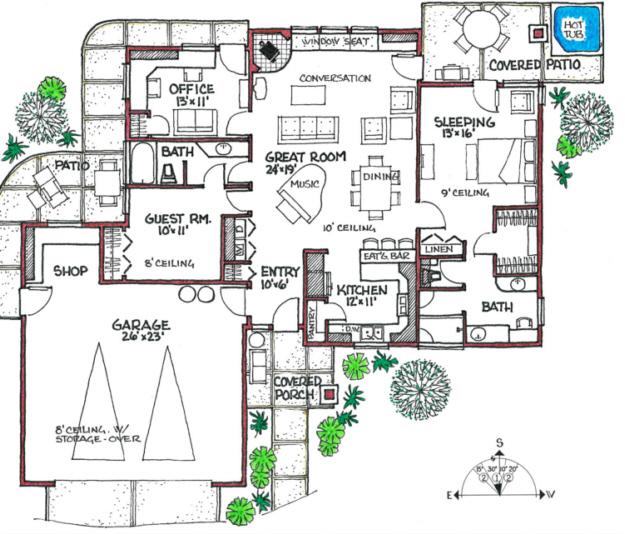

Floorplan
