House Plan 192-00025
|
View the Floorplan

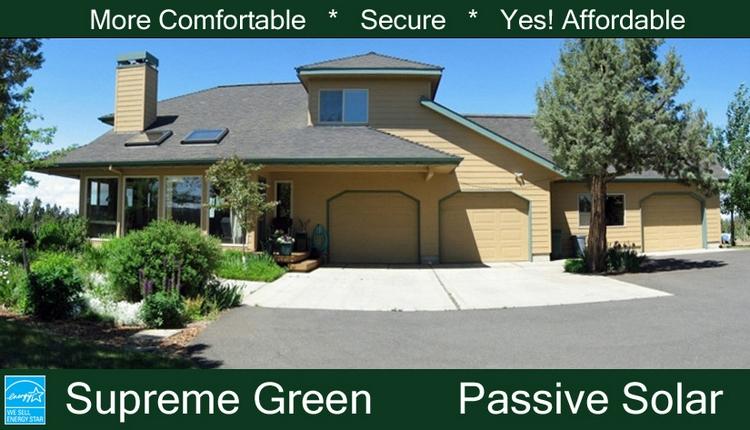

Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Photos
Click to view photos full size.

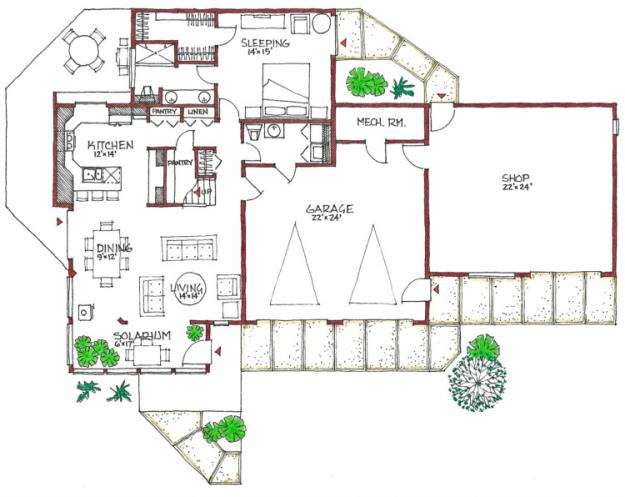

Enter this passive solar home from the south through the warm sun space to the living room area. The ceiling is vaulted up to the loft and balcony above. Continue through the two-story dining room area into a large kitchen with two pantries.

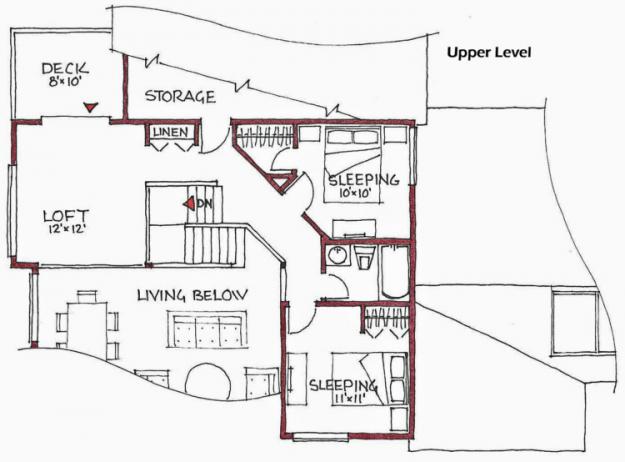

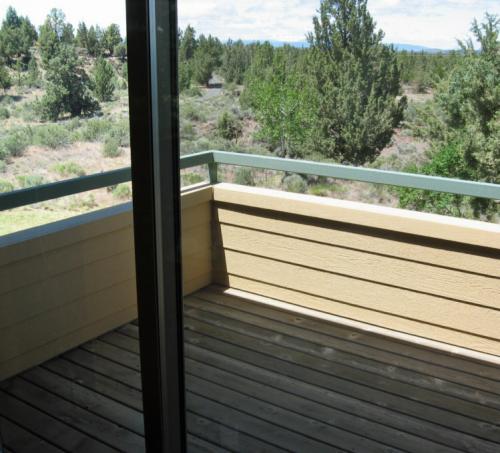

The master suite is on the radiant-heated, main-level floor. Above the open stairs is the all purpose loft with adjoining deck. The open balcony takes you to the other two bedrooms and bathroom. Lots of home in under 1,800 square feet and don’t over look the optional shop.
Plan includes radiant floor heating tube layout and energy recovery ventilation design. Our 102-page Conservation Guide providing the latest in building science and proven cost-effective, energy-saving features that you may incorporate in the construction of your new home is also included.
Features
Additional Rooms
Guest Room
Home Office
Laundry On Main Floor
Loft
Master On Main Floor
Sunroom
Garage Type
Front Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 1,798 sq. ft. |
| First Floor: | 1,168 sq. ft. |
| Second Floor: | 626 sq. ft. |
| Garage: | 1,056 sq. ft. |
| Floors: | 1.5 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 4 car |
| Width: | 72ft. |
| Depth: | 46ft. |
| Height: | 23ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 6:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bath 2: |
5
x 7-8
x 8
|
| Bath 3: |
5
x 8
x 8
|
| Bedroom 2: |
10
x 11-2
x 8
|
| Bedroom 3: |
10
x 10-2
x 8
|
| Coat Closet: |
3-4
x 2
x 7
|
| Deck: |
8
x 10
|
| Foyer: |
6
x 6
|
| Front Porch: |
11
x 13
x 8
|
| Garage: |
47
x 21
x 8
|
| Great Room: |
21-6
x 20-6
|
| Kitchen: |
12
x 14
x 8
|
| Laundry: |
5
x 3
x 8
|
| Linen Closet: |
8
x 1-6
x 8
|
| Loft: |
11-4
x 12-6
x 8
|
| Master Bath: |
7-8
x 10-2
x 8
|
| Master Bedroom: |
13-6
x 14-6
x 8
|
| Master Closet: |
6-2
x 10-2
x 8
|
| Pantry: |
4
x 8
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
1 Set: $759.00
5 Sets: $839.00
8 Sets: $899.00
Reproducible: $999.00
Additional Options
Additional Construction Sets: $25.00
Mirrored Reverse: $30.00
|
