House Plan 192-00023
|
View the Floorplan
Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Photos
Click to view photos full size.

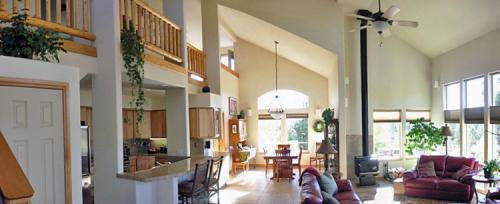

When you enter this home from the large covered porch, you pause to take in the expanse of grandeur.

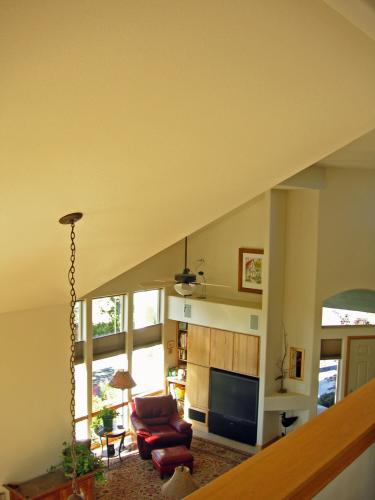

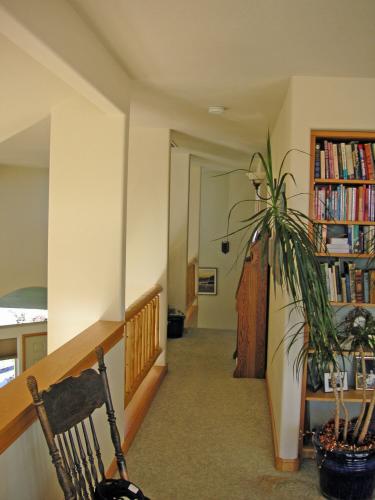

A very open design with ceiling transitions that define space and slope up to the balcony and loft above.
A modest size home that appears much larger with a large master suite on the main floor. This home was built on a sloped site over a crawl space and large decks on the east and south for the perfect outdoor living location.

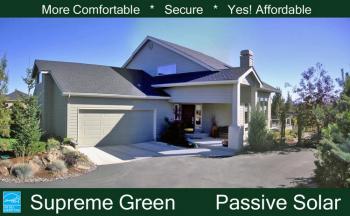

An excellent passive solar design with radiant floor heating and cooling on the first floor and forced air heating and cooling on the second floor using an air-to-water heat pump.
Plan includes a radiant-floor, heating-tube layout, a heat recovery ventilation design, and an upper-level, forced-air system design. Our 102-page Conservation Guide providing the latest in building science and proven cost-effective, energy-saving features that you may incorporate in the construction of your new home is also included.
Features
Additional Rooms
Bonus Room
Guest Room
Home Office
Laundry On Main Floor
Loft
Master On Main Floor
Sitting Room
Sunroom
Garage Type
Front Entry
Porch Type
Front
|
|
| Square Footage: | 1,906 sq. ft. |
| First Floor: | 1,277 sq. ft. |
| Second Floor: | 629 sq. ft. |
| Garage: | 833 sq. ft. |
| Floors: | 1.5 |
| Bedrooms: | 2 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 74ft. |
| Depth: | 48ft. |
| Height: | 23ft. |
| Foundation: | Crawl Space |
| Main Roof Pitch: | 6:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bath 2: |
6-2
x 10-2
x 8
|
| Bath 3: |
5
x 5-2
x 8
|
| Bedroom 2: |
11-6
x 13-8
x 8
|
| Bonus Room: |
10
x 29
x 6-6
|
| Coat Closet: |
3
x 2
x 8
|
| Deck: |
18
x 25
|
| Dining Room: |
11-6
x 10
|
| Foyer: |
6
x 8
x 17
|
| Front Porch: |
9
x 17
x 11
|
| Garage: |
27
x 29
x 8
|
| Great Room: |
21
x 21-6
|
| Hall Balcony: |
16
x 4
|
| Home Office: |
13-6
x 15-6
x 8
|
| Kitchen: |
10
x 15
x 8
|
| Laundry: |
7
x 9
x 8
|
| Linen Closet: |
7
x 2
x 8
|
| Master Bath: |
7
x 10-6
x 8
|
| Master Bedroom: |
13
x 15-8
x 8
|
| Master Closet: |
7
x 7
x 8
|
| Pantry: |
3-2
x 6-2
x 8
|
| Toilet Room: |
4-2
x 5
x 8
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
1 Set: $813.00
5 Sets: $893.00
8 Sets: $953.00
Reproducible: $1,053.00
Additional Options
Additional Construction Sets: $25.00
Mirrored Reverse: $30.00
|

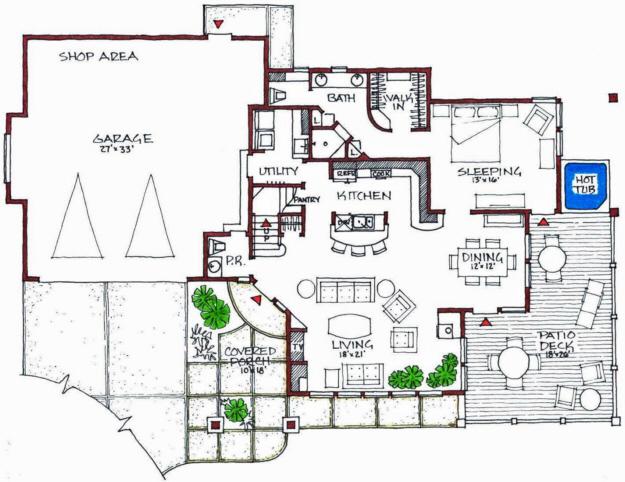

Floorplan 1
Images Copyrighted by Designer

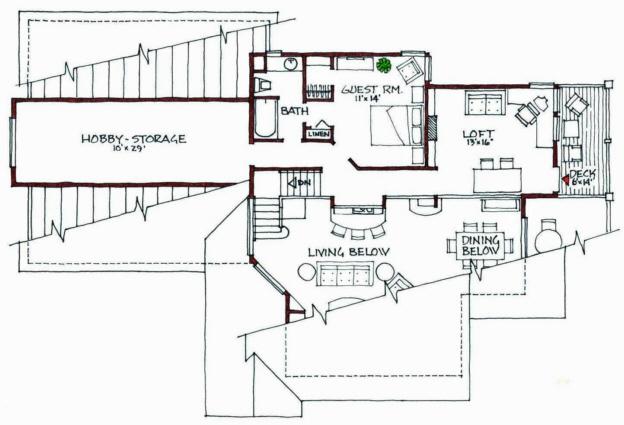

Floorplan 2
