House Plan 192-00019
|

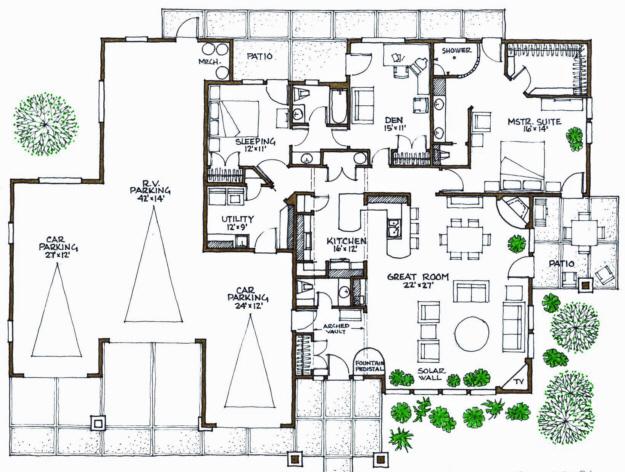

View the Floorplan
Front Elevation Side Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.

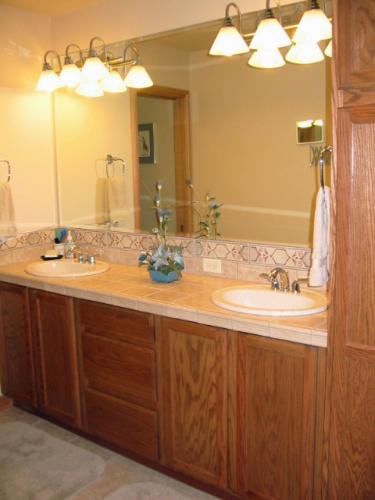

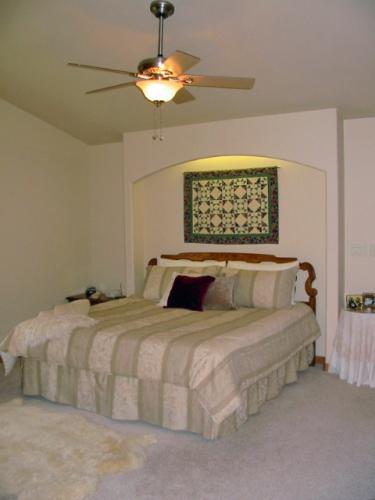

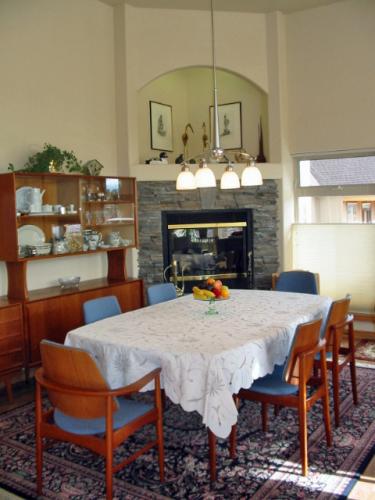

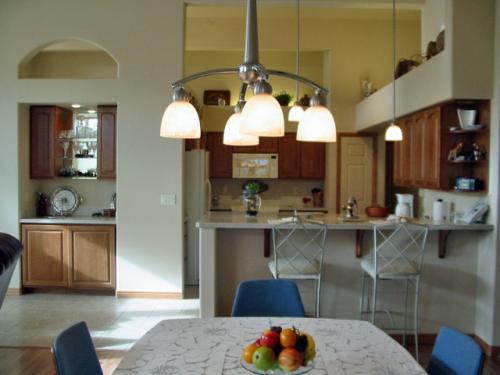

Photos
Click to view photos full size.
Combine comfortable year-round living and instant mobility. This home includes a radiant floor heated recreational vehicle garage – an extension of the home.

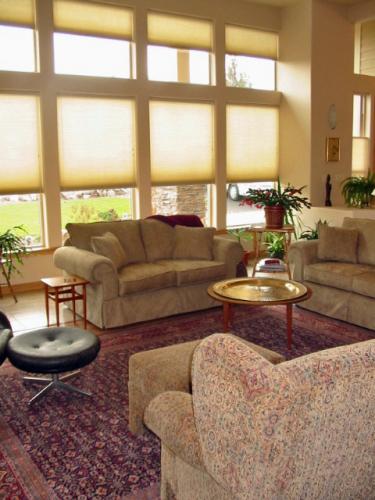

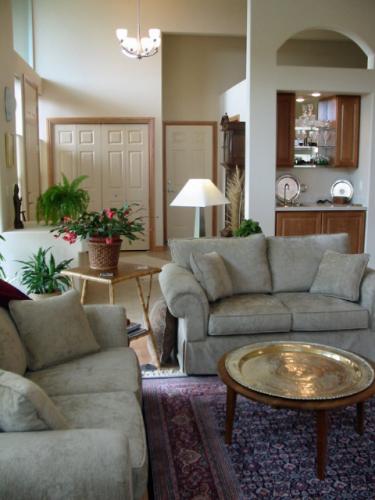

Enter this passive-solar home under a barrel-vault foyer that flows into the great room. Notice the high ceilings, fireplace, entertainment center, indirect lighting, and arch accents. A great space to gather the family.
The plan includes a 3-zone radiant floor heating-tube layout. Our 102-page Conservation Guide providing the latest in building science and proven cost-effective, energy-saving features that you may incorporate in the construction of your new home is also included.
Features
Additional Rooms
Additional Bedroom Down
Guest Room
Laundry On Main Floor
Master On Main Floor
Sunroom
Garage Type
Front Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 2,081 sq. ft. |
| First Floor: | 2,081 sq. ft. |
| Garage: | 1,290 sq. ft. |
| Floors: | 1 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 4 car |
| Width: | 81ft. |
| Depth: | 60ft. |
| Height: | 24ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 6:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bath 2: |
8
x 11
x 8
|
| Bath 3: |
4
x 7-6
x 7
|
| Bedroom 2: |
11-2
x 15
x 8
|
| Bedroom 3: |
11-6
x 11-6
x 8
|
| Coat Closet: |
6
x 2
x 7
|
| Foyer: |
8
x 9-6
x 12
|
| Garage: |
24
x 27
x 8
|
| Great Room: |
22-6
x 27-6
x 12
|
| Hall: |
3-6
x 21
x 8
|
| Kitchen: |
16
x 11
x 12
|
| Laundry: |
9
x 12
x 8
|
| Linen Closet: |
6
x 2
x 8
|
| Master Bedroom: |
14
x 16
x 8
|
| Master Closet: |
7
x 11
x 8
|
| Pantry: |
2
x 7
x 7
|
| R.V. Garage: |
14
x 42
x 14
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
1 Set: $920.00
5 Sets: $980.00
8 Sets: $1,040.00
Reproducible: $1,140.00
Additional Options
Additional Construction Sets: $25.00
Mirrored Reverse: $30.00
|
