House Plan 192-00016
|
View the Floorplan
Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Photos
Click to view photos full size.

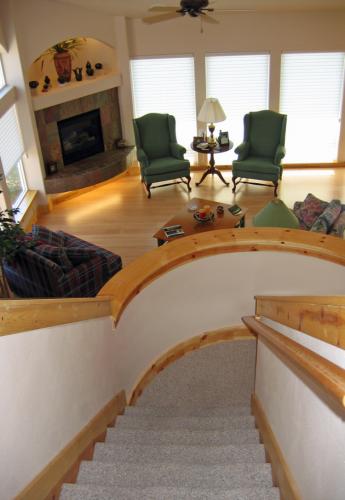

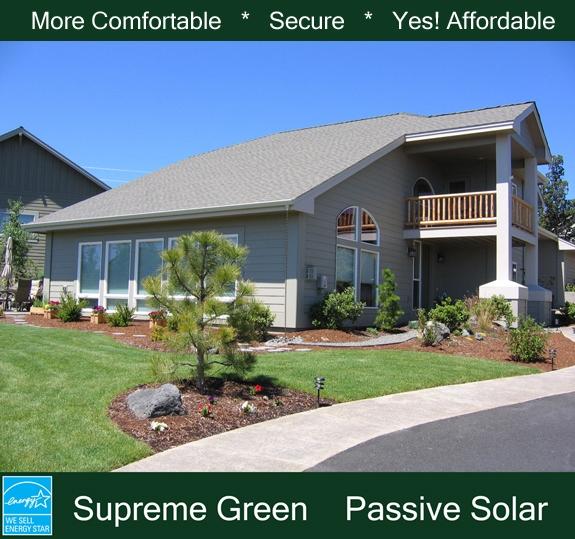

This passive solar home is well received by all visitors. The two-story entry views the great room with its vaulted ceilings rising to the loft above. Radius stairs and balcony add a superb touch to the open concept. The media room and guestroom are very private with a covered upper deck to enjoy the outdoors.

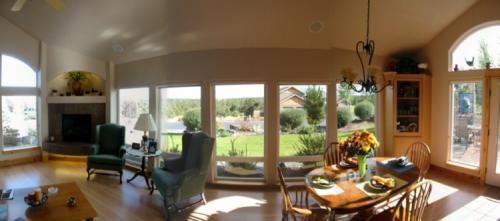

This home was designed with passive solar through the living/dining room wall. Originally built with an air-to-water heat pump providing warm or cool water to the radiant floor heating/cooling system on the first level and forced-air heating system in the upper level makes this home very comfortable in all seasons. The finished bonus room allows for an additional 288 square feet of living space.
The plan includes a radiant-floor-heating tube layout. Our 102-page Conservation Guide providing the latest in building science and proven cost-effective, energy-saving features that you may incorporate in the construction of your new home is also included.
Features
Additional Rooms
Additional Bedroom Down
Bonus Room
Guest Room
Home Office
Laundry On Main Floor
Loft
Master On Main Floor
Media Room
Sunroom
Garage Type
Side Entry
Porch Type
Front
|
|
| Square Footage: | 2,149 sq. ft. |
| First Floor: | 1,461 sq. ft. |
| Second Floor: | 688 sq. ft. |
| Bonus Room: | 288 sq. ft. |
| Garage: | 873 sq. ft. |
| Floors: | 1.5 |
| Bedrooms: | 3 |
| Bathrooms: | 3 |
| Garages: | 3 car |
| Width: | 44ft. |
| Depth: | 78ft. |
| Height: | 24ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 6:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bath 2: |
5
x 10
x 8
|
| Bath 3: |
8
x 10-6
x 8
|
| Bedroom 2: |
11
x 12-6
x 8
|
| Bonus Room: |
10
x 24
x 8
|
| Coat Closet: |
3
x 2
x 7
|
| Den: |
10
x 10
x 8
|
| Dining Room: |
10
x 11
|
| Garage: |
38
x 23
x 11
|
| Great Room: |
17
x 18
|
| Hall: |
6
x 6
x 8
|
| Kitchen: |
10
x 14
x 8
|
| Laundry: |
6
x 9
x 8
|
| Linen Closet: |
9
x 2
x 8
|
| Loft: |
10
x 14
x 8
|
| Master Bath: |
7-6
x 13
x 8
|
| Master Bedroom: |
14
x 14
x 8
|
| Master Closet: |
7
x 7
x 8
|
| Media Room: |
15
x 15
x 8
|
| Pantry: |
4
x 4
x 8
|
| Toilet Room: |
6
x 7
x 8
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
1 Set: $934.00
5 Sets: $1,014.00
8 Sets: $1,074.00
Reproducible: $1,174.00
Additional Options
Additional Construction Sets: $25.00
Mirrored Reverse: $30.00
|

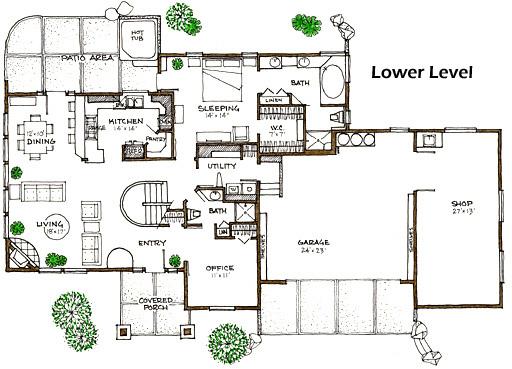

Floorplan 1
Images Copyrighted by Designer

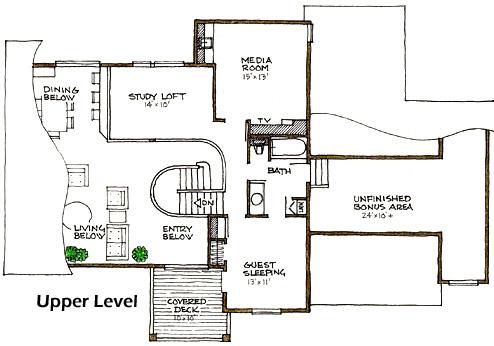

Floorplan 2
