House Plan 192-00010
|
View the Floorplan
Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.

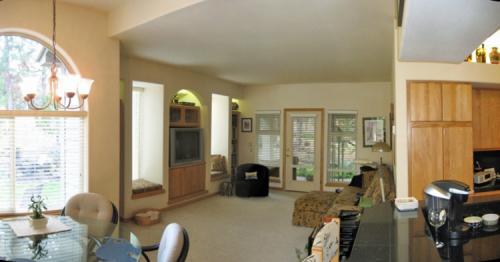

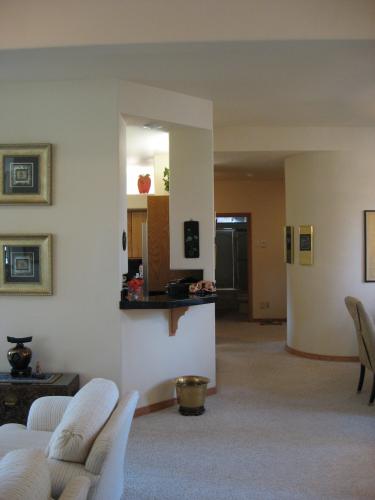

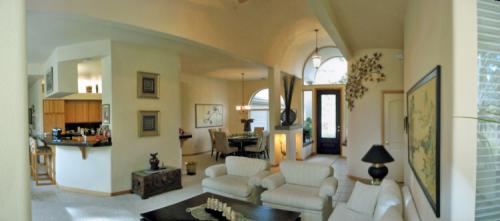

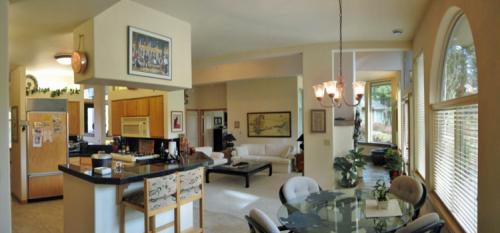

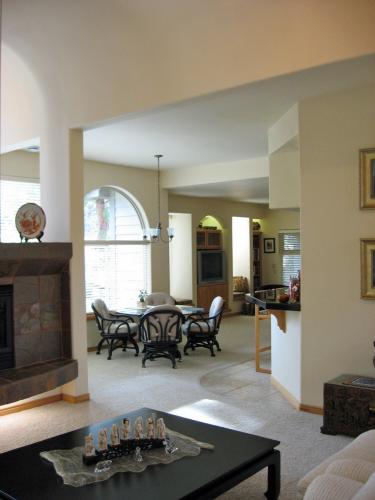

Photos
Click to view photos full size.

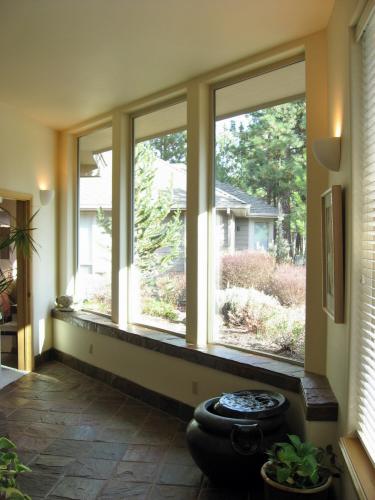

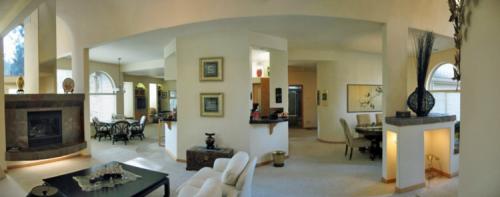

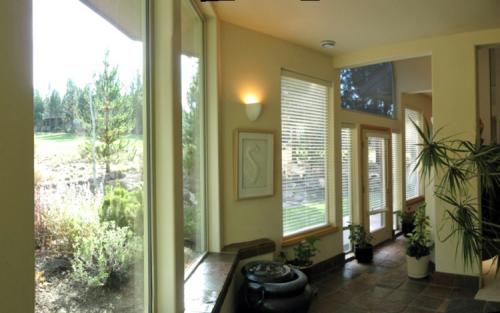

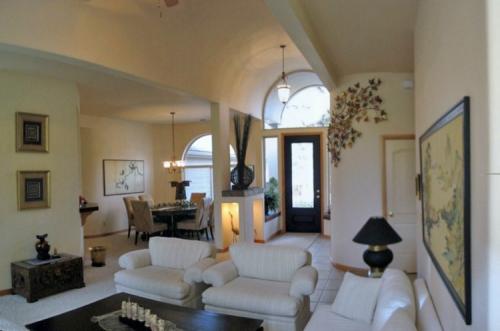

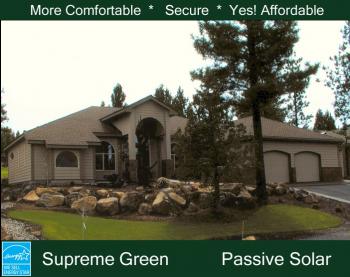

This passive-solar home was designed for comfort and convenience. The home requires no steps on a flat lot. The entry presents a barrel vault running the full length of the ceiling. The solarium wraps around the living room, master suite, and nook, accentuating the gas fireplace at the far end of the living room area
The open design between sleeping areas creates a very spacious feeling. Featured are indirect and recessed lighting throughout the home. The covered patio enhances the outdoor living area. This is a very elegant and comfortable, energy-efficient home.
The plans include a radiant floor heating tube layout and our 102-page Conservation Guide providing the latest in building science and cost-effective, energy-saving features.
Features
Additional Rooms
Additional Bedroom Down
Bonus Room
Guest Room
Laundry On Main Floor
Master On Main Floor
Sitting Room
Study
Sunroom
Garage Type
Front Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 2,380 sq. ft. |
| First Floor: | 2,380 sq. ft. |
| Garage: | 652 sq. ft. |
| Floors: | 1 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 68ft. |
| Depth: | 66ft. |
| Height: | 22ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 6:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bath 2: |
5
x 9-2
x 9
|
| Bedroom 2: |
9-4
x 12
x 9
|
| Bedroom 3: |
10-2
x 11-8
x 9
|
| Breakfast: |
8
x 10
x 10
|
| Coat Closet: |
4
x 2
x 9
|
| Dining Room: |
10-6
x 12
x 10
|
| Family Room: |
14-8
x 15
x 9
|
| Foyer: |
8
x 10
x 13
|
| Front Porch: |
8
x 10
x 14
|
| Garage: |
27
x 21-6
x 9
|
| Hall: |
5
x 10
x 9
|
| Home Office: |
10
x 11
x 10
|
| Kitchen: |
12
x 13
x 9
|
| Laundry: |
7-6
x 8
x 9
|
| Linen Closet: |
5
x 2
x 9
|
| Living Room: |
15
x 18
|
| Master Bath: |
8-6
x 15
x 9
|
| Master Bedroom: |
13-6
x 13-6
x 9
|
| Master Closet: |
6-4
x 8
x 9
|
| Master Sitting: |
4-6
x 8
x 9
|
| Rear Porch: |
10
x 16
x 9
|
| Sunroom: |
7
x 24
|
| Toilet Room: |
3
x 5
x 9
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
1 Set: $1,050.00
5 Sets: $1,130.00
8 Sets: $1,190.00
Reproducible: $1,290.00
Additional Options
Additional Construction Sets: $25.00
Mirrored Reverse: $30.00
|

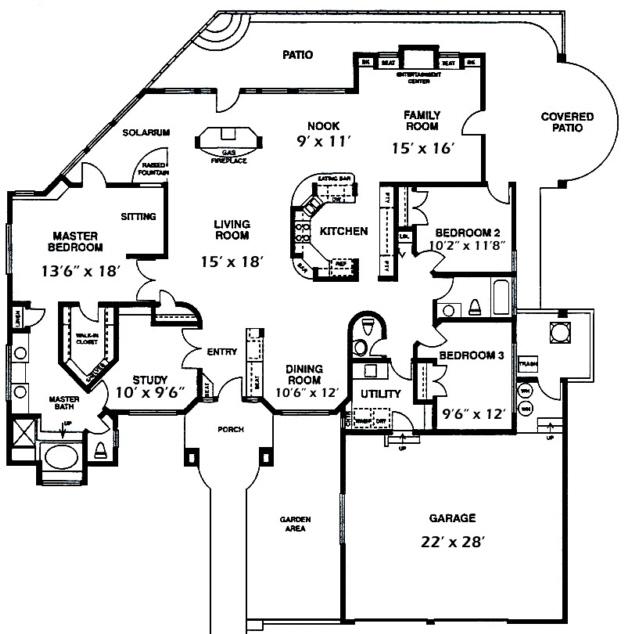

Floorplan
