House Plan 192-00009
|
Featured on the Central Oregon Tour of Homes

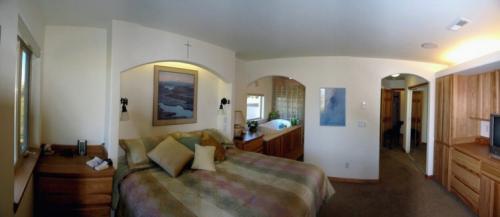

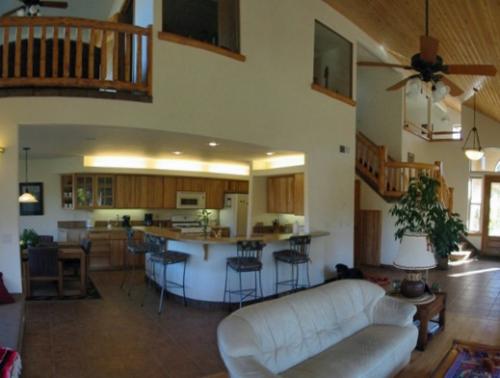

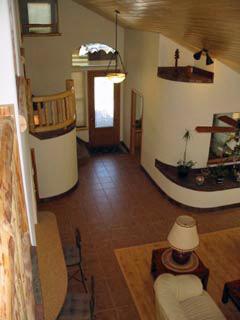

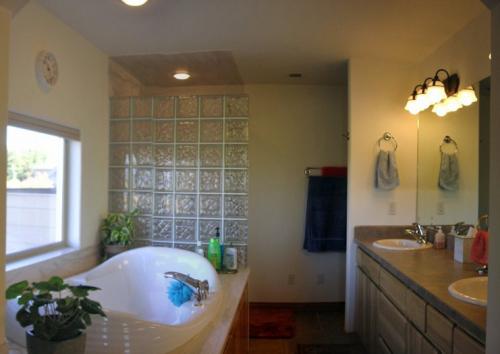

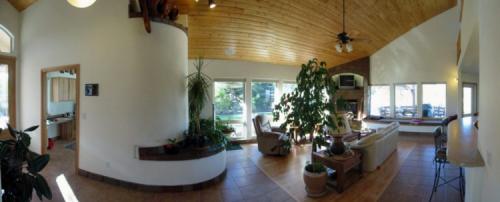

The foyer has a high ceiling with an open staircase leading to the very open upper level except for the media room that maintains visual through house by use of glass to stop sound travel. The great room includes a water feature platform and corner fireplace with television above. The master suite was designed with 13’ of storage cabinets plus soaking tub and glass block shower.

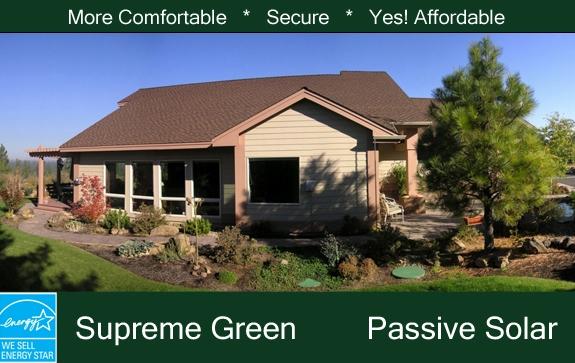

This passive-solar home gives the owners lots of options with offices and sleeping on both levels.
The plans include radiant floor heating tube design for lower level and garage. Our 102-page Conservation Guide providing the latest in building science and proven cost-effective, energy-saving features that you may incorporate in the construction of your new home is also included.
Features
Additional Rooms
Additional Bedroom Down
Computer Room
Guest Room
Home Office
Laundry On Main Floor
Loft
Master On Main Floor

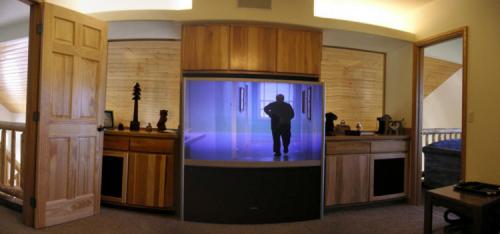

Media Room
Sunroom
Garage Type
Front Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 2,408 sq. ft. |
| First Floor: | 1,734 sq. ft. |
| Second Floor: | 674 sq. ft. |
| Garage: | 1,200 sq. ft. |
| Floors: | 1.5 |
| Bedrooms: | 3 |
| Bathrooms: | 3 |
| Garages: | 3 car |
| Width: | 75ft. |
| Depth: | 57ft. |
| Height: | 23ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 6:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bath 2: |
8
x 8
x 8
|
| Bath 3: |
5
x 10-6
|
| Bedroom 2: |
10-2
x 11
x 8
|
| Bedroom 3: |
14
x 12-6
x 8-6
|
| Coat Closet: |
3
x 2-2
x 8
|
| Den: |
10-2
x 12
|
| Dining Room: |
10
x 11-6
x 8
|
| Foyer: |
10
x 10-6
|
| Front Porch: |
6
x 10
|
| Garage: |
24
x 21-6
|
| Great Room: |
17-6
x 23
|
| Hall: |
3-6
x 14
x 8
|
| Kitchen: |
12
x 12
x 8
|
| Laundry: |
7-4
x 8
x 8
|
| Linen Closet: |
7
x 1-6
x 8
|
| Loft: |
6
x 8
x 8-6
|
| Master Bath: |
9
x 12
x 8
|
| Master Bedroom: |
12-6
x 15-6
x 8
|
| Master Closet: |
8
x 8
x 8
|
| Media Room: |
13
x 15-6
x 8-6
|
| Office: |
10
x 11-6
x 8-6
|
| Pantry: |
5
x 2
x 8
|
| R.V. Garage: |
16
x 35-6
x 14
|
| Rear Porch: |
10
x 46
|
More House Plans by this designer
Save House Plan
Modify This Plan
Build Cost
Email to Friend
Print This Page
Pricing
1 Set: $1,064.00
5 Sets: $1,144.00
8 Sets: $1,204.00
Reproducible: $1,304.00
Additional Options
Additional Construction Sets: $25.00
Mirrored Reverse: $30.00
|

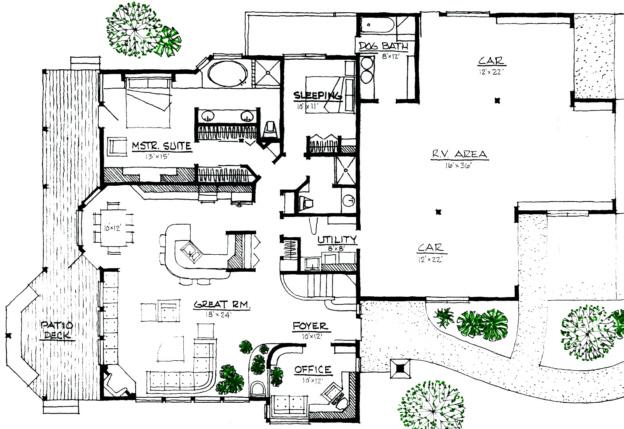

Floorplan 1
Images Copyrighted by Designer

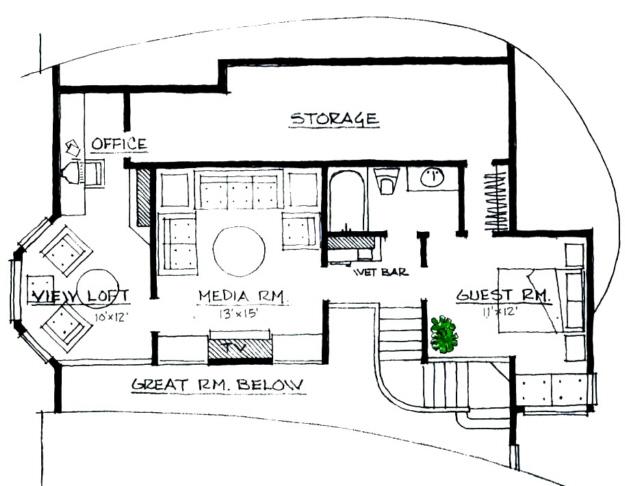

Floorplan 2
