House Plan 192-00003
|
View the Floorplan

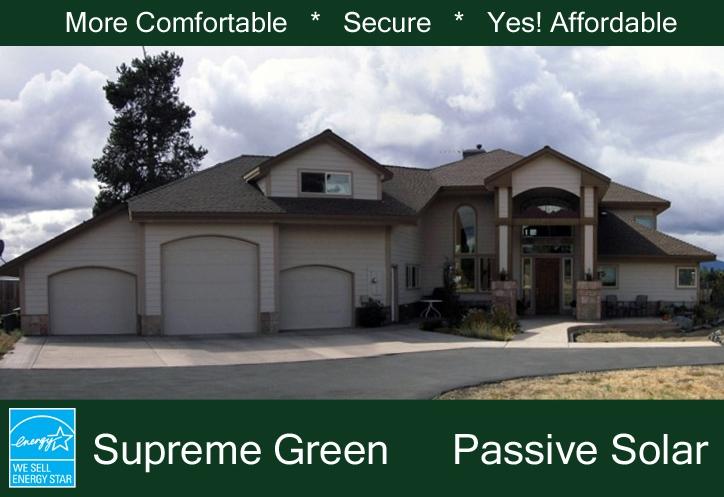

Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Photos
Click to view photos full size.

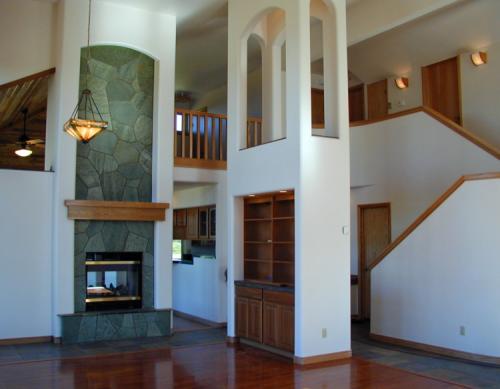

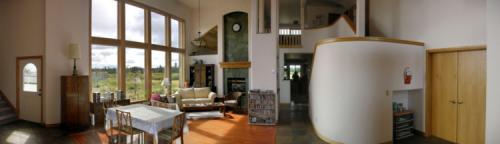

The entry presents a great room with 17’ high ceilings. The south wall glass is two stories high. The upper windows solar gain is controlled by a 3’ roof overhang. The lower set of windows has shades that close from the bottom to top.

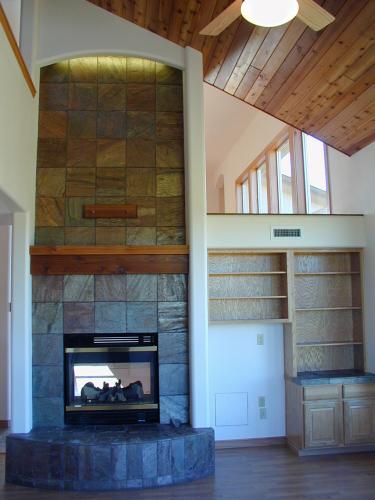

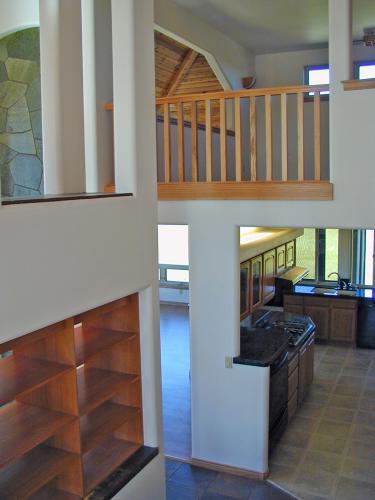

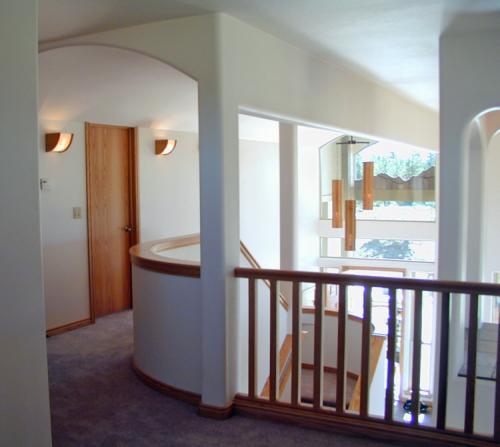

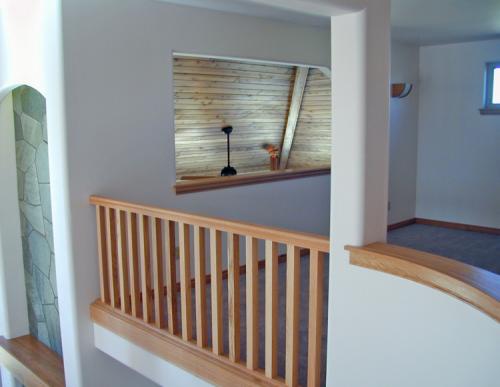

The propane fireplace warms the great room and family room. The stairs, balcony, and loft look over the lower level providing a very dramatic open design. The lower level has everything for the owner’s and the upper level welcomes the guests. There is even a bonus room over the garage for what ever you desire.
This excellent passive-solar home was built with all the cost-effective, energy-saving features including a water-to-water heat pump extracting heat from the well water, airtight foam insulation construction with an energy recovery ventilator and more.
Plans include a radiant floor heating design for both levels. Our 102-page Conservation Guide providing the latest in building science and cost-effective, energy-saving features.
Features
Additional Rooms
Bonus Room
Guest Room
Home Office
Laundry On Main Floor
Loft
Master On Main Floor
Media Room
Sunroom
Garage Type
Side Entry
Porch Type
Front
Rear
Screened
|
|
| Square Footage: | 2,952 sq. ft. |
| First Floor: | 2,328 sq. ft. |
| Second Floor: | 624 sq. ft. |
| Garage: | 978 sq. ft. |
| Floors: | 1.5 |
| Bedrooms: | 3 |
| Bathrooms: | 3 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 104ft. |
| Depth: | 84ft. |
| Height: | 27ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 6:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bath 2: |
6
x 10
x 8
|
| Bath 3: |
6-6
x 6
x 8
|
| Bath 4: |
5
x 4-8
x 8
|
| Bedroom 2: |
10-6
x 13-4
x 8
|
| Bedroom 3: |
11-6
x 13-4
x 8
|
| Bonus Room: |
21
x 18
x 8
|
| Breakfast: |
9
x 10
x 9
|
| Coat Closet: |
3-6
x 2
x 8
|
| Family Room: |
11-6
x 18
|
| Foyer: |
10
x 14
x 17
|
| Front Porch: |
10
x 14
x 17
|
| Garage: |
25
x 21
|
| Great Room: |
19-6
x 28-6
x 17
|
| Kitchen: |
12
x 16
x 8
|
| Laundry: |
6-6
x 12
x 8
|
| Linen Closet: |
4-6
x 1-8
x 8
|
| Loft: |
9
x 16
x 8
|
| Master Bath: |
11
x 16
x 8
|
| Master Bedroom: |
15-6
x 17
x 8
|
| Master Closet 1: |
7-6
x 11-6
x 8
|
| Office: |
10
x 11
x 8
|
| Pantry: |
5-5
x 8-2
x 8
|
| R.V. Garage: |
14
x 29
x 12-6
|
| Rear Porch: |
10
x 24
x 8
|
| Screened Porch: |
9
x 9
x 8
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
1 Set: $1,336.00
5 Sets: $1,416.00
8 Sets: $1,476.00
Reproducible: $1,576.00
Additional Options
Additional Construction Sets: $25.00
Mirrored Reverse: $30.00
|

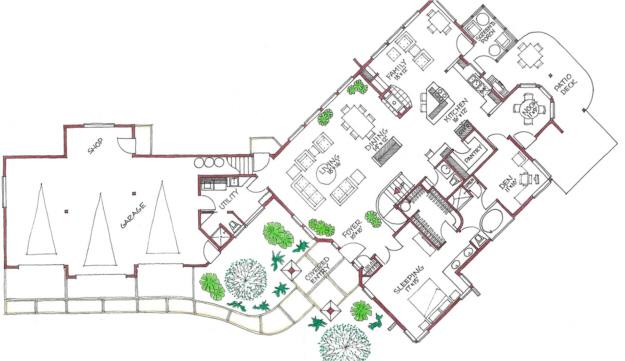

Floorplan 1
Images Copyrighted by Designer

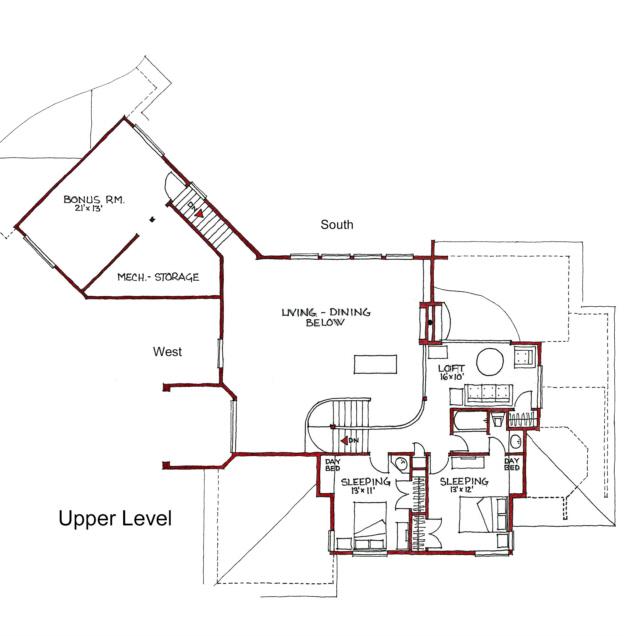

Floorplan 2
