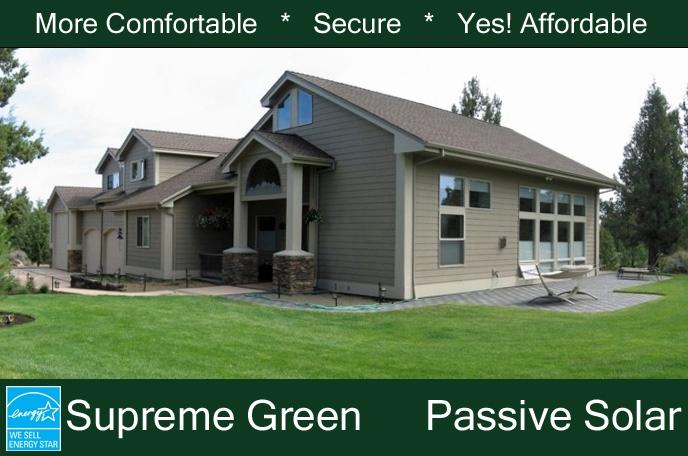

House Plan 192-00002
|

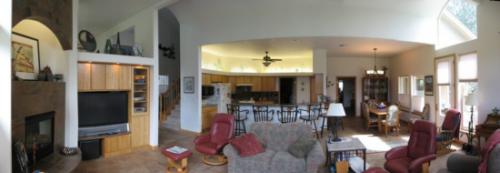

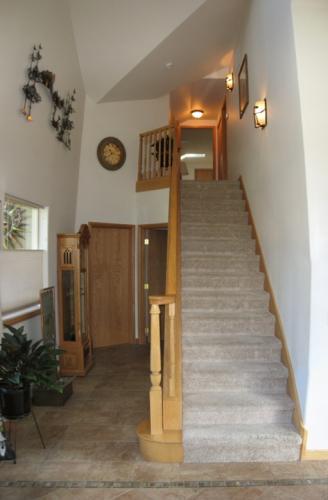

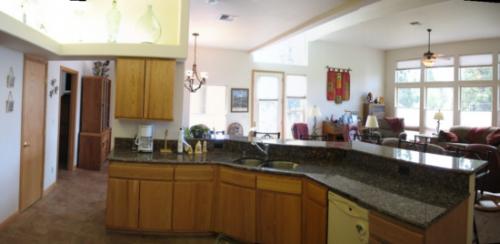

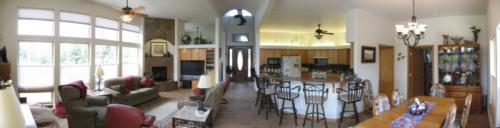

This passive-solar home greets you through a covered porch into a spacious two-story entry. A 14’ high barreled vault runs from the entry to the covered patio. To one side are 12’ high ceilings over great room and study to the other side are 10’ ceilings over the kitchen and dining area.

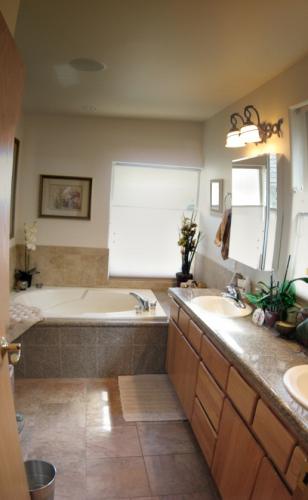

The main-floor master suite accesses the rear patio area. The master bath is set up nicely with its separate toilet, shower area, and luxury bath.
Check out the good separation of area functions in this home with its five sleeping areas. This home could be a great bed and breakfast.
The home was built with a 4-zone, radiant floor heating /cooling system on the lower level and a forced-air, fan-coil, heating/cooling system for the upper level with energy recovery ventilation.
Benefits to Building Green:
1. Federal, state, and utility cash and tax credits
2. Security against future rising utility cost
3. Healthy, indoor, air quality
4. Comfortable living
This plan comes with a 72-page Conservation Guide which gives you or your builder the information needed to build a national energy value and green building awarded home.
Features
Additional Rooms
Additional Bedroom Down
Guest Room
Laundry On Main Floor
Master On Main Floor
Media Room
Study
Sunroom
Garage Type
Front Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 2,961 sq. ft. |
| First Floor: | 1,996 sq. ft. |
| Second Floor: | 965 sq. ft. |
| Garage: | 1,268 sq. ft. |
| Floors: | 1.5 |
| Bedrooms: | 5 |
| Bathrooms: | 3 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 84ft. |
| Depth: | 58ft. |
| Height: | 23ft. |
| Foundation: | Slab |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bath 2: |
11-4
x 8
x 8
|
| Bath 3: |
5
x 10-4
x 8
|
| Bath 4: |
4-8
x 10-4
x 8
|
| Bedroom 2: |
11
x 12-6
x 8
|
| Bedroom 3: |
10
x 12-2
x 8
|
| Bedroom 4: |
10
x 12-2
x 8
|
| Bedroom 5: |
10
x 12-2
x 8
|
| Coat Closet: |
5-4
x 3-4
x 8-5
|
| Den: |
11
x 10-6
x 12
|
| Dining Room: |
11
x 14
x 10
|
| Family Room: |
14
x 19
|
| Foyer: |
9
x 17
|
| Front Porch: |
6
x 18
|
| Garage: |
30
x 32
x 8
|
| Great Room: |
31-8
x 24-8
|
| Hall: |
4-8
x 11
|
| Kitchen: |
16
x 14
x 10
|
| Laundry: |
9-6
x 13
x 8
|
| Linen Closet: |
6
x 11-8
x 8
|
| Loft: |
5-6
x 11
x 8
|
| Master Bath: |
11
x 11-6
x 8
|
| Master Bedroom: |
13
x 17-2
x 10
|
| Master Closet : |
5-6
x 12
x 8
|
| Pantry: |
5-6
x 4
x 8
|
| R.V. Garage: |
13-6
x 33
x 12
|
| Rear Porch: |
12
x 14
x 10
|
More House Plans by this designer
Save House Plan
Modify This Plan
Build Cost
Email to Friend
Print This Page
Pricing
1 Set: $1,340.00
5 Sets: $1,420.00
8 Sets: $1,480.00
Reproducible: $1,580.00
Additional Options
Additional Construction Sets: $25.00
Mirrored Reverse: $30.00
|

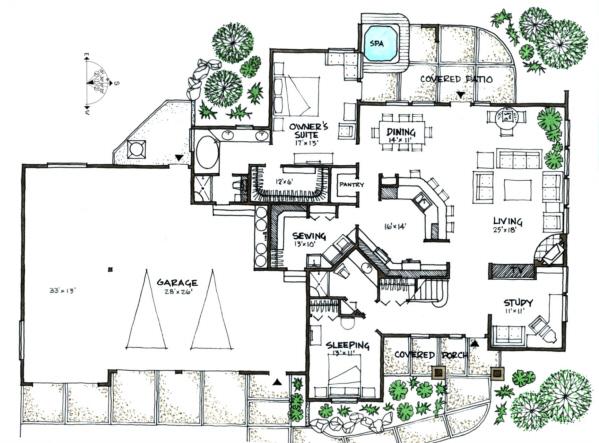

Floorplan 1
Images Copyrighted by Designer

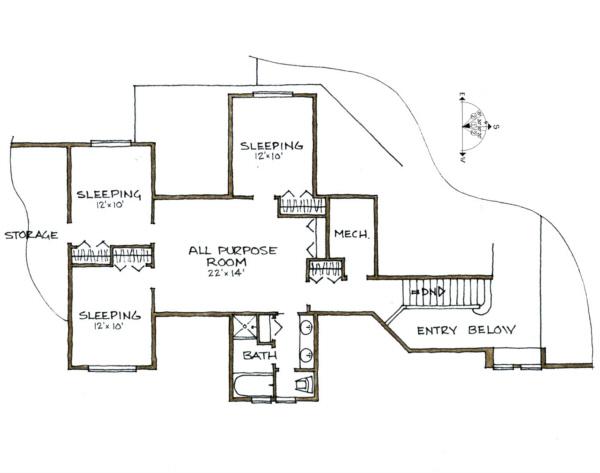

Floorplan 2

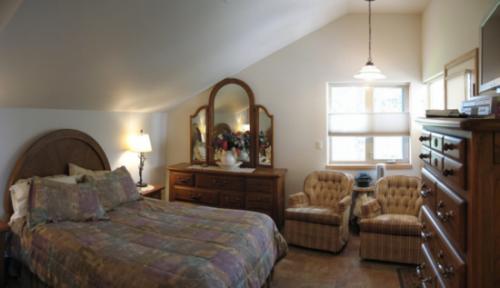

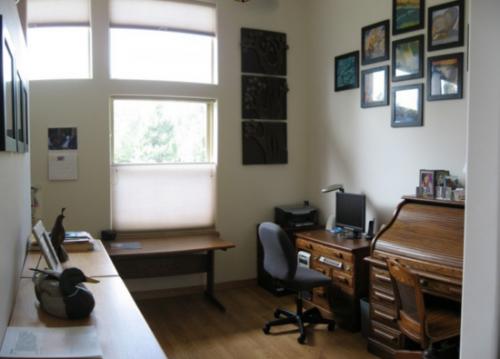

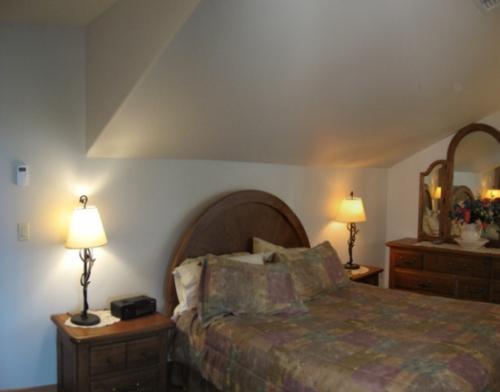

Photos
