House Plan 168-00061
|
View the Floorplan

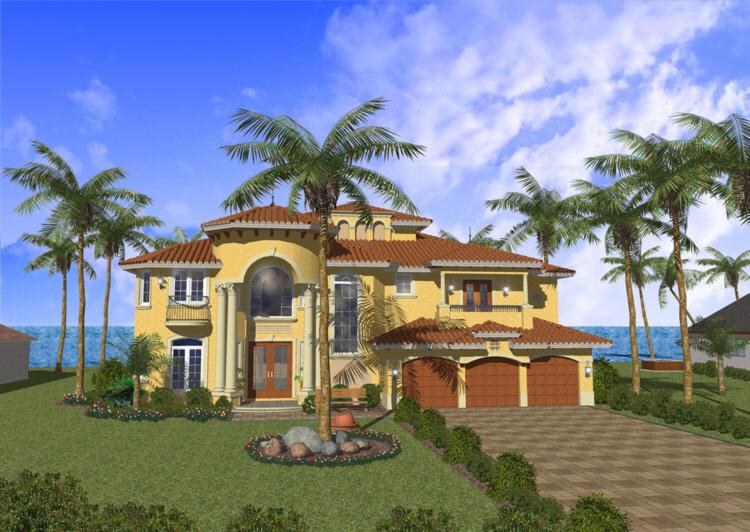

Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Two Story
Five Bedrooms
Five and a half Bathrooms plus a Cabana Bathroom
Three car Garage
Classic Mediterranean style
Towering Covered Entrance
Luxurious inside and out
Covered balconies
First Floor VIP Suite with private entrance
Impressive Custom winding stairs with windowed wall leads upstairs
Residential elevator
Eight foot French doors with arched transom accent the entrance
Media Room with wet bar, and Library
Columns and arches provide strong curb appeal
Huge island Kitchen with eating bar, opens to the Family Room
Luxurious Master Suite with large Walk-In-Closets and morning kitchen,
tray ceilings with regal Master Bath with additional storage areas
opens to private balcony
Large Living Room features a wet bar and fireplace
Features
Additional Rooms
Additional Bedroom Down
Elevator
Formal Living Room
Guest Room
Laundry Second Floor
Library
Master Up
Media Room
Sitting Room
Garage Type
Front Entry
Porch Type
Front
|
|
| Square Footage: | 5,016 sq. ft. |
| First Floor: | 2,596 sq. ft. |
| Second Floor: | 2,420 sq. ft. |
| Garage: | 609 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 5 |
| Bathrooms: | 5 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 65ft. |
| Depth: | 60ft. |
| Height: | 35ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 5:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | 3 Car Garage: |
28-8
x 20
|
| Bedroom 2: |
16
x 13
x 9
|
| Bedroom 3: |
14
x 14-4
x 9
|
| Bedroom 3 Closet: |
6-8
x 8-6
x 8
|
| Bedroom 4: |
14
x 14-4
x 10
|
| Cabana: |
12-10
x 6
x 8
|
| Covered Patio: |
47-8
x 12-6
x 10
|
| Dining Room: |
12
x 12-8
x 9
|
| Entry: |
8
x 13-6
|
| Family Room: |
17-7
x 16-2
x 9
|
| Foyer: |
20
x 12
|
| Guest Bedroom: |
14
x 16
x 10
|
| Kitchen: |
14-8
x 14-2
x 9
|
| Library: |
14
x 15
x 9
|
| Living Room: |
17-2
x 18-6
|
| Master Bath: |
12-9
x 32-6
x 10
|
| Master Bedroom: |
19
x 19
x 10
|
| Master Closet 1: |
11-4
x 11
x 9
|
| Master Closet 2: |
6
x 7-7
x 8-8
|
| Media Room: |
17-2
x 12
x 9
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
1 Set: $1,300.00
3 Sets: $1,400.00
5 Sets: $1,500.00
8 Sets: $1,650.00
Reproducible: $1,800.00
CAD Files: $2,150.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $250.00
|

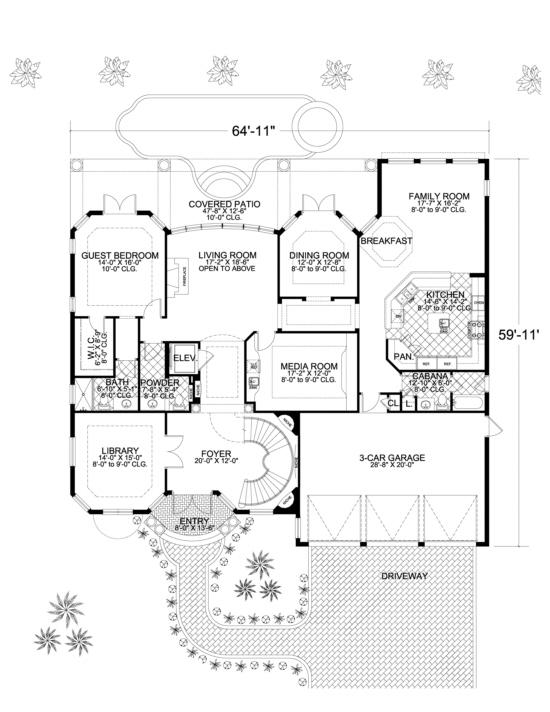

Floorplan 1
Images Copyrighted by Designer

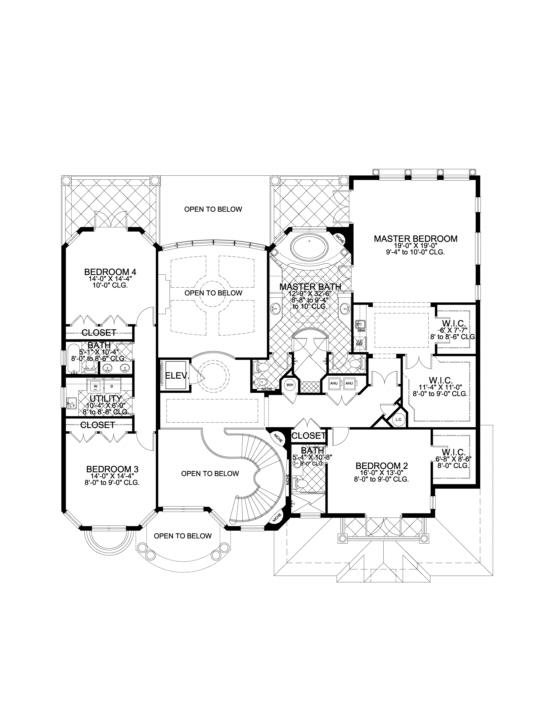

Floorplan 2
