House Plan 168-00059
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Two Story
Five Bedrooms
Three Car Garage
Five and a half Bathroms plus a Cabana Bath
Classic Mediterranean style
French doors with arched transom accent the covered entrance
Columns and arches provide strong curb appeal
Covered balconies, terrace and patio
Large Living Room with high ceilings, and Dining Rom combined
highlight this design
Large Family Room opens to covered patio
Luxurious inside and out
Gourmet island Kitchen with eating bar, Café, and pantry
The Den offers a more private area for entertaining close friends
or just relaxing
You’ll love this design if you’re looking for a home with a spacious feel
while also providing more private areas
Exclusive Master Suite with luxurious Master Bath
Features
Additional Rooms
Additional Bedroom Down
Formal Living Room
Laundry On Main Floor
Loft
Media Room
Garage Type
Front Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 4,779 sq. ft. |
| First Floor: | 2,526 sq. ft. |
| Second Floor: | 2,253 sq. ft. |
| Garage: | 652 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 5 |
| Bathrooms: | 5 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 54ft.-9in. |
| Depth: | 75ft. |
| Height: | 31ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 5:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
12
x 12
x 10-8
|
| Bedroom 3: |
12-4
x 12-4
x 9-2
|
| Bedroom 4: |
11-8
x 12
x 9-2
|
| Bedroom 4 Closet: |
5
x 7
|
| Bedroom 5: |
12
x 14-6
x 9-2
|
| Cafe: |
7-3
x 13-8
x 10-8
|
| Covered Balcony: |
14-3
x 8-6
x 12-9
|
| Covered Entry: |
9
x 11
|
| Covered Patio: |
13-6
x 7-4
|
| Covered Patio: |
15-1
x 10-8
|
| Den: |
12
x 14-6
x 11-8
|
| Dining: |
12-8
x 18-8
x 10-8
|
| Dressing: |
9-4
x 6
|
| Family Room: |
20-5
x 20-8
x 10-8
|
| Foyer: |
9
x 12-2
x 20-10
|
| Garage: |
18-8
x 20
|
| Kitchen: |
15-4
x 13-9
x 10-8
|
| Laundry: |
7-8
x 6-6
x 10-8
|
| Living Room: |
18-4
x 24-3
x 21-10
|
| Loft: |
9-8
x 10-8
x 9-2
|
| Master Bath: |
10-8
x 15-6
x 10-2
|
| Master Bedroom: |
20-5
x 16-8
x 11-2
|
| Master Closet 1: |
5-6
x 8-5
|
| Master Closet 2: |
5-6
x 8-5
|
| Media Room: |
11-8
x 19
|
| Pantry: |
6-6
x 4-4
|
| Powder Room: |
8
x 5-6
x 10-8
|
| Rear Balcony: |
13-4
x 7-4
|
| Storage: |
6-6
x 4-4
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
1 Set: $1,200.00
3 Sets: $1,300.00
5 Sets: $1,400.00
8 Sets: $1,550.00
Reproducible: $1,700.00
CAD Files: $2,050.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $250.00
|

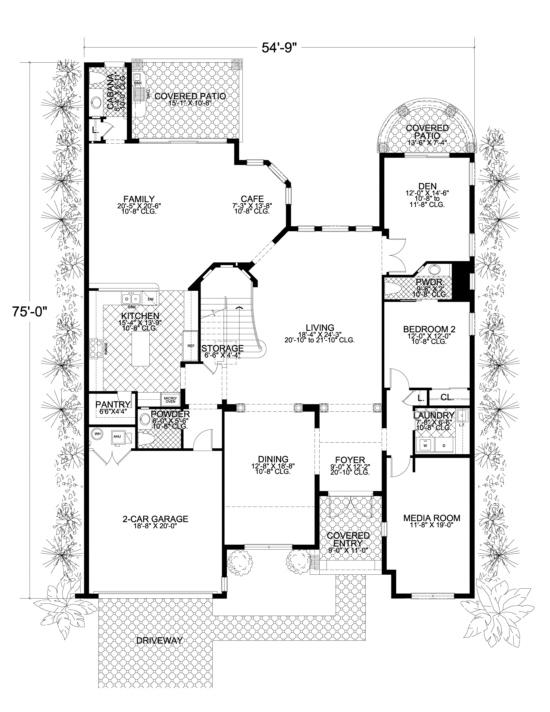

Floorplan 1
Images Copyrighted by Designer

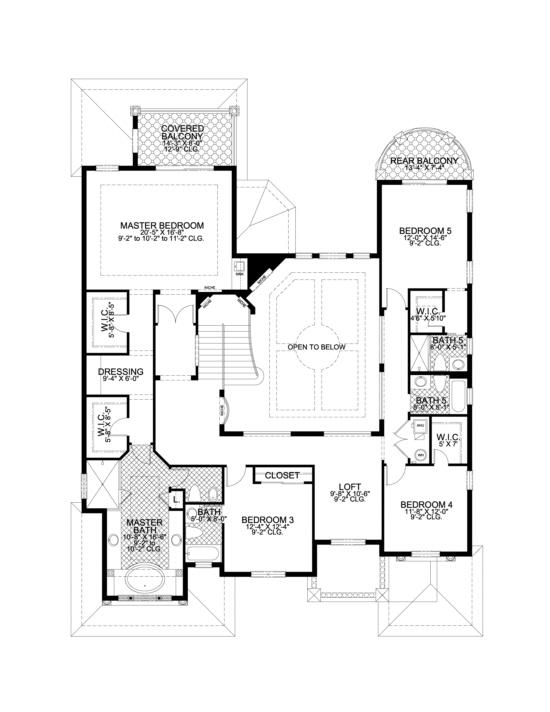

Floorplan 2
