House Plan 168-00032
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Formal Living Room
Jack and Jill Bathroom
Laundry On Main Floor
Master On Main Floor
Sitting Room
Split Bedrooms
Garage Type
Courtyard Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 5,131 sq. ft. |
| First Floor: | 5,131 sq. ft. |
| Entry: | 122 sq. ft. |
| Patio: | 393 sq. ft. |
| Garage: | 708 sq. ft. |
| Floors: | 1 |
| Bedrooms: | 5 |
| Bathrooms: | 4 |
| Half Baths: | 2 |
| Garages: | 3 car |
| Width: | 89ft.-2in. |
| Depth: | 113ft.-1in. |
| Height: | 31ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 5:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bath 2: |
8
x 5-2
x 10
|
| Bath 3: |
16
x 5
x 10
|
| Bath 4: |
5-2
x 8-3
x 10
|
| Bedroom 2: |
12
x 14-2
x 12
|
| Bedroom 3: |
13
x 12-6
x 12
|
| Bedroom 4: |
12-6
x 14
x 12
|
| Bedroom 5: |
12-8
x 12
x 12
|
| Breakfast: |
11-2
x 13-6
x 14
|
| Cabana Bath: |
3-8
x 6
x 10
|
| Covered Entry: |
10
x 11-2
x 16
|
| Covered Patio 1: |
13-10
x 23-2
x 14
|
| Covered Patio 2: |
12-9
x 10-2
x 14
|
| Dining Room: |
14
x 13-8
x 14
|
| Exercise: |
14
x 13-9
x 12
|
| Family Room: |
18-1
x 17
x 14
|
| Foyer: |
10-8
x 9-5
x 16
|
| Garage: |
27-8
x 25-4
x 10
|
| Hers W.i.c.: |
10-4
x 15-2
x 10
|
| His W.i.c.: |
6-8
x 10
x 10
|
| Kitchen: |
14
x 14-3
x 14
|
| Laundry: |
11-6
x 8-1
x 10
|
| Living Room: |
23-10
x 19-6
x 16
|
| Master Bath: |
14
x 15
x 12
|
| Master Bedroom: |
22
x 17-7
x 14
|
| Playroom: |
11-6
x 10-9
x 12
|
| Powder Room: |
5-2
x 5
x 10
|
| Study: |
13
x 13
x 12
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
1 Set: $1,300.00
3 Sets: $1,400.00
5 Sets: $1,500.00
8 Sets: $1,650.00
Reproducible: $1,800.00
CAD Files: $2,150.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $250.00
|

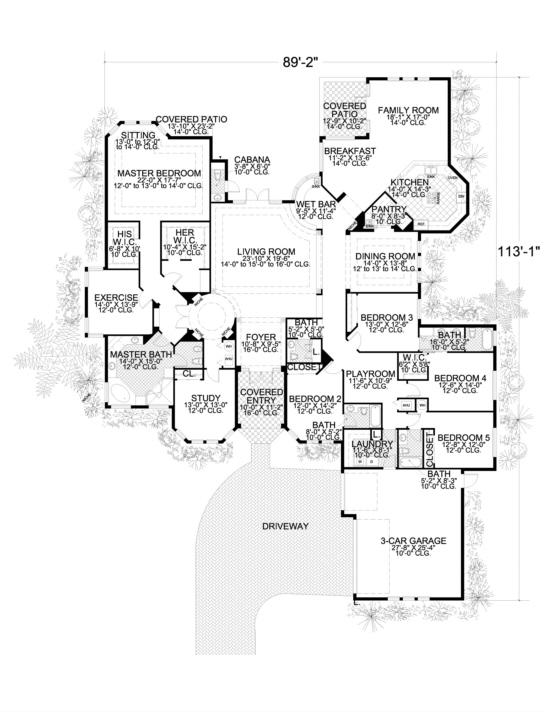

Floorplan
