House Plan 168-00031
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Formal Living Room
Jack and Jill Bathroom
Laundry On Main Floor
Master On Main Floor
Nook
Split Bedrooms
Garage Type
Front Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 5,084 sq. ft. |
| First Floor: | 5,084 sq. ft. |
| Entry: | 63 sq. ft. |
| Patio: | 807 sq. ft. |
| Garage: | 855 sq. ft. |
| Floors: | 1 |
| Bedrooms: | 6 |
| Bathrooms: | 5 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 108ft.-1in. |
| Depth: | 122ft.-1in. |
| Height: | 23ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 5:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bath 2: |
7
x 4-6
x 10
|
| Bath 3: |
4-5
x 4-5
x 10
|
| Bath 4: |
10
x 3-9
x 10
|
| Bath 5: |
11-10
x 4-6
x 10
|
| Bedroom 2: |
12-6
x 13-4
x 10
|
| Bedroom 2 Closet: |
6
x 4-8
x 10
|
| Bedroom 3: |
12-10
x 13-6
x 10
|
| Bedroom 3 Closet: |
5
x 5
x 10
|
| Bedroom 4: |
13-3
x 14
x 10
|
| Bedroom 5: |
14
x 12-6
x 10
|
| Bedroom 5 Closet: |
6-8
x 7-9
x 10
|
| Bedroom 6: |
14
x 13-2
x 10
|
| Cafe: |
12-2
x 10-5
x 12
|
| Dining Room: |
12
x 16
x 14
|
| Family Room: |
26-7
x 22-9
x 14
|
| Foyer : |
10-10
x 8-4
x 10
|
| Garage: |
34
x 25-6
x 9
|
| Hers Bath: |
10
x 13-9
x 10
|
| His Bath: |
8-5
x 8-5
x 10
|
| Kitchen: |
17-8
x 13-6
x 10
|
| Laundry: |
13-6
x 7
x 10
|
| Living Room: |
22-2
x 18-8
x 12
|
| Master Closet 1: |
9-3
x 8
x 10
|
| Master Closet 2: |
7-6
x 5-6
x 10
|
| Master Suite: |
19-4
x 20
x 12
|
| Powder Room: |
5
x 5
x 10
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
1 Set: $1,600.00
3 Sets: $1,700.00
5 Sets: $1,800.00
8 Sets: $1,950.00
Reproducible: $2,100.00
CAD Files: $2,950.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $250.00
|

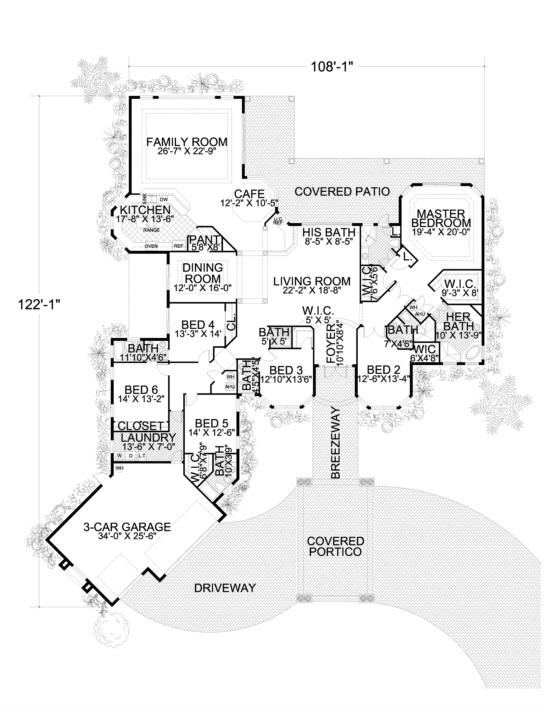

Floorplan
Images Copyrighted by Designer
