House Plan 168-00022
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Formal Living Room
Laundry On Main Floor
Master On Main Floor
Split Bedrooms
Garage Type
Side Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 3,631 sq. ft. |
| First Floor: | 3,631 sq. ft. |
| Entry: | 239 sq. ft. |
| Patio: | 1,202 sq. ft. |
| Garage: | 597 sq. ft. |
| Floors: | 1 |
| Bedrooms: | 3 |
| Bathrooms: | 4 |
| Garages: | 2 car |
| Width: | 107ft.-11in. |
| Depth: | 94ft.-1in. |
| Height: | 21ft.-9in. |
| Foundation: | Slab |
| Main Roof Pitch: | 5:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bath 2: |
5-4
x 10-4
x 8-10
|
| Bath 3: |
5-4
x 10-4
x 8-10
|
| Bedroom 2: |
11-4
x 12-4
x 9-10
|
| Bedroom 3: |
12
x 12-4
x 9-10
|
| Cabana: |
4-10
x 9-4
x 9-10
|
| Covered Entry: |
20-8
x 10-10
x 15-10
|
| Dining Room: |
14-7
x 14-8
x 10-6
|
| Familiy Room: |
18
x 16-4
|
| Foyer: |
10-8
x 9-4
x 15-10
|
| Garage: |
22-8
x 22-8
x 9-10
|
| Hers W.i.c.: |
6-10
x 9-8
x 7-10
|
| His W.i.c.: |
6-10
x 9-8
x 7-10
|
| Kitchen: |
12-7
x 17-4
|
| Lanai 1: |
33
x 13-4
x 10-6
|
| Lanai 2: |
24-7
x 10-8
x 10-6
|
| Laundry: |
15-8
x 6-2
x 9-10
|
| Living Room: |
17
x 15-2
x 17-2
|
| Master Bath: |
15-8
x 9
x 10-6
|
| Master Bedroom: |
16
x 17-4
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $925.00
8 Sets: $1,000.00
Reproducible: $1,200.00
CAD Files: $1,700.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $250.00
|

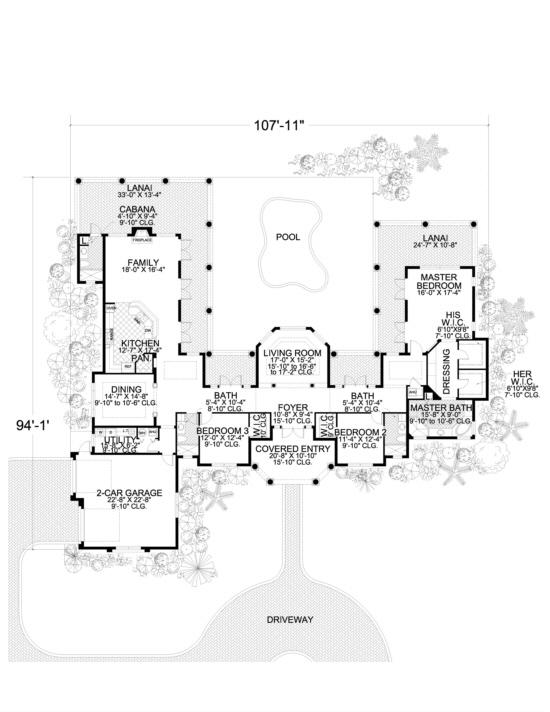

Floorplan
