House Plan 117-00046
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Keeping Room
Laundry Second Floor
Master Up
Study
Garage Type
Side Entry
Porch Type
Front
|
|
| Square Footage: | 3,216 sq. ft. |
| First Floor: | 1,670 sq. ft. |
| Second Floor: | 1,546 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 4 |
| Bathrooms: | 3 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 55ft. |
| Depth: | 61ft.-6in. |
| Height: | 36ft.-2in. |
| Foundation: | Slab
Unfinished Basement |
| Main Roof Pitch: | 12:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | 2 Story Grand: |
20-4
x 16
|
| Bedroom 2: |
12-1
x 11-7
x 9
|
| Bedroom 3: |
12
x 11-5
x 9
|
| Bedroom 4: |
12-1
x 13-5
x 9
|
| Breakfast: |
12
x 8-10
x 9
|
| Dining Room: |
12
x 15-8
x 9
|
| Garage: |
21-5
x 31-9
|
| Keeping Room: |
15-9
x 16-1
x 9
|
| Kitchen: |
17-5
x 10-6
x 9
|
| Laundry: |
12-6
x 6-8
x 9
|
| Master Bedroom: |
15-9
x 16-1
|
| Study: |
12-1
x 15-9
x 9
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
8 Sets: $920.00
Reproducible: $1,070.00
Additional Options
Additional Construction Sets: $60.00
Right Reading Reverse Set: $300.00
|

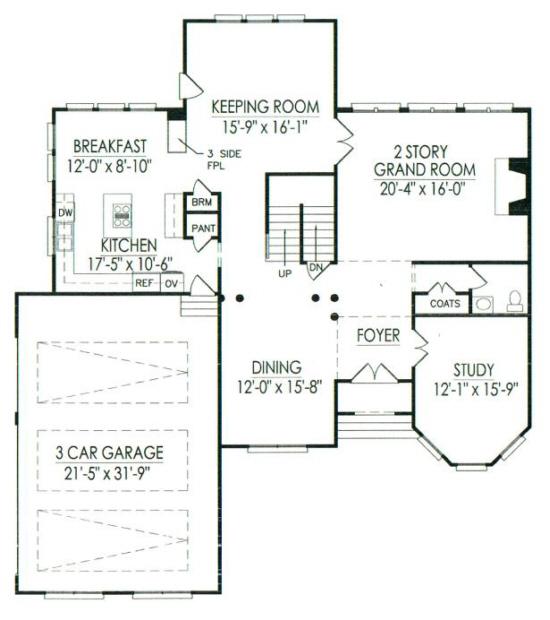

Floorplan 1
Images Copyrighted by Designer

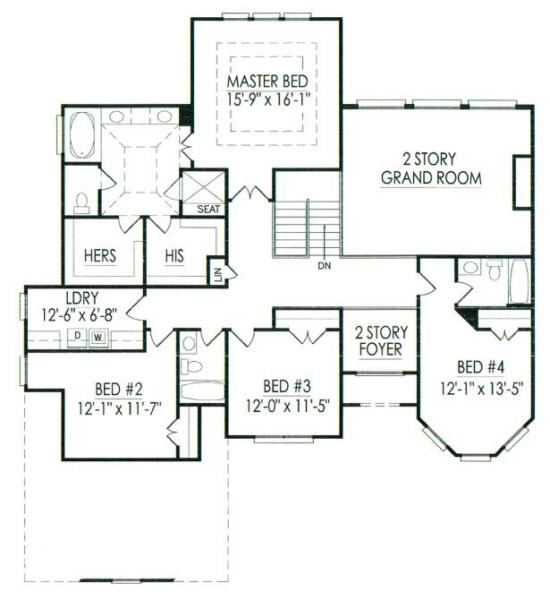

Floorplan 2
