House Plan 117-00033
|
View the Floorplan

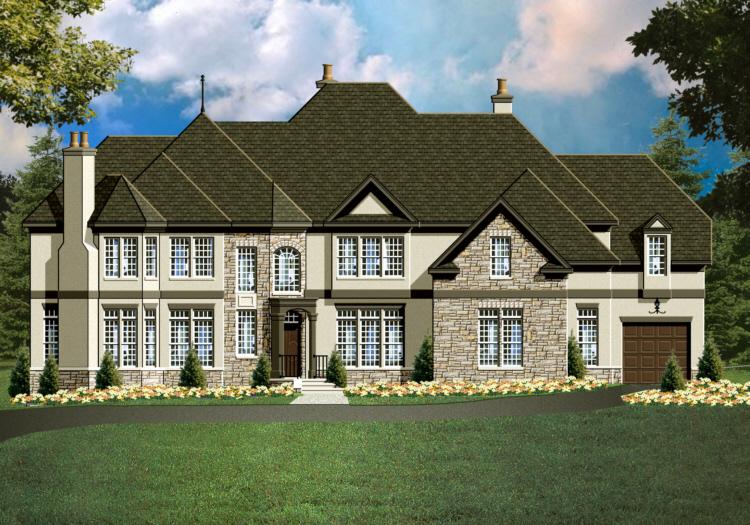

If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Additional Bedroom Down
Bonus Room
Formal Living Room
Guest Room
Jack and Jill Bathroom
Laundry Second Floor
Master Up
Sitting Room
Garage Type
Front Entry
Side Entry
|
|
| Square Footage: | 5,007 sq. ft. |
| First Floor: | 2,676 sq. ft. |
| Second Floor: | 2,321 sq. ft. |
| Bonus Room: | 255 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 5 |
| Bathrooms: | 4 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 86ft.-11in. |
| Depth: | 62ft.-6in. |
| Height: | 37ft.-6in. |
| Foundation: | Crawl Space
Unfinished Basement |
| Main Roof Pitch: | 12:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | 2 Car Garage: |
22
x 27-4
|
| 2 Story Foyer: |
9-1
x 21-2
|
| 2 Story Living: |
15-8
x 15-2
|
| Bedroom 3: |
16-3
x 14-9
|
| Bedroom 4: |
14
x 13-7
|
| Bedroom 5: |
19-5
x 16-3
|
| Bonus Room: |
12-11
x 22-2
x 9
|
| Breakfast: |
11-10
x 11
|
| Dining Hall: |
18-11
x 13-9
|
| Garage: |
11-8
x 19-5
|
| Grand Room: |
20-1
x 17-6
x 9
|
| Guest Bedroom: |
13
x 14-1
x 9
|
| Kitchen: |
15-7
x 15-7
x 9
|
| Master Bedroom: |
18-4
x 17-6
|
| Master Sitting: |
12-3
x 12-3
|
| Pantry: |
8-6
x 4-4
x 9
|
| Parlor: |
19-5
x 19-5
x 9
|
| Storage: |
6-6
x 4-4
x 9
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
8 Sets: $1,920.00
Reproducible: $2,070.00
Additional Options
Additional Construction Sets: $60.00
Right Reading Reverse Set: $300.00
|

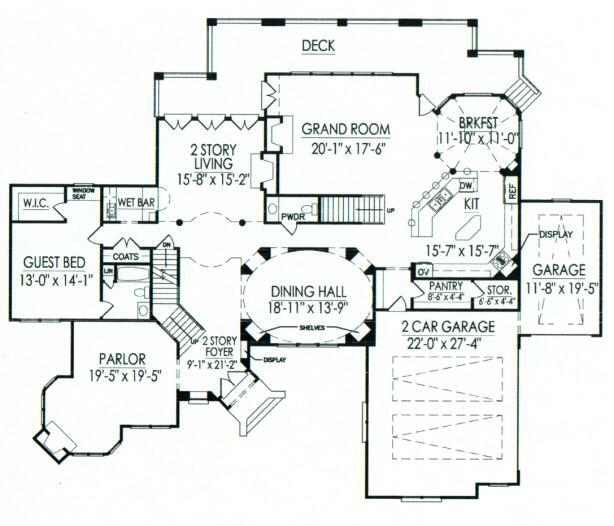

Floorplan 1
Images Copyrighted by Designer

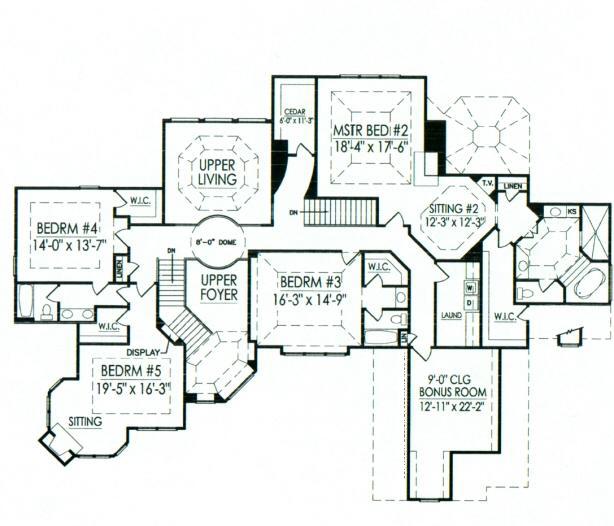

Floorplan 2
