House Plan 117-00021

View the Floorplan



If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.

Features

live chat
Additional Rooms
Formal Living Room
Jack and Jill Bathroom
Laundry On Main Floor
Master On Main Floor
Split Bedrooms

Garage Type
Courtyard Entry

Porch Type
Front
Rear


Square Footage:2,880 sq. ft.
First Floor:2,880 sq. ft.
Floors:1
Bedrooms:4
Bathrooms:3
Half Baths:1
Garages:3 car
Width:69ft.-8in.
Depth:83ft.-10in.
Height:26ft.-2in.
Foundation:Unfinished Basement
Main Roof Pitch:9:12
Additional Specs:Show Room Dimensions

More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page

Pricing

8 Sets: $920.00
Reproducible: $1,070.00

Additional Options

Additional Construction Sets: $60.00
Right Reading Reverse Set: $300.00

Add To Cart

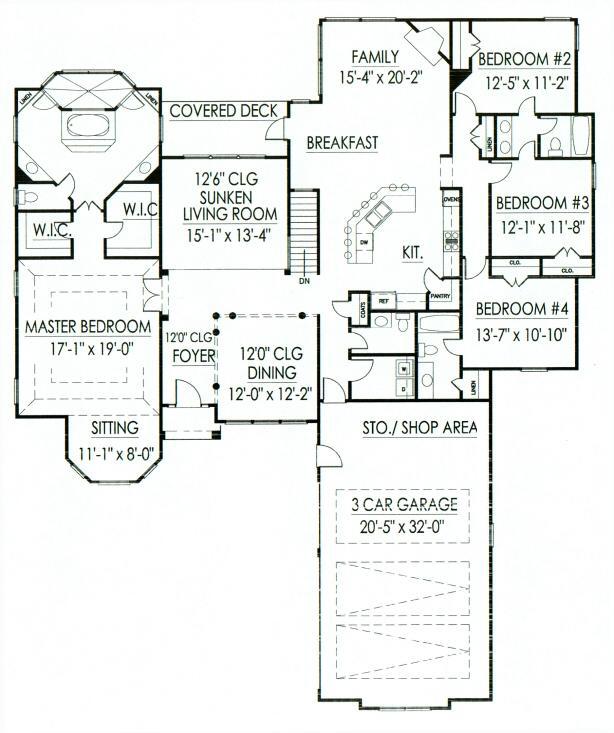

Floorplan

Images Copyrighted by Designer

floor plan
