House Plan 053-00417
|
View the Floorplan

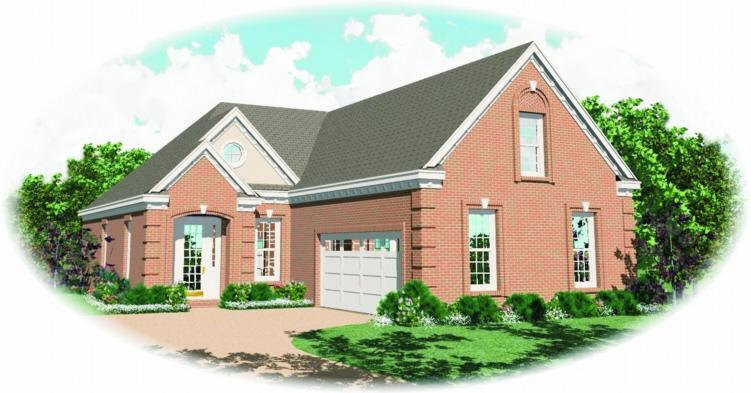

If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Bonus Room
Laundry On Main Floor
Master On Main Floor
Garage Type
Courtyard Entry
Porch Type
Front
|
|
| Square Footage: | 2,002 sq. ft. |
| First Floor: | 1,507 sq. ft. |
| Second Floor: | 495 sq. ft. |
| Bonus Room: | 276 sq. ft. |
| Floors: | 1.5 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 38ft. |
| Depth: | 69ft. |
| Height: | 23ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 12:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
11
x 11
x 8
|
| Bedroom 3: |
11
x 11
x 8
|
| Breakfast: |
11
x 8
x 9
|
| Dining Room: |
13
x 12
x 9
|
| Family Room: |
13
x 19
|
| Future Recreation Room: |
13
x 14
x 8
|
| Garage: |
21
x 20
|
| Kitchen: |
9
x 12
x 9
|
| Laundry: |
6
x 6
x 9
|
| Master Bath: |
8
x 16
x 9
|
| Master Bedroom: |
13
x 16
|
| Master Closet: |
10
x 11
x 9
|
| Storage: |
5
x 6
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $650.00
Reproducible: $1,100.00
CAD Files: $1,100.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $275.00
Mirrored Reverse: $50.00
|

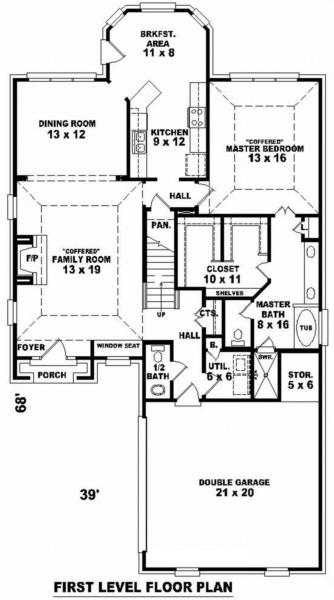

Floorplan 1
Images Copyrighted by Designer

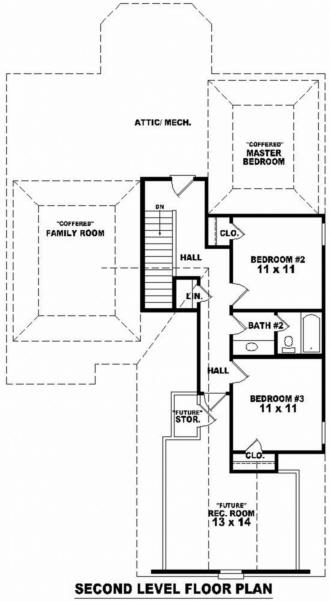

Floorplan 2
