House Plan 053-00309
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Laundry On Main Floor
Master On Main Floor
Media Room
Split Bedrooms
Garage Type
Courtyard Entry
Porch Type
Front
|
|
| Square Footage: | 1,843 sq. ft. |
| First Floor: | 1,374 sq. ft. |
| Second Floor: | 469 sq. ft. |
| Garage: | 460 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 39ft. |
| Depth: | 63ft. |
| Height: | 29ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 14:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
11
x 12
x 8
|
| Bedroom 3: |
11
x 12
x 8
|
| Bedroom 3 Closet: |
4
x 6
x 8
|
| Breakfast Room: |
9
x 10
x 9
|
| Dining Room: |
11
x 12
x 9
|
| Front Porch: |
8
x 4
|
| Garage: |
20
x 20
|
| Great Room: |
15
x 16
x 9
|
| Kitchen: |
12
x 10
x 9
|
| Laundry Room: |
5
x 6
x 9
|
| Lower Half Bath: |
5
x 5
x 9
|
| Master Closet: |
6
x 8
x 9
|
| Master Suite: |
12
x 16
x 9
|
| Optional Media/Recreation Room: |
13
x 30
x 8
|
| Upper Bath: |
11
x 5
x 8
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $600.00
Reproducible: $1,000.00
CAD Files: $1,000.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $250.00
Mirrored Reverse: $50.00
|

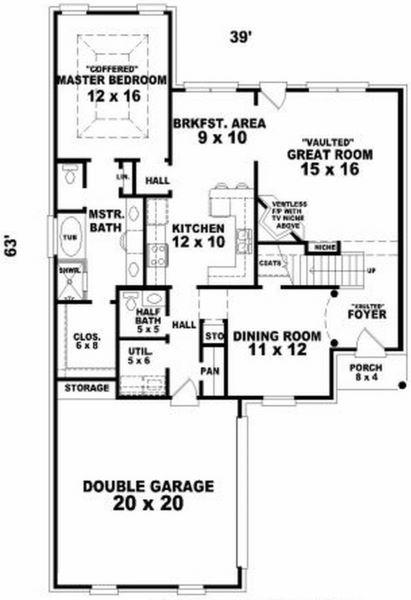

First Floor
Images Copyrighted by Designer

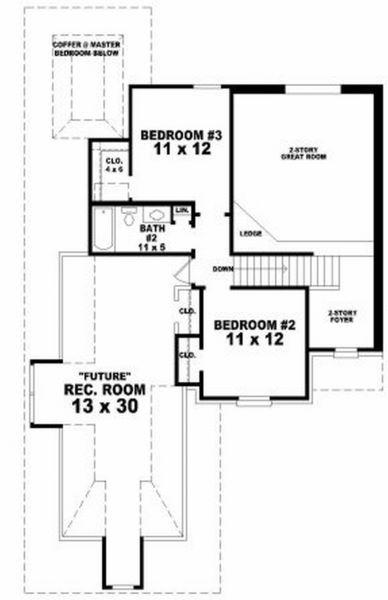

Second Floor
