House Plan 053-00230
|
View the Floorplan

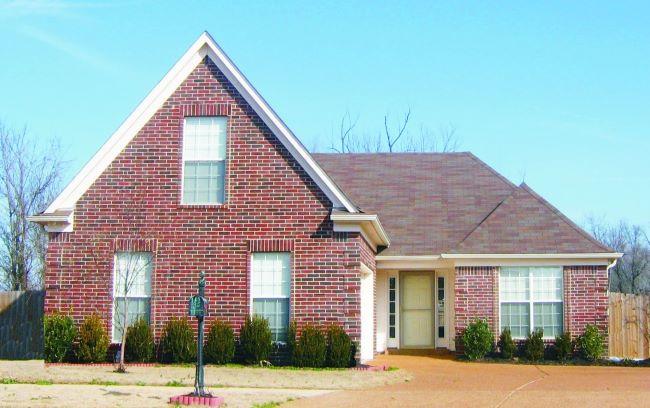

If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Laundry On Main Floor
Master On Main Floor
Split Bedrooms
Garage Type
Courtyard Entry
Porch Type
Front
|
|
| Square Footage: | 1,346 sq. ft. |
| First Floor: | 1,346 sq. ft. |
| Garage: | 521 sq. ft. |
| Floors: | 1 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Garages: | 2 car |
| Width: | 40ft. |
| Depth: | 58ft. |
| Height: | 19ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 12:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bathroom: |
8
x 5
x 8
|
| Bedroom 2: |
11
x 11
x 8
|
| Bedroom 2 Closet: |
5
x 2
x 8
|
| Bedroom 3: |
11
x 11
x 8
|
| Bedroom 3 Closet: |
6
x 2
x 8
|
| Eat In Kitchen: |
14
x 13
x 8
|
| Front Porch: |
7
x 4
|
| Garage: |
20
x 18
|
| Great Room: |
14
x 19
x 8
|
| Hall Coat Closet: |
2
x 2
x 8
|
| Hall Linen Closet: |
2
x 2
x 8
|
| Laundry Room: |
9
x 6
x 8
|
| Master Bath: |
13
x 12
x 8
|
| Master Closet: |
5
x 7
x 8
|
| Master Shower: |
3
x 5
|
| Master Suite: |
13
x 14
x 8
|
| Storage Room 1: |
9
x 6
|
| Storage Room 2: |
7
x 7
|
| Storage Room 3: |
4
x 3
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $500.00
Reproducible: $800.00
CAD Files: $800.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $200.00
Mirrored Reverse: $50.00
|

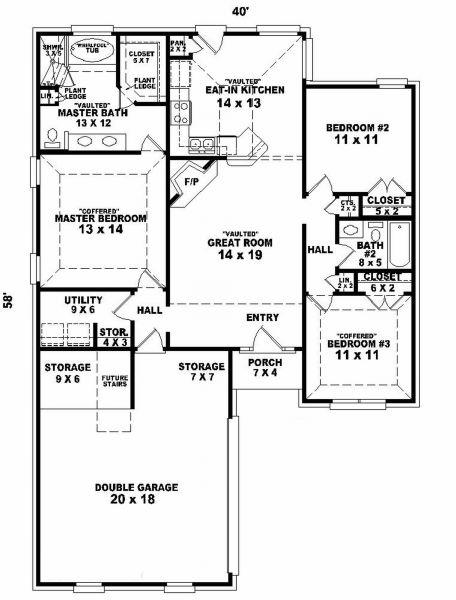

Floorplan
Images Copyrighted by Designer
