House Plan 053-00196
|
View the Floorplan

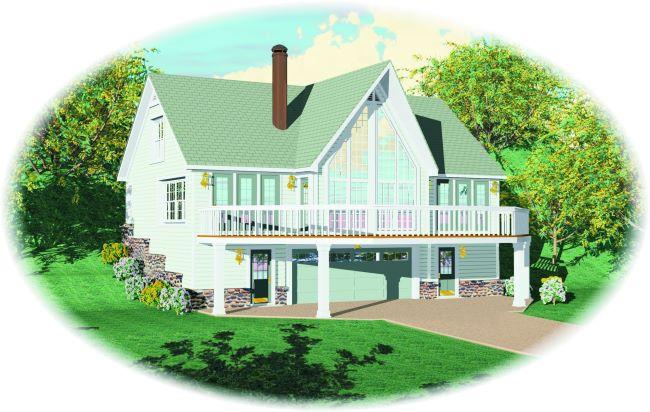

Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Guest Room
Home Office
Laundry On Main Floor
Loft
Master On Main Floor
Mud Room
Split Bedrooms
Garage Type
Front Entry
Porch Type
Front
|
|
| Square Footage: | 1,656 sq. ft. |
| First Floor: | 1,318 sq. ft. |
| Second Floor: | 338 sq. ft. |
| Garage: | 1,310 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 3 |
| Bathrooms: | 3 |
| Garages: | 2 car |
| Width: | 44ft. |
| Depth: | 47ft. |
| Height: | 30ft. |
| Foundation: | Unfinished Basement |
| Main Roof Pitch: | 10:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bathroom: |
9
x 5
x 8
|
| Deck: |
43
x 17
|
| Family Room: |
15
x 21
x 8
|
| Garage: |
42
x 28
|
| Guest Closet: |
5
x 6
x 8
|
| Guest Room: |
12
x 15
x 8
|
| Guest Room: |
13
x 11
x 8
|
| Home Office: |
15
x 11
x 8
|
| Kitchen: |
15
x 12
x 8
|
| Laundry/Mud Room: |
9
x 7
x 8
|
| Master Bath: |
12
x 11
x 8
|
| Master Closet: |
7
x 5
x 8
|
| Master Suite: |
12
x 17
x 8
|
| Mechanical Room: |
20
x 5
|
| Office Closet: |
5
x 7
x 8
|
| Stoop: |
5
x 4
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $550.00
Reproducible: $900.00
CAD Files: $900.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $225.00
Mirrored Reverse: $50.00
|

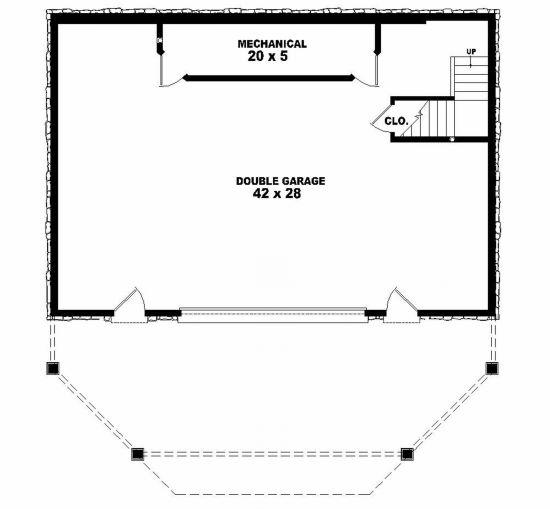

Basement/Garage Floor
Images Copyrighted by Designer

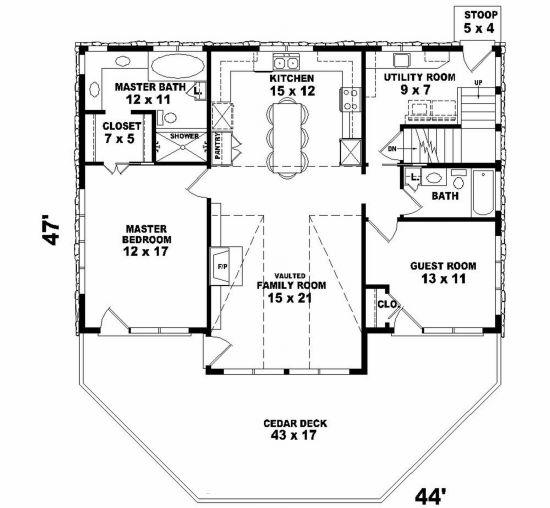

First Floor

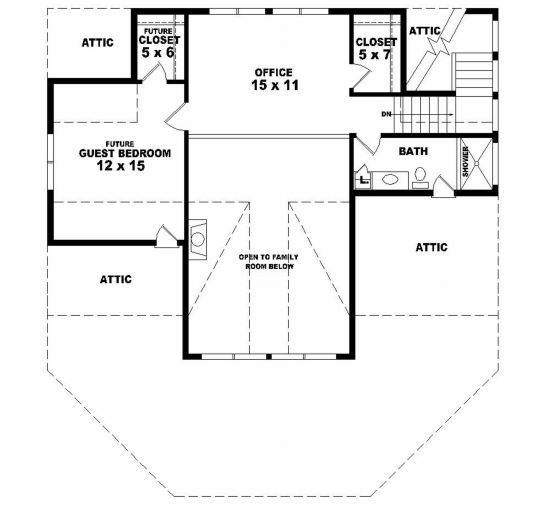

Second Floor
