House Plan 053-00169
|
View the Floorplan

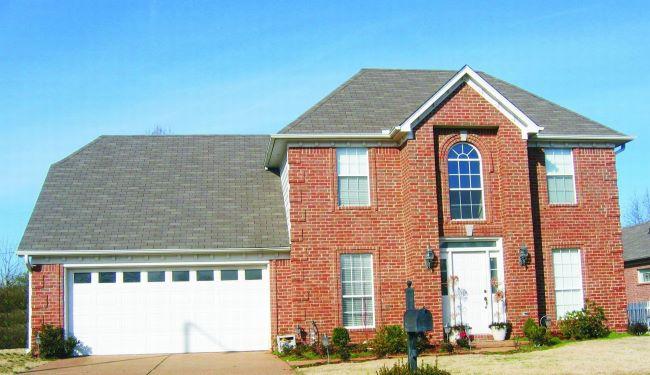

If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Laundry On Main Floor
Master On Main Floor
Media Room
Split Bedrooms
Garage Type
Side Entry
Porch Type
Rear
|
|
| Square Footage: | 1,621 sq. ft. |
| First Floor: | 1,218 sq. ft. |
| Second Floor: | 403 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 49ft. |
| Depth: | 47ft. |
| Height: | 25ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 12:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
10
x 10
x 8
|
| Bedroom 3: |
10
x 10
x 8
|
| Breakfast Room: |
11
x 13
x 9
|
| Dining Room: |
10
x 10
x 9
|
| Family Room: |
13
x 22
x 9
|
| Garage: |
20
x 20
|
| Kitchen: |
10
x 8
x 9
|
| Laundry Room: |
5
x 6
x 9
|
| Master Bath: |
10
x 9
x 9
|
| Master Closet 1: |
5
x 5
x 9
|
| Master Closet 2: |
5
x 5
x 9
|
| Master Suite: |
12
x 15
x 9
|
| Media/Recreation Room: |
20
x 15
x 8
|
| Storage Room: |
6
x 7
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $550.00
Reproducible: $900.00
CAD Files: $900.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $225.00
Mirrored Reverse: $50.00
|

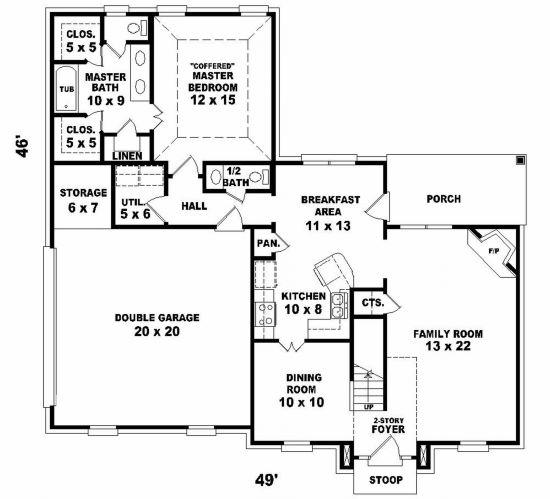

First Floor
Images Copyrighted by Designer

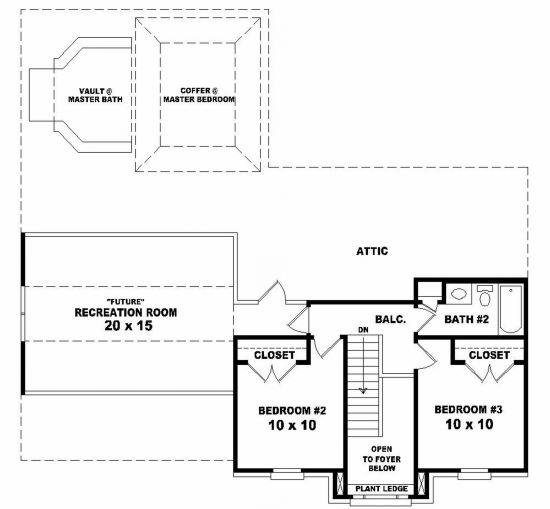

Second Floor
