House Plan 053-00102
|
View the Floorplan

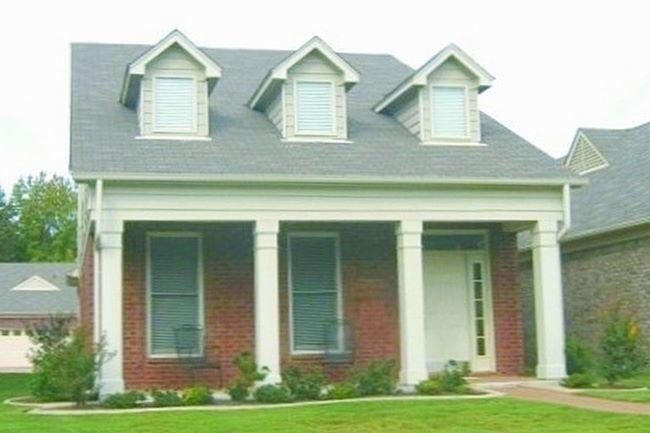

If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Laundry On Main Floor
Loft
Master On Main Floor
Media Room
Split Bedrooms
Garage Type
Rear Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 1,655 sq. ft. |
| First Floor: | 1,090 sq. ft. |
| Second Floor: | 565 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 24ft. |
| Depth: | 78ft. |
| Height: | 26ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 6:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bathroom: |
5
x 10
x 8
|
| Bedroom 2: |
14
x 10
x 8
|
| Bedroom 2 Closet: |
10
x 2
x 8
|
| Bedroom 3: |
14
x 10
x 8
|
| Bedroom 3 Closet: |
4
x 5
x 8
|
| Dining Room: |
12
x 10
x 9
|
| Family Room: |
19
x 14
x 9
|
| Front Porch: |
24
x 6
|
| Garage: |
20
x 20
|
| Kitchen: |
11
x 9
x 9
|
| Master Bath: |
9
x 11
x 9
|
| Master Closet: |
7
x 9
x 9
|
| Master Linen Closet 1: |
3
x 2
x 9
|
| Master Linen Closet 2: |
4
x 3
x 9
|
| Master Suite: |
15
x 13
x 9
|
| Media/Recreation Room: |
19
x 12
x 9
|
| Rear Porch: |
7
x 13
|
| Storage Room: |
15
x 3
x 9
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $550.00
Reproducible: $900.00
CAD Files: $900.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $225.00
Mirrored Reverse: $50.00
|

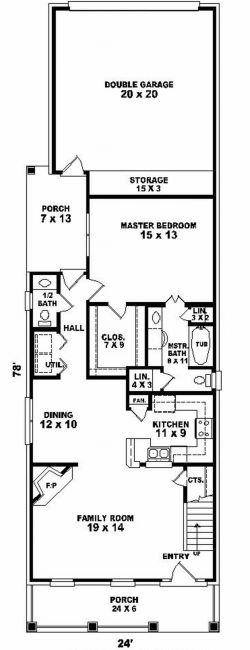

First Floor
Images Copyrighted by Designer

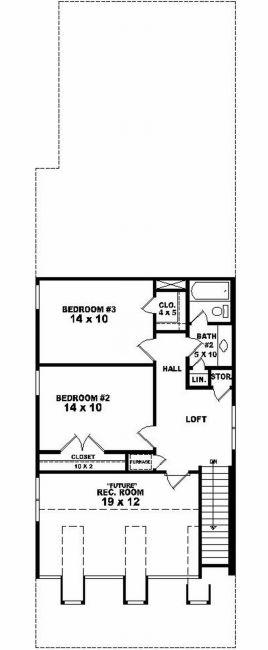

Second Floor

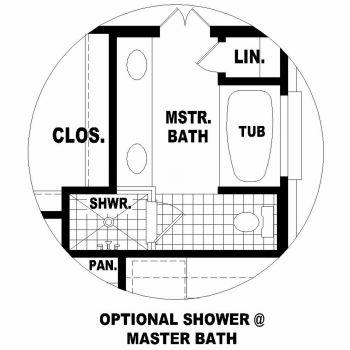

Optional Master Bath
