House Plan 042-00009
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Additional Bedroom Down
Elevator
Formal Living Room
Laundry Second Floor
Media Room
Split Bedrooms
Garage Type
Drive Under
Front Entry
Porch Type
Front
Rear
Stacked
|
|
| Square Footage: | 3,004 sq. ft. |
| First Floor: | 1,259 sq. ft. |
| Second Floor: | 1,190 sq. ft. |
| Bonus Room: | 388 sq. ft. |
| Garage: | 1,024 sq. ft. |
| Basement: | 169 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 4 |
| Bathrooms: | 3 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 34ft.-6in. |
| Depth: | 59ft.-6in. |
| Height: | 36ft.-7in. |
| Foundation: | Pier |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
12
x 13
x 9
|
| Bedroom 3: |
11-8
x 13
x 9
|
| Deck: |
10
x 12-5
|
| Dining Room: |
12-8
x 12-6
x 9
|
| Front Porch: |
21-10
x 8
x 9
|
| Garage 1: |
12
x 24-4
|
| Garage 2: |
12
x 24-4
|
| Kitchen: |
12
x 14-6
x 9
|
| Living Room: |
24
x 16
x 9
|
| Master Sitting Room: |
7
x 9
x 9
|
| Master Suite: |
17
x 14-8
x 9
|
| Media/Recreation Room: |
24
x 16-6
x 9
|
| Rear Porch 1: |
24-8
x 10
|
| Rear Porch 2: |
24-8
x 10
|
More House Plans by this designer
Save House Plan
Modify This Plan
Build Cost
Email to Friend
Print This Page
Pricing
6 Sets: $850.00
Reproducible: $1,350.00
CAD Files: $1,850.00
Additional Options
Additional Construction Sets: $70.00
Right Reading Reverse Set: $100.00
|

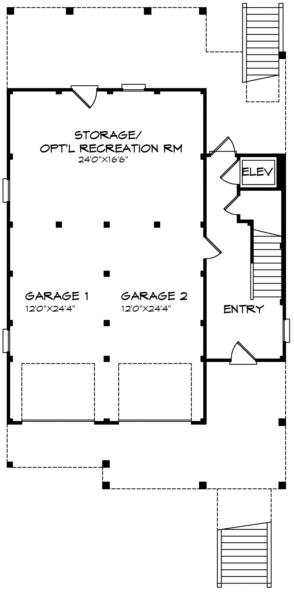

Ground Floor
Images Copyrighted by Designer

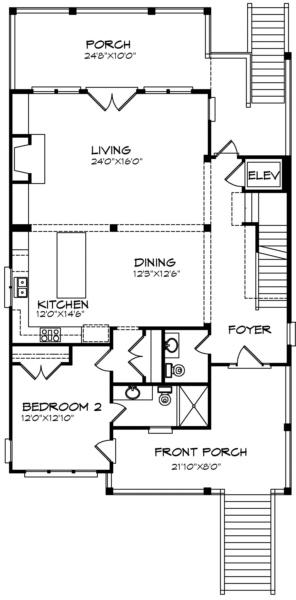

First Floor

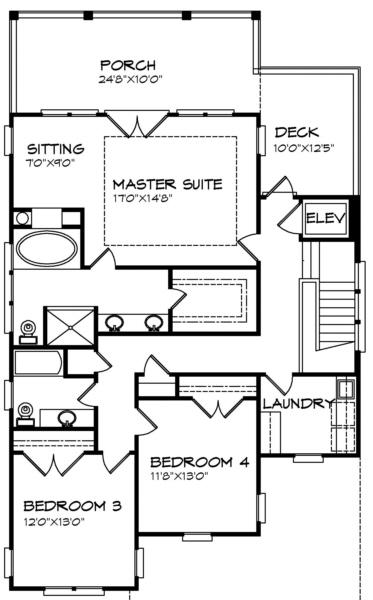

Second Floor
