House Plan 039-00541
|
View the Floorplan

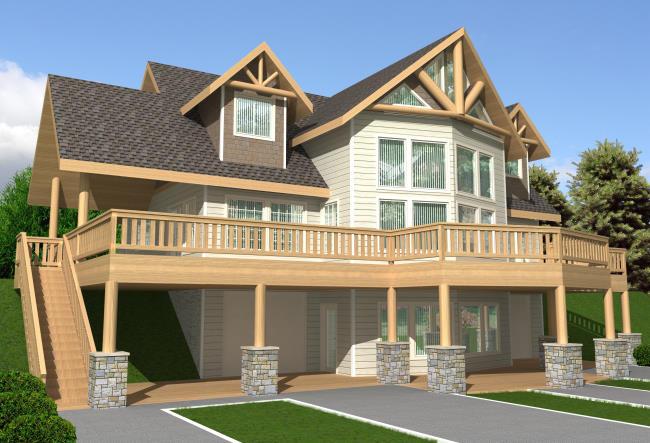

Rear Elevation Front Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Laundry On Main Floor
Loft
Master On Main Floor
Split Bedrooms
Garage Type
Drive Under
Rear Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 2,466 sq. ft. |
| First Floor: | 1,444 sq. ft. |
| Second Floor: | 1,022 sq. ft. |
| Garage: | 700 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 46ft. |
| Depth: | 36ft.-10in. |
| Height: | 28ft.-4in. |
| Foundation: | Slab |
| Main Roof Pitch: | 12:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
12
x 27
x 13-5
|
| Bedroom 3: |
12
x 27
x 13-5
|
| Deck: |
11
x 17
|
| Dining Room: |
12
x 12-5
x 9
|
| Foyer: |
6-10
x 14
x 9
|
| Garage 1: |
11-10
x 26-10
|
| Garage 2: |
11-10
x 26-10
|
| Great Room: |
20
x 17
x 9
|
| Kitchen: |
12
x 13-6
x 9
|
| Loft: |
20
x 17-9
x 13-5
|
| Master Suite: |
12
x 15-10
x 9
|
| Mechanical/Storage Room: |
20
x 13-9
x 9-4
|
| Unfinished Basement: |
20
x 17
x 9-4
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $725.00
8 Sets: $820.00
Reproducible: $750.00
CAD Files: $900.00
Additional Options
Additional Construction Sets: $70.00
|

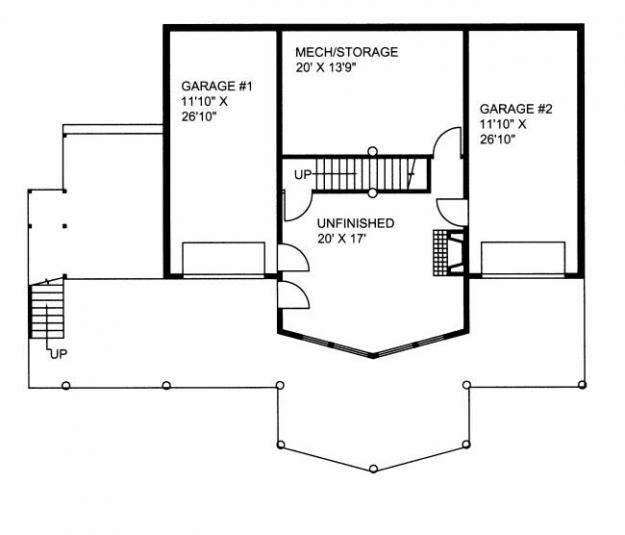

Basement Floor
Images Copyrighted by Designer

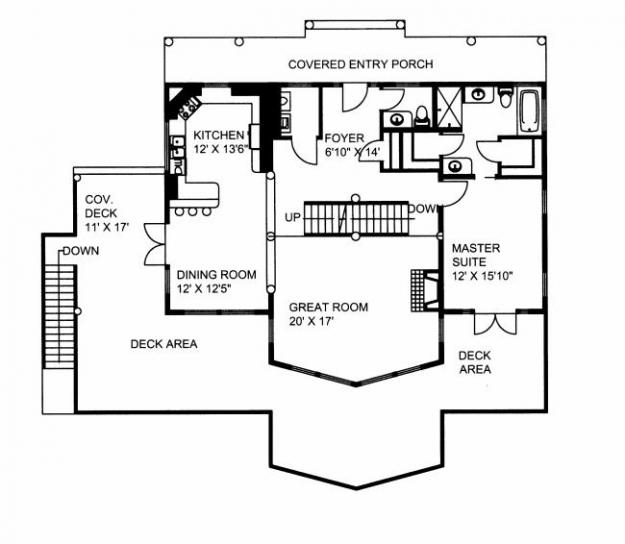

First Floor

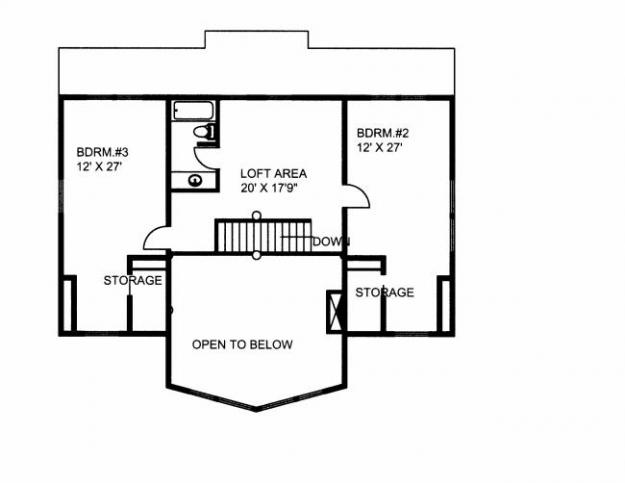

Second Floor
