House Plan 039-00516
|
View the Floorplan

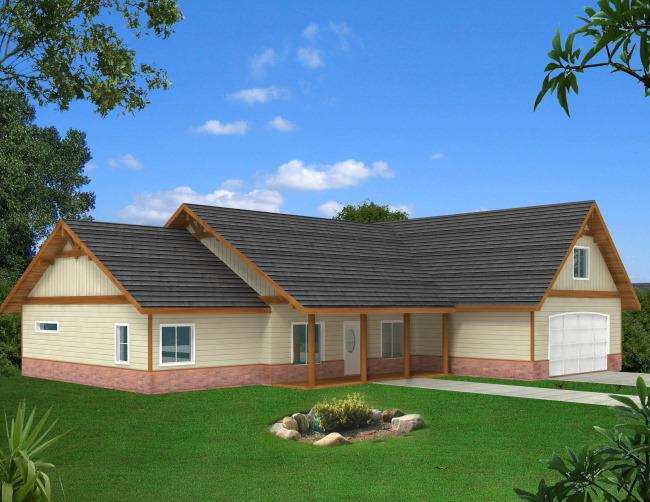

Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Laundry On Main Floor
Master On Main Floor
Split Bedrooms
Garage Type
Front Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 2,839 sq. ft. |
| First Floor: | 2,023 sq. ft. |
| Second Floor: | 816 sq. ft. |
| Garage: | 569 sq. ft. |
| Floors: | 1.5 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Garages: | 2 car |
| Width: | 66ft. |
| Depth: | 54ft. |
| Height: | 23ft. |
| Foundation: | Crawl Space |
| Main Roof Pitch: | 12:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Attic Storage Room 1: |
13
x 25
|
| Attic Storage Room 2: |
13
x 24-2
|
| Bedroom 2: |
11-6
x 12-2
x 9
|
| Bedroom 3: |
11-4
x 12-2
x 9
|
| Den: |
10-4
x 10-6
x 9
|
| Dining Room: |
10-10
x 12-6
x 9
|
| Garage: |
23
x 24
|
| Great Room: |
18-2
x 15-8
x 9
|
| Kitchen: |
9
x 11-6
x 9
|
| Master Bath: |
14-6
x 8-6
x 9
|
| Master Suite: |
15
x 14-6
x 9
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $725.00
8 Sets: $820.00
Reproducible: $750.00
CAD Files: $900.00
Additional Options
Additional Construction Sets: $70.00
|

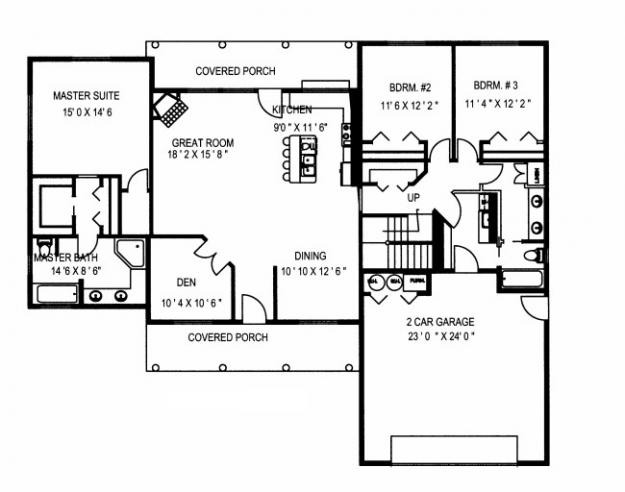

Main Floor
Images Copyrighted by Designer

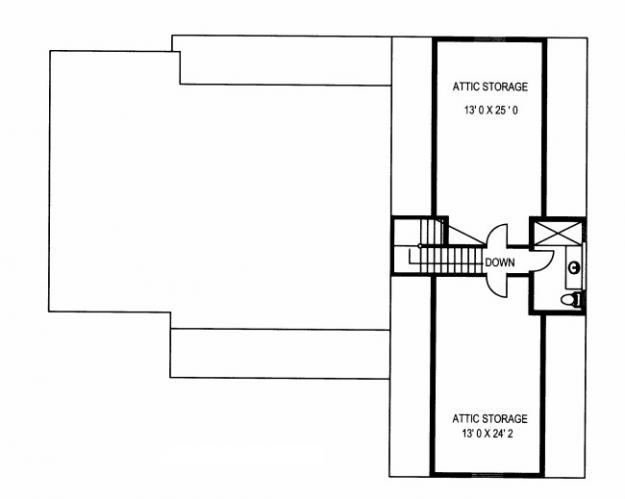

Attic Floor
