House Plan 039-00514
|
View the Floorplan

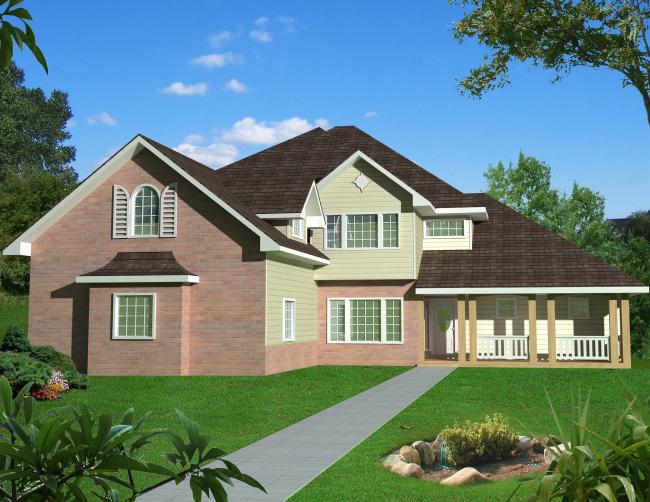

Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Additional Bedroom Down
Bonus Room
Formal Living Room
Keeping Room
Laundry On Main Floor
Library
Loft
Master On Main Floor
Media Room
Nook
Split Bedrooms
Garage Type
Side Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 5,707 sq. ft. |
| First Floor: | 2,308 sq. ft. |
| Second Floor: | 1,091 sq. ft. |
| Bonus Room: | 456 sq. ft. |
| Garage: | 870 sq. ft. |
| Basement: | 2,308 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 5 |
| Bathrooms: | 5 |
| Garages: | 3 car |
| Width: | 70ft. |
| Depth: | 55ft. |
| Height: | 32ft.-6in. |
| Foundation: | Finished Basement |
| Main Roof Pitch: | 9:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
12
x 13-9
x 9
|
| Bedroom 3: |
13-2
x 13
x 9
|
| Bedroom 4: |
13-2
x 13-8
x 9
|
| Bedroom 5: |
14-5
x 12-9
x 9
|
| Dining /Living Room: |
14-6
x 18-8
x 9
|
| Dining Room: |
12
x 14
x 9
|
| Exercise Room: |
15-5
x 12-10
x 9
|
| Garage: |
25
x 32-4
|
| Grand Room: |
18-4
x 18-10
x 9
|
| Keeping Room: |
16
x 15
x 9
|
| Kitchen 1: |
6-2
x 11
x 9
|
| Kitchen 2: |
23
x 11-8
x 9
|
| Laundry Room: |
15-2
x 10
x 9
|
| Library : |
17-5
x 13-7
x 9
|
| Loft: |
7-10
x 19-5
x 9
|
| Master Suite: |
18
x 15-10
x 9
|
| Media/Recreation Room: |
18-4
x 18-10
x 9
|
| Nook: |
12
x 11-6
x 9
|
| Pantry: |
20-5
x 6
x 9
|
| Theater Room: |
13-5
x 10-10
x 9
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $825.00
8 Sets: $930.00
Reproducible: $850.00
CAD Files: $950.00
Additional Options
Additional Construction Sets: $75.00
|

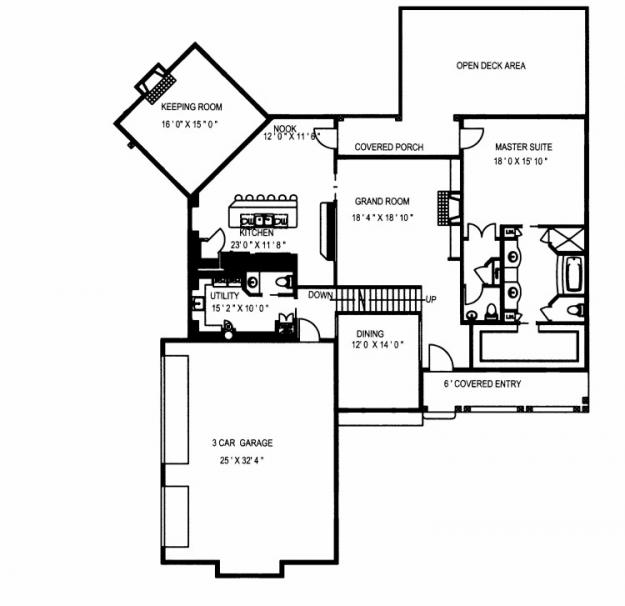

First Floor
Images Copyrighted by Designer

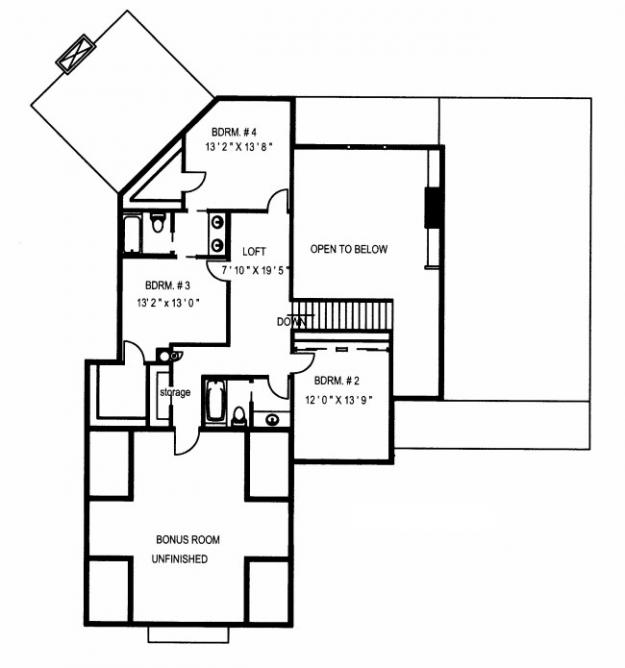

Floorplan 2
