House Plan 039-00512
|
View the Floorplan

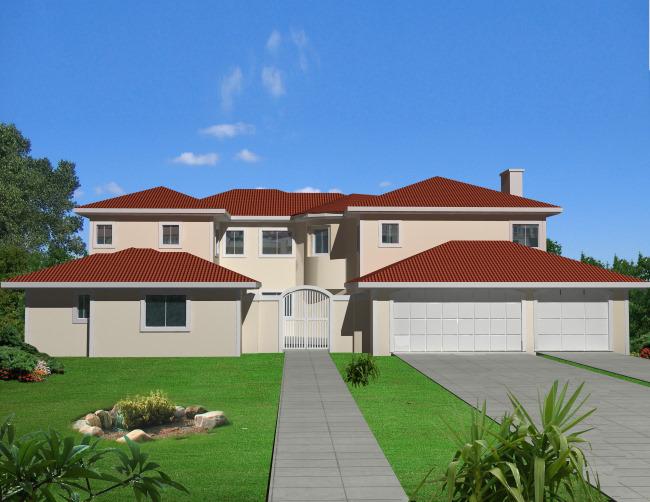

Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Formal Living Room
Jack and Jill Bathroom
Laundry On Main Floor
Library
Master Up
Nook
Sitting Room
Garage Type
Front Entry
Porch Type
Rear
|
|
| Square Footage: | 3,815 sq. ft. |
| First Floor: | 2,384 sq. ft. |
| Second Floor: | 1,431 sq. ft. |
| Garage: | 755 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 4 |
| Bathrooms: | 4 |
| Garages: | 3 car |
| Width: | 74ft.-4in. |
| Depth: | 60ft.-8in. |
| Height: | 26ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 5:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
11
x 12-4
x 9
|
| Bedroom 3: |
11-8
x 14
x 9
|
| Bedroom 4: |
14
x 12
x 9-2
|
| Dining Room: |
14
x 12
x 9
|
| Family Room: |
14-8
x 18-10
x 9
|
| Garage: |
31-4
x 23-4
|
| Kitchen: |
15-4
x 14-10
x 9
|
| Laundry Room: |
13-10
x 8
x 9
|
| Living Room: |
19-8
x 15-6
x 9
|
| Master Sitting Room: |
15
x 13-8
x 9-2
|
| Master Suite: |
13-4
x 19-4
x 9-2
|
| Nook: |
10-8
x 11-6
x 9
|
| Upper Rear Porch: |
11
x 13-2
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $825.00
8 Sets: $930.00
Reproducible: $850.00
CAD Files: $950.00
Additional Options
Additional Construction Sets: $75.00
|

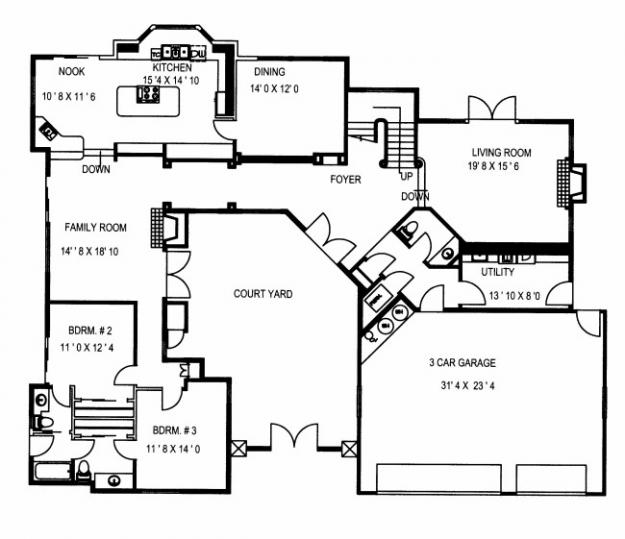

First Floor
Images Copyrighted by Designer

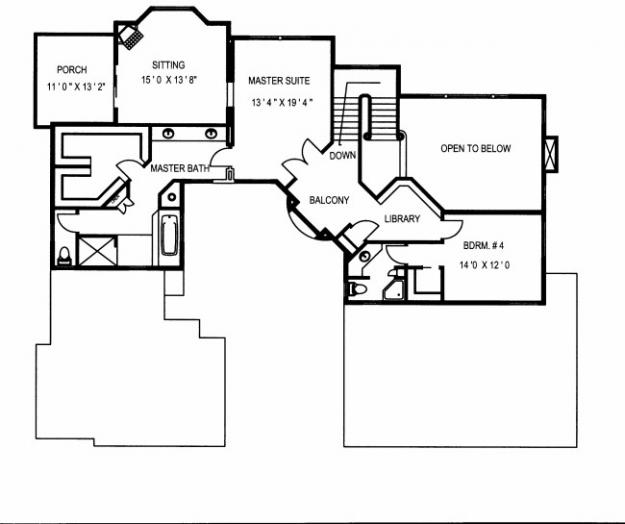

Second Floor
