House Plan 039-00511
|
View the Floorplan

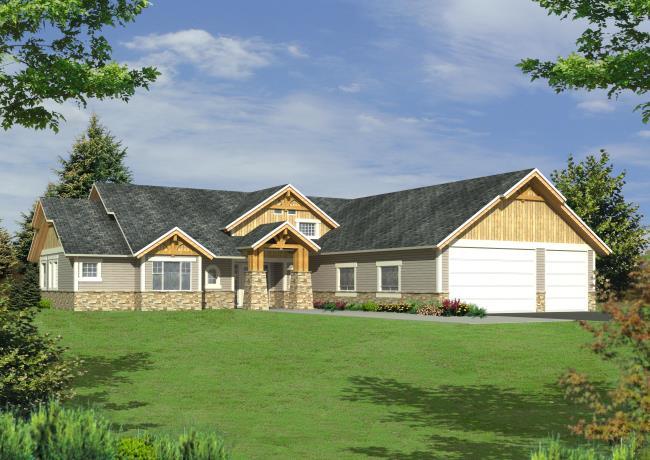

Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Guest Room
Laundry On Main Floor
Loft
Master On Main Floor
Media Room
Split Bedrooms
Two Masters
Garage Type
Front Entry
Porch Type
Rear
|
|
| Square Footage: | 4,826 sq. ft. |
| First Floor: | 2,282 sq. ft. |
| Second Floor: | 262 sq. ft. |
| Garage: | 1,363 sq. ft. |
| Basement: | 2,282 sq. ft. |
| Floors: | 1.5 |
| Bedrooms: | 3 |
| Bathrooms: | 3 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 80ft.-4in. |
| Depth: | 77ft.-2in. |
| Height: | 25ft. |
| Foundation: | Finished Basement |
| Main Roof Pitch: | 8:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Deck: |
11
x 22
|
| Den: |
11
x 9-6
x 10-1
|
| Dining Room: |
11
x 15-6
x 10-1
|
| Foyer: |
12
x 18
x 10-1
|
| Garage: |
40-2
x 33
|
| Great Room: |
23
x 21
x 10-1
|
| Kitchen: |
15
x 15
x 10-1
|
| Laundry Room: |
10-2
x 8
x 10-1
|
| Master Suite: |
16-8
x 17-8
x 10-1
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $825.00
8 Sets: $930.00
Reproducible: $850.00
CAD Files: $950.00
Additional Options
Additional Construction Sets: $75.00
|

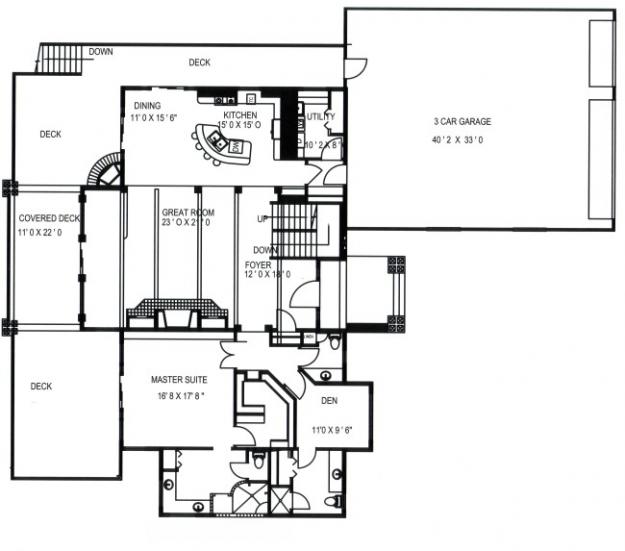

Main Floor
Images Copyrighted by Designer

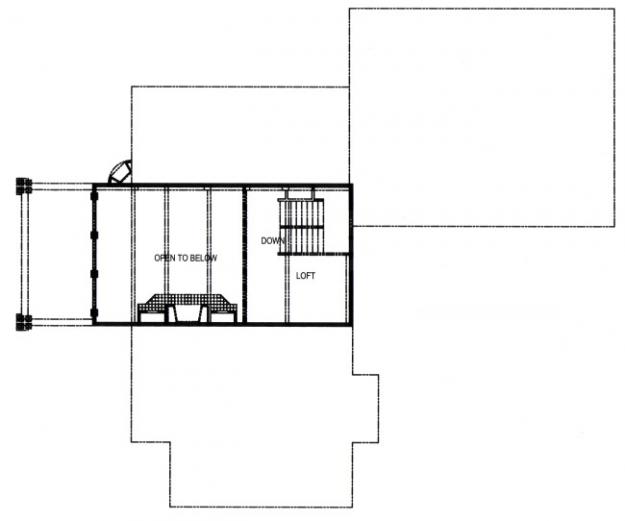

Loft Floor
