House Plan 039-00503
|
View the Floorplan
Rear Elevation Front Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Additional Bedroom Down
Jack and Jill Bathroom
Laundry On Main Floor
Master On Main Floor
Mud Room
Spa
Split Bedrooms
Garage Type
Front Entry
Porch Type
Front
Rear
Stacked
|
|
| Square Footage: | 3,994 sq. ft. |
| First Floor: | 2,117 sq. ft. |
| Second Floor: | 240 sq. ft. |
| Garage: | 1,184 sq. ft. |
| Basement: | 1,637 sq. ft. |
| Floors: | 1.5 |
| Bedrooms: | 3 |
| Bathrooms: | 3 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 102ft. |
| Depth: | 84ft.-1in. |
| Height: | 35ft.-10in. |
| Foundation: | Finished Basement |
| Main Roof Pitch: | 7:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Balcony: |
24-9
x 6-4
|
| Bedroom 2: |
11-4
x 9-10
x 9
|
| Bedroom 3: |
13
x 9-10
x 9
|
| Dining Room: |
17
x 10-2
x 9
|
| Family Room: |
223-6
x 24-4
x 9
|
| Foyer: |
18-6
x 8-6
x 9
|
| Front Porch: |
6
x 6
|
| Garage: |
40
x 27-4
|
| Gym: |
16-1
x 13-1
x 9
|
| Kitchen: |
16-6
x 14-2
x 9
|
| Loft: |
15-4
x 14-8
|
| Master Suite: |
16-8
x 17
x 9
|
| Mechanical Room: |
9-4
x 8
x 9
|
| Rear Porch: |
16
x 15-4
|
| Wet Bar: |
8
x 9-4
x 9
|
| Wine Storage : |
15-1
x 10-10
x 9
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $825.00
8 Sets: $930.00
Reproducible: $850.00
CAD Files: $950.00
Additional Options
Additional Construction Sets: $75.00
|

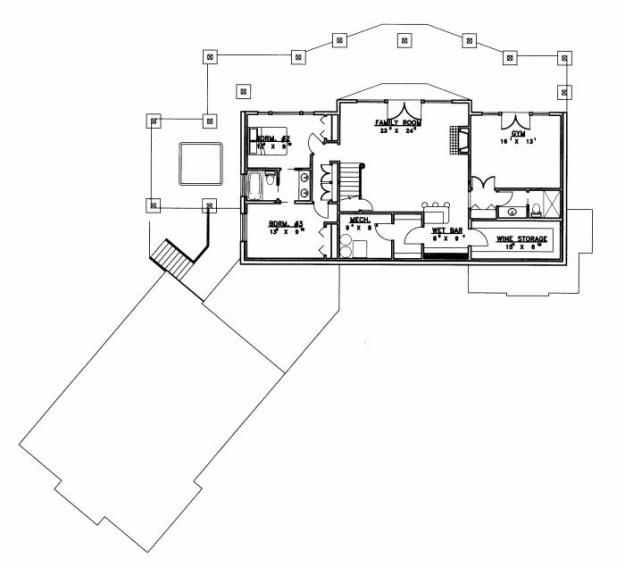

Basement Floor
Images Copyrighted by Designer

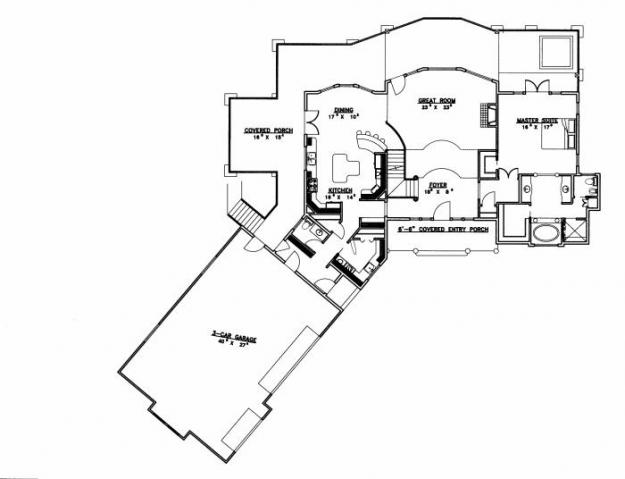

Main Floor

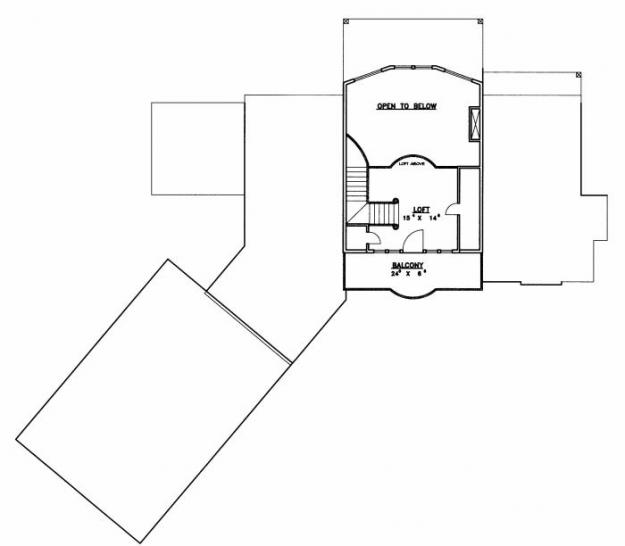

Loft Floor
