House Plan 039-00502
|
View the Floorplan
Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Additional Bedroom Down
Laundry On Main Floor
Laundry Second Floor
Master On Main Floor
Media Room
Split Bedrooms
Garage Type
Front Entry
Porch Type
Rear
|
|
| Square Footage: | 5,640 sq. ft. |
| First Floor: | 2,462 sq. ft. |
| Garage: | 746 sq. ft. |
| Basement: | 3,178 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 3 |
| Bathrooms: | 3 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 75ft.-4in. |
| Depth: | 50ft. |
| Height: | 28ft.-8in. |
| Foundation: | Finished Basement |
| Main Roof Pitch: | 7:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
14
x 17-8
x 10
|
| Bedroom 3: |
13
x 15-2
x 10
|
| Craft Room: |
12
x 13-6
x 10
|
| Den: |
13
x 12-6
x 12
|
| Dining Room: |
12-6
x 16
x 12
|
| Garage: |
23
x 23-6
|
| Garage Shop: |
13
x 14-8
|
| Great Room: |
20
x 23-6
x 12
|
| Kitchen: |
12-8
x 17
x 12
|
| Library: |
8-2
x 8-3
x 12
|
| Master Closet: |
13-10
x 8-4
x 12
|
| Master Suite: |
15
x 17-4
x 12
|
| Mechanical Room: |
21
x 8-8
x 10
|
| Media/Recreation Room: |
34-4
x 22-2
x 10
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $825.00
8 Sets: $930.00
Reproducible: $850.00
CAD Files: $950.00
Additional Options
Additional Construction Sets: $75.00
|

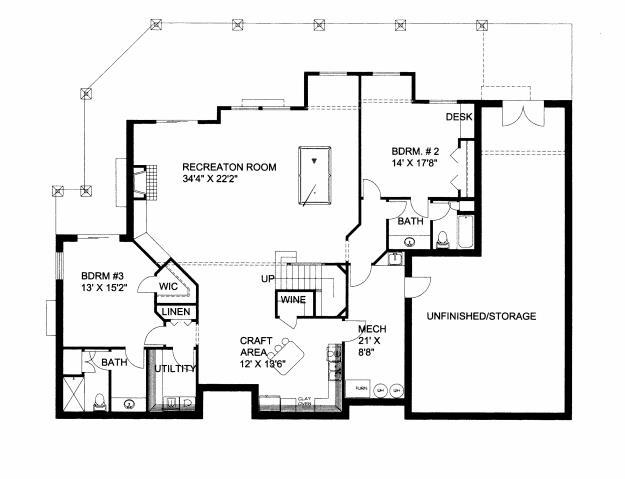

Basement Floor
Images Copyrighted by Designer

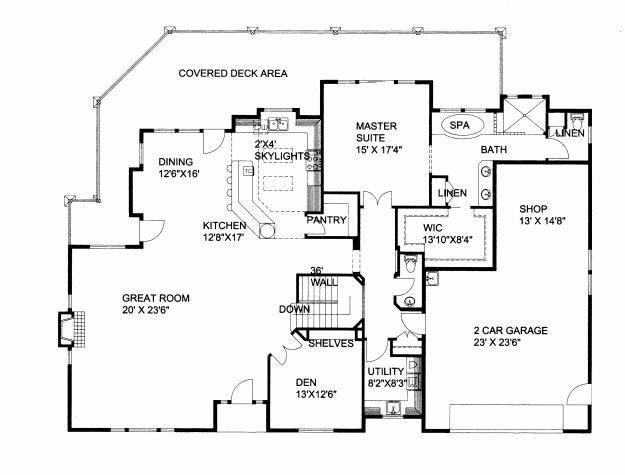

Main Floor
