House Plan 039-00470
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Additional Bedroom Down
Laundry On Main Floor
Loft
Master Up
Media Room
Split Bedrooms
Porch Type
Front
Rear
Stacked
|
|
| Square Footage: | 3,717 sq. ft. |
| First Floor: | 1,436 sq. ft. |
| Second Floor: | 845 sq. ft. |
| Basement: | 1,436 sq. ft. |
| Floors: | 3 |
| Bedrooms: | 5 |
| Bathrooms: | 3 |
| Half Baths: | 1 |
| Width: | 46ft. |
| Depth: | 36ft.-10in. |
| Height: | 34ft.-6in. |
| Foundation: | Slab |
| Main Roof Pitch: | 10:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
12
x 18-1
x 8-2
|
| Bedroom 3: |
12
x 18-1
x 8-2
|
| Bedroom 4: |
11-5
x 12
x 9
|
| Bedroom 5: |
11-5
x 12-3
x 9
|
| Dining Room: |
12
x 12-5
x 9
|
| Foyer: |
6-10
x 14
x 9
|
| Great Room: |
20
x 17
x 9
|
| Kitchen: |
12
x 13-6
x 9
|
| Laundry Room: |
11-5
x 11-4
x 9
|
| Loft: |
20
x 17-9
|
| Master Suite: |
12
x 15-10
x 9
|
| Media/Recreation Room: |
20
x 17
x 9
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $825.00
8 Sets: $930.00
Reproducible: $850.00
CAD Files: $950.00
Additional Options
Additional Construction Sets: $75.00
|

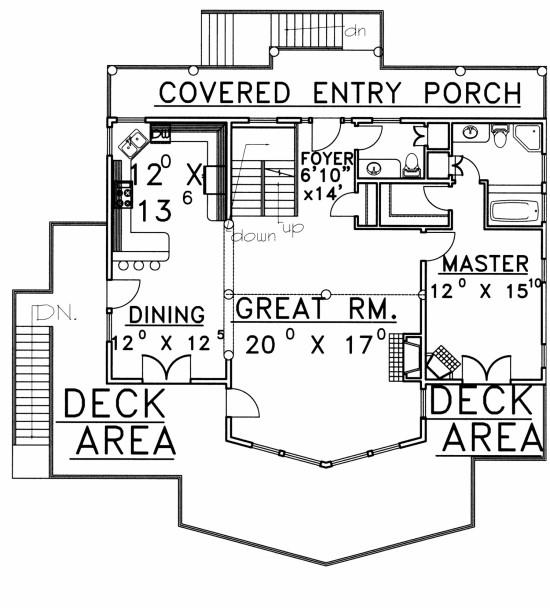

First Floor
Images Copyrighted by Designer

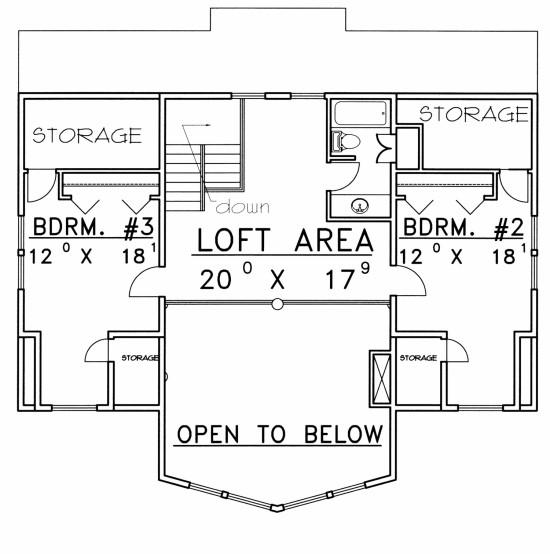

Second Floor

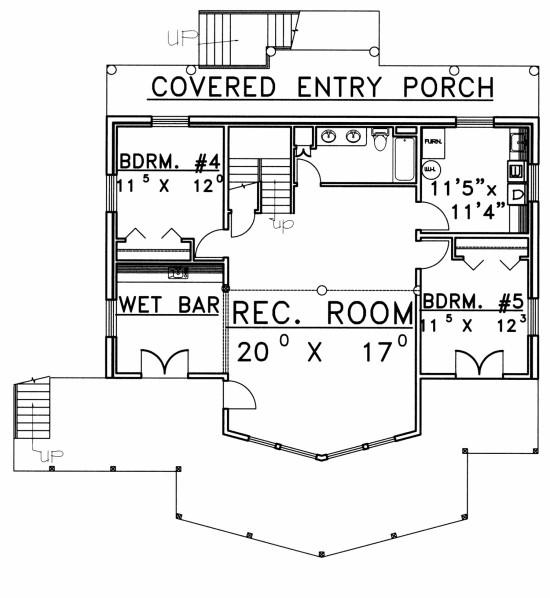

Third Floor
