House Plan 039-00316
|
View the Floorplan

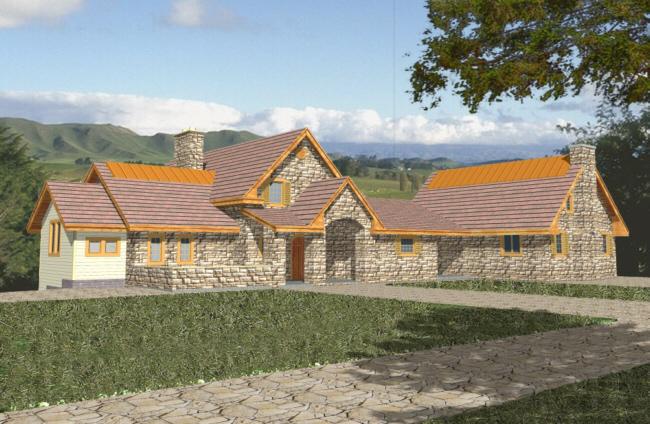

Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Additional Bedroom Down
Guest Room
Laundry On Main Floor
Master On Main Floor
Media Room
Mud Room
Sitting Room
Garage Type
Side Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 4,145 sq. ft. |
| First Floor: | 2,125 sq. ft. |
| Second Floor: | 334 sq. ft. |
| Garage: | 952 sq. ft. |
| Basement: | 1,686 sq. ft. |
| Floors: | 1.5 |
| Bedrooms: | 3 |
| Bathrooms: | 3 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 99ft. |
| Depth: | 78ft.-6in. |
| Height: | 26ft.-11in. |
| Foundation: | Finished Basement
Crawl Space |
| Main Roof Pitch: | 12:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
12-7
x 14
x 9
|
| Breezeway: |
10
x 18
|
| Deck: |
22
x 13
|
| Dining Room: |
15-6
x 11
x 9
|
| Foyer: |
18
x 12
x 9
|
| Front Entry: |
10-2
x 12-9
|
| Garage: |
25-4
x 35-5
|
| Great Room: |
21
x 22
x 9
|
| Guest Suite: |
13-8
x 13-9
x 9
|
| Kitchen: |
16
x 15
x 9
|
| Laundry Room: |
15-6
x 8
x 9
|
| Loft: |
12-8
x 14-8
x 8
|
| Master Suite: |
17-8
x 18
x 8
|
| Mechanical Room: |
15-11
x 6
x 9
|
| Media Room: |
21
x 19-8
x 9
|
| Mud Room: |
11-2
x 6
x 9
|
| Weight Room: |
18-11
x 8-5
x 9
|
| Wet Bar: |
9-2
x 9
x 9
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $825.00
8 Sets: $930.00
Reproducible: $850.00
CAD Files: $950.00
Additional Options
Additional Construction Sets: $75.00
|

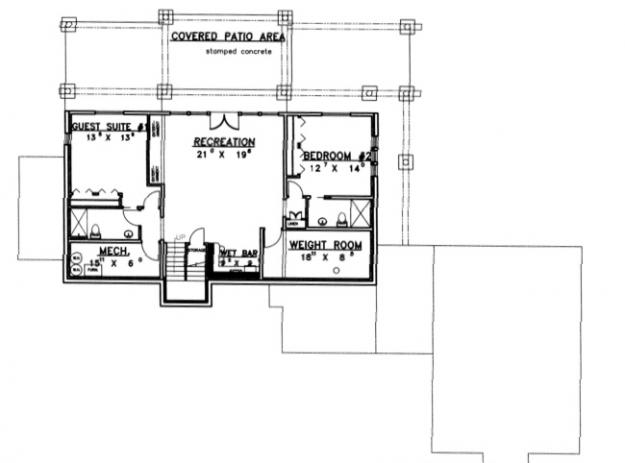

Basement Floor
Images Copyrighted by Designer

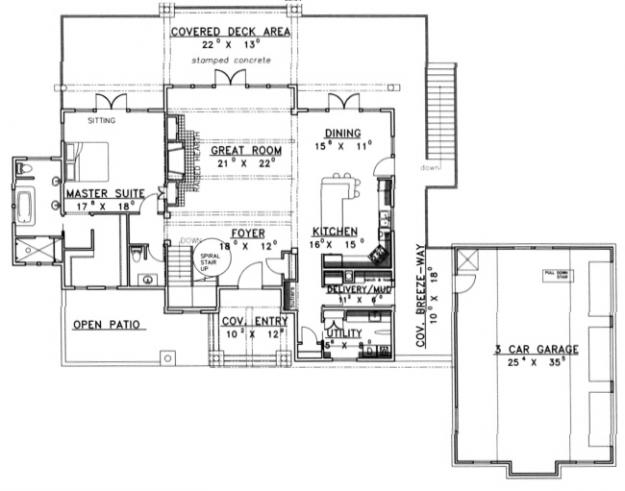

Main Floor

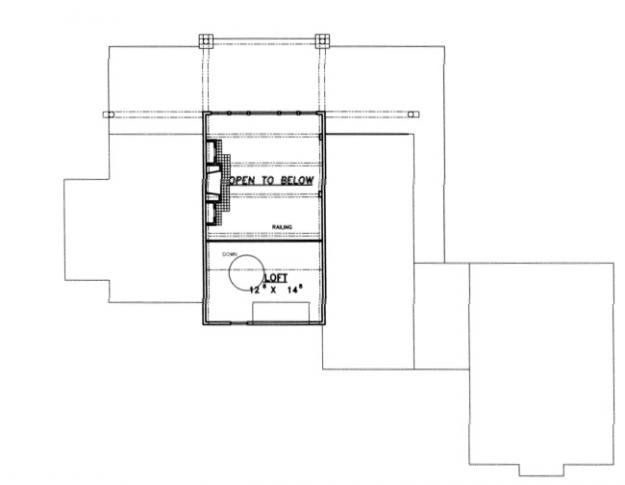

Loft Floor
