House Plan 039-00297
|
View the Floorplan

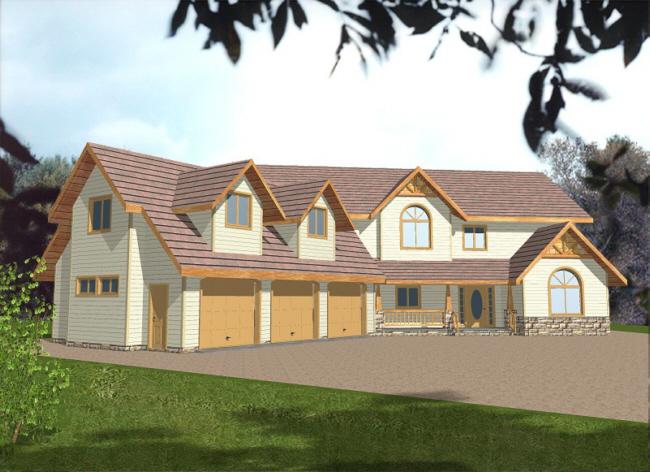

If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Bonus Room
Formal Living Room
Guest Room
Laundry Second Floor
Master Up
Mud Room
Garage Type
Front Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 3,107 sq. ft. |
| First Floor: | 1,686 sq. ft. |
| Second Floor: | 1,421 sq. ft. |
| Bonus Room: | 687 sq. ft. |
| Garage: | 1,041 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 4 |
| Bathrooms: | 3 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 76ft.-6in. |
| Depth: | 76ft.-10in. |
| Height: | 27ft.-5in. |
| Foundation: | Crawl Space |
| Main Roof Pitch: | 12:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 3: |
18-2
x 11-8
x 9
|
| Bedroom 4: |
11
x 16-10
x 9
|
| Den: |
12-6
x 11
x 8
|
| Dining Room: |
11-10
x 15-6
x 8
|
| Family Room: |
18-4
x 14
x 8
|
| Front Porch: |
20-4
x 5-6
|
| Garage: |
35-4
x 25-4
|
| Guest Suite: |
12-6
x 10-8
x 8
|
| Kitchen: |
11-10
x 14-6
x 8
|
| Living Room: |
16-4
x 12
x 8
|
| Lower Laundry/Mud Room: |
8
x 13-8
x 8
|
| Master Suite: |
16-2
x 14
x 9
|
| Upper Laundry Room: |
9-6
x 14-10
x 9
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $725.00
8 Sets: $820.00
Reproducible: $750.00
CAD Files: $900.00
Additional Options
Additional Construction Sets: $70.00
|

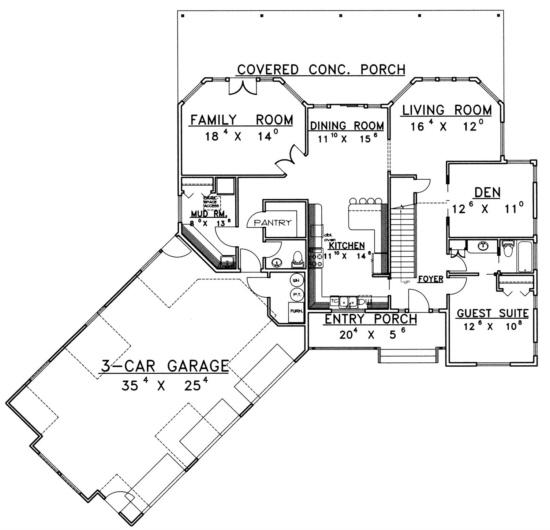

First Floor
Images Copyrighted by Designer

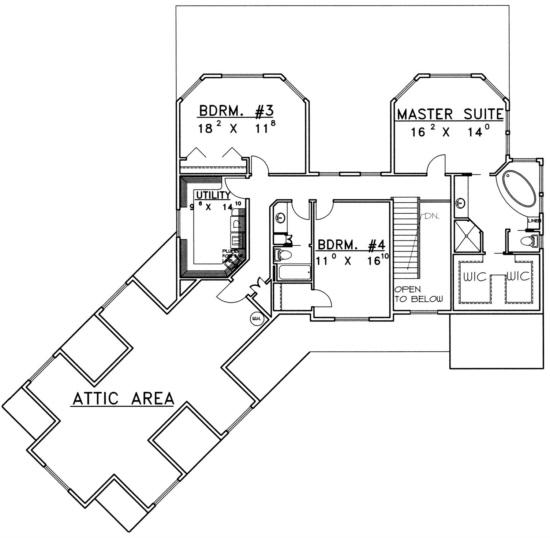

Second Floor
